Question 1

1. What is the humanoid robot hand Ability Hand, and what problem does it solve?

Accepted Answer

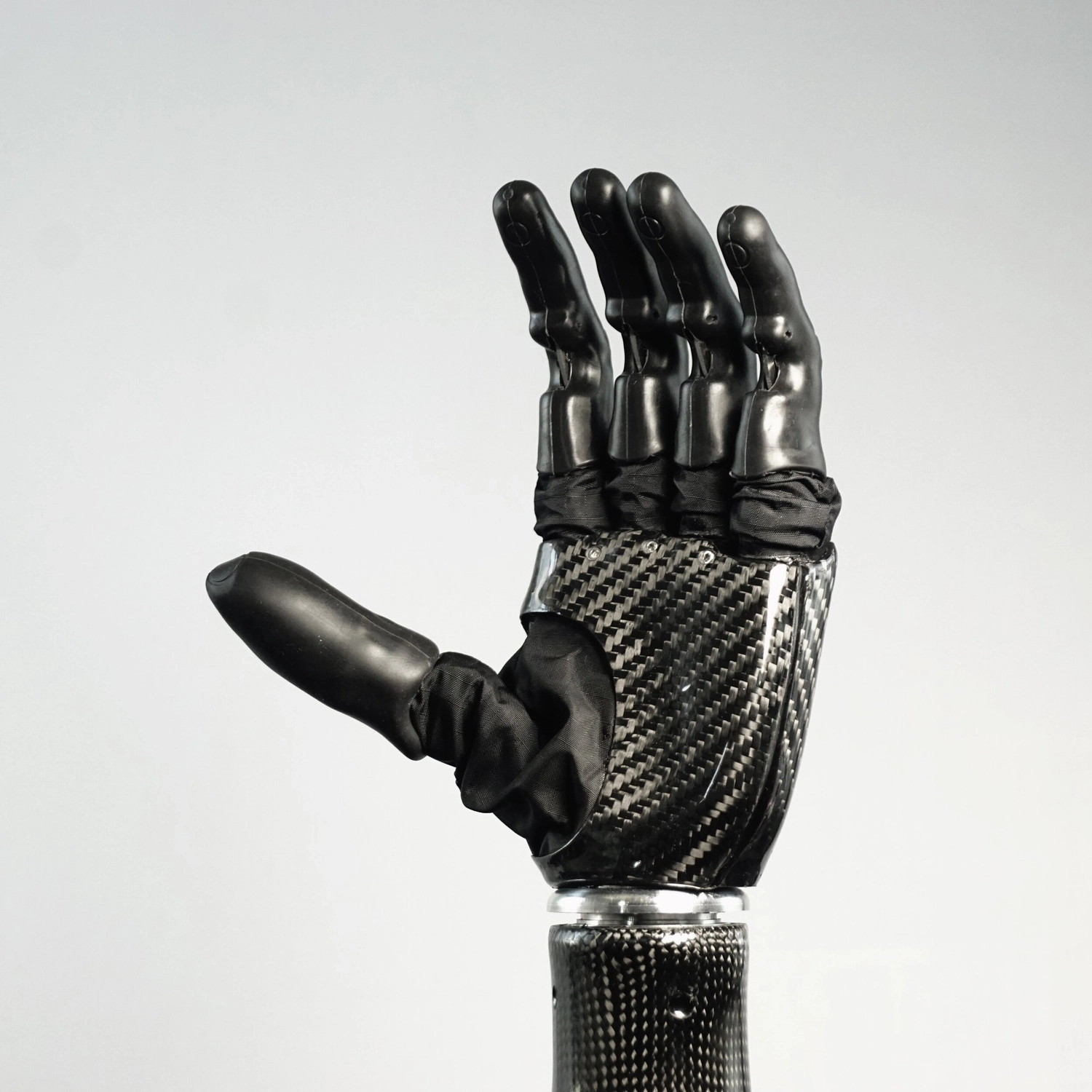

The Ability Hand is a bionic hand developed by Psyonic for upper-limb prostheses and robotic applications. According to Psyonic, it addresses limitations in dexterity and sensory feedback for users with limb differences and robotic manipulation tasks.

Question 2

2. What are the main capabilities and key features of Ability Hand?

Accepted Answer

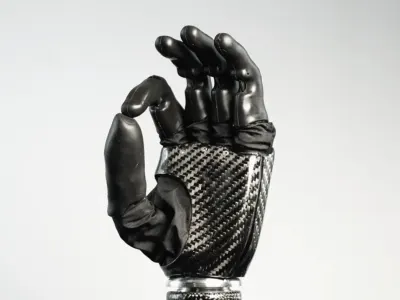

The Ability Hand features 6 brushless DC motors, multi-touch sensors in fingertips, and up to 32 grip patterns including power, pinch, and key grasps. Psyonic states it provides torque, velocity, and position control via API over Bluetooth, USB, or other protocols.

Question 3

3. Which industries and use cases is Ability Hand built for?

Accepted Answer

Ability Hand is used in prosthetics, research at institutions like NASA and Apptronik, and humanoid robotics for tasks requiring grasp strength and tactile feedback. Psyonic targets applications in service robotics and contact-rich manipulation.

Question 4

4. What is the grip strength and dexterity of Ability Hand?

Accepted Answer

According to Psyonic, Ability Hand offers max grip forces of 66N for power grasp, 9.3N for pinch, and 14N for key grasp, with finger speeds up to 375 degrees per second. It supports 6 degrees of freedom across five fingers.

Question 5

5. Is Ability Hand compatible with standard robotic arms?

Accepted Answer

Ability Hand includes electronic quick disconnect or short wrist options for integration. Psyonic's API and interfaces like BLE, I2C, UART, and RS485 enable compatibility with various robotic arms and platforms.

Question 6

6. Does Ability Hand support tactile sensing or force feedback?

Accepted Answer

Yes, Ability Hand has pressure sensors in thumb, index, and pinky fingers, streaming 30 touch values. Psyonic includes a vibration unit for haptic feedback proportional to grip pressure.

Question 7

7. What programming interfaces or SDKs are available for Ability Hand?

Accepted Answer

Psyonic provides an open API for torque, velocity, position control of motors, and encoder/touch data streaming. Resources include GitHub specs and Interface Control Document for Bluetooth, USB, and serial protocols.

Question 8

8. How does Ability Hand compare to other robotic end-effectors?

Accepted Answer

Ability Hand offers integrated multi-touch sensing and high grip strength in a lightweight design around 490g. According to Psyonic, it provides faster operation and sensory capabilities compared to typical prosthetic or robotic hands.

Question 9

9. What level of maintenance is required for Ability Hand?

Accepted Answer

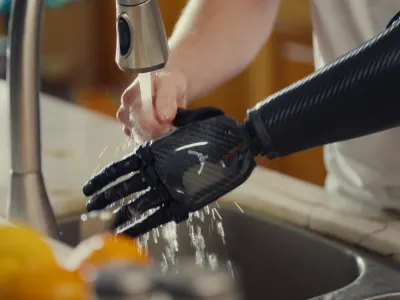

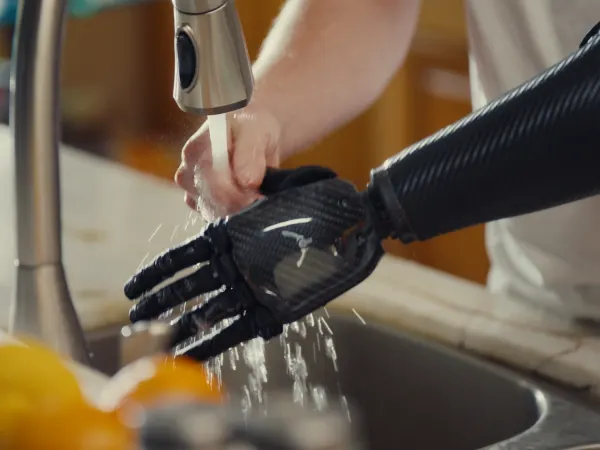

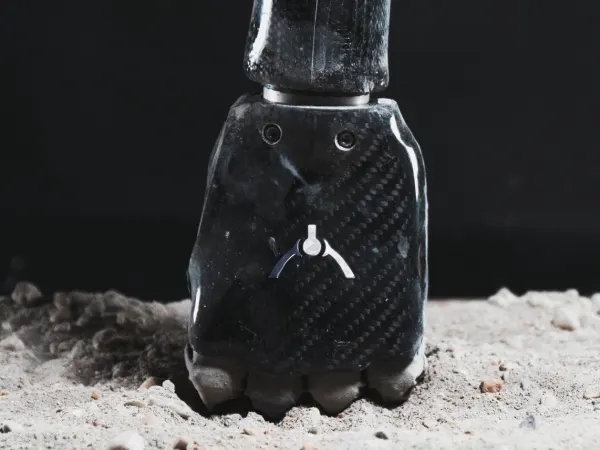

Psyonic designs Ability Hand for durability with water resistance, impact-tolerant fingers, and reinforced joints. Routine checks on batteries and assembly ensure full range of motion, with low maintenance for research and prosthetic use.

Question 10

10. Is Ability Hand currently available for commercial purchase?

Accepted Answer

Yes, Ability Hand is released for research users and available through suppliers like SPS Co. Psyonic offers versions for prosthetics and robotics, with production ongoing as of recent announcements.

Ability Hand

Robot Specifications

Hand Type

Intended Robot Type

Number of Fingers

Status

Thumb Config

Total DOF

DOF Per Finger

Independent Actuators

Underactuated Design

Palm Width (mm)

Hand Length (mm)

Hand Thickness (mm)

Weight (g)

Materials

Finger Link Segments

Finger Joint Types

Actuator Type

Actuator Location

Available Countries
