Alta X

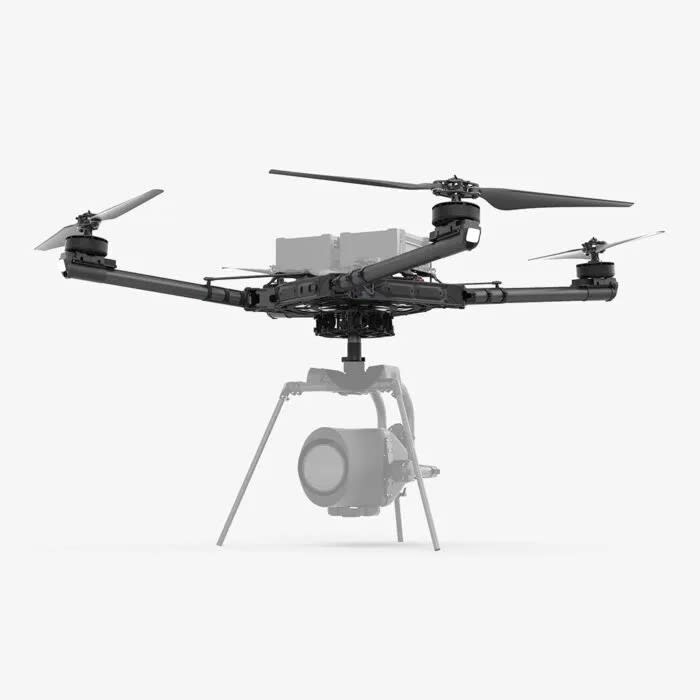

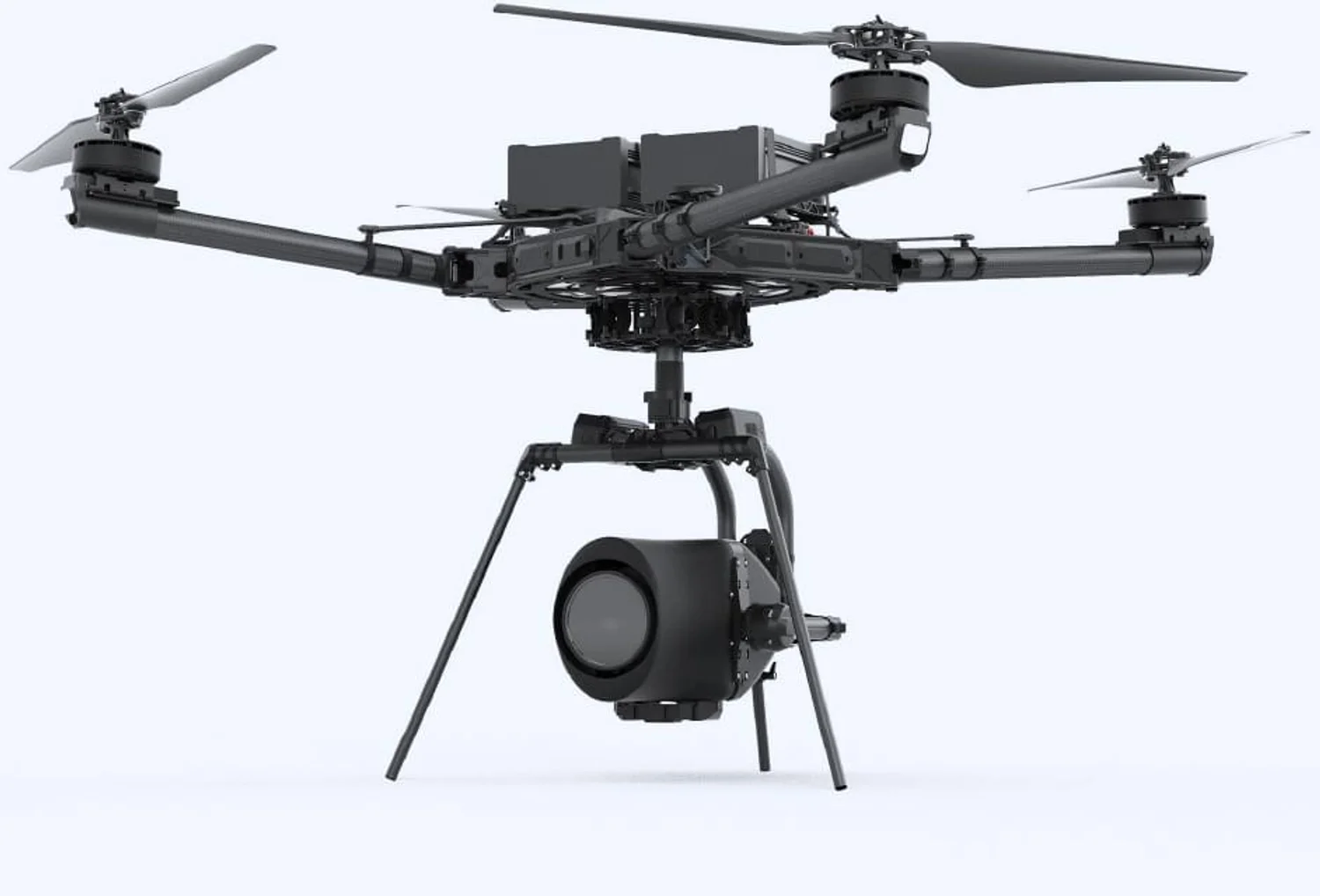

The Alta X by FREEFLY is a professional-grade heavy-lift quadcopter drone designed for demanding aerial cinematography, industrial inspections, and mapping applications. Featuring a unique folding design that reduces size by half for easy transport, it supports payloads up to 35 lbs with a maximum takeoff weight of 77 lbs. Powered by four high-efficiency X9 motors and 33-inch folding carbon fiber propellers, it achieves top speeds over 60 mph and flight times up to 50 minutes unloaded or 15-20 minutes with heavy payloads. ActiveBlade technology minimizes vibrations to one-fifth normal levels, ensuring stable footage. It integrates a custom PX4 flight controller with GPS/Glonass/Beidou/Galileo GNSS for precise manual, position, mission, and return-to-home modes. Boom-mounted orientation lights and FPV capability enhance situational awareness, while modular mounting options accommodate cinema cameras like ARRI Alexa or RED systems. Built for reliability, it operates from -20°C to 50°C with IP43-equivalent protection.
Robot Specifications
- Key FeaturesKey Features
- Top Features
- Other Features
Compatible Devices
None
Weight
10.86 kg (empty)
Warranty Info
1-year limited warranty
Available Colours
Black frame, customizable lights
Available Countries
USA,Canada,EU countries,Australia
User Interface
Radio controller, ground station software
Connectivity
MAVLink SDK, 900MHz/2.4GHz/5.8GHz telemetry
App Integration
Ground control station apps (QGroundControl)
Camera Resolution
Payload dependent (e.g., 44.7MP on Alexa Mini LF)
Charging Time
60-90 minutes (via EV-Peak or ISDT Dual Battery Charger)
Battery Pack
16,000 mAh (16Ah), 710.4 Wh (Total for dual 12S 44.4V configuration)
Battery Life
300-500 charge cycles (Standard for high-capacity LiPo flight packs)
Dimensions
2273 × 2273 × 434 mm (Unfolded with propellers); 877 mm diameter (Folded)
Speed
25 m/s (approx. 56 mph) - Top speeds up to 70 mph depending on payload and wind.
Runtime
50 minutes (Unloaded); ~22 minutes (20 lb payload); 11 minutes (35 lb max payload)
Sensors
GNSS (GPS, GLONASS, BeiDou, Galileo), Dual IMUs, Barometer, Orientation Lights, FPV Camera, RTK Ready (F9P GPS)

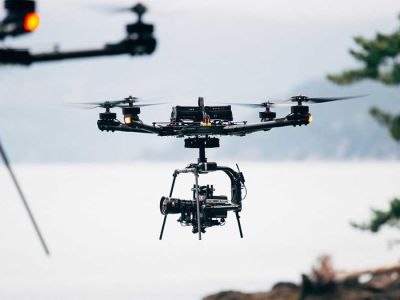

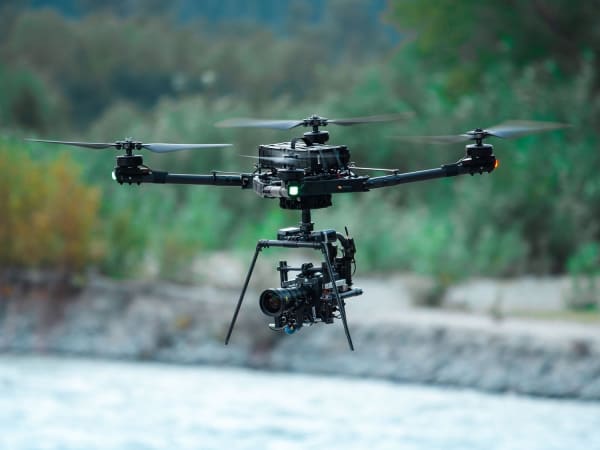

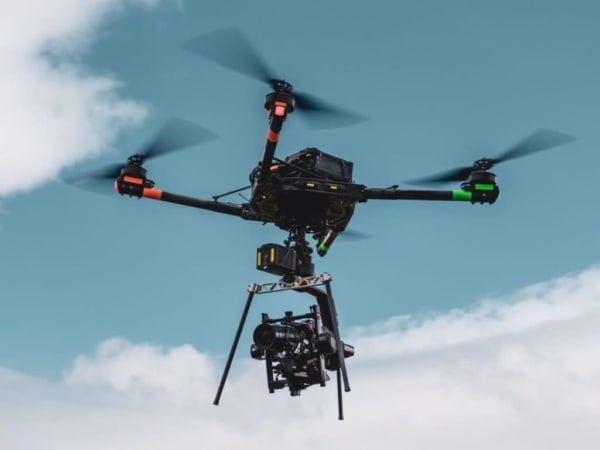

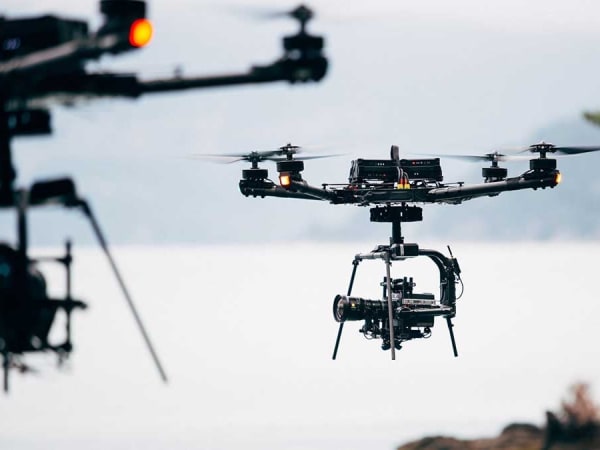

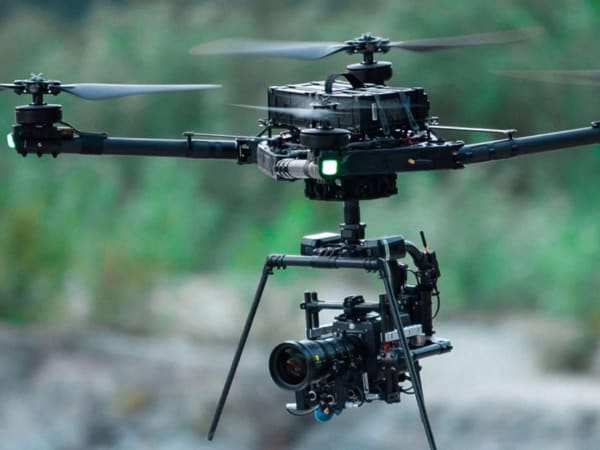

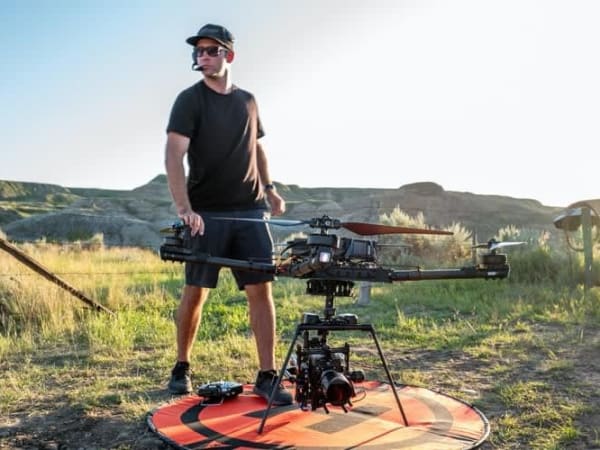

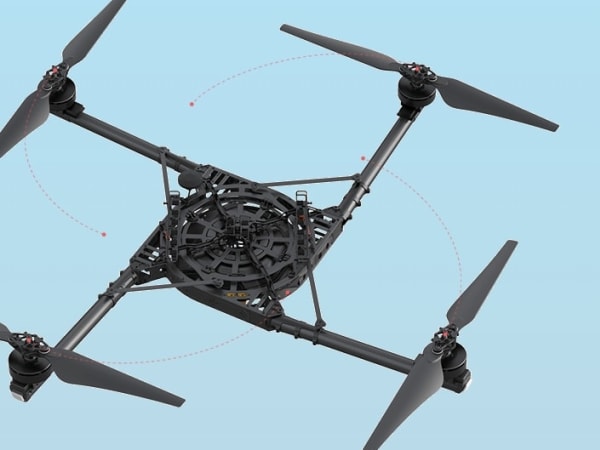

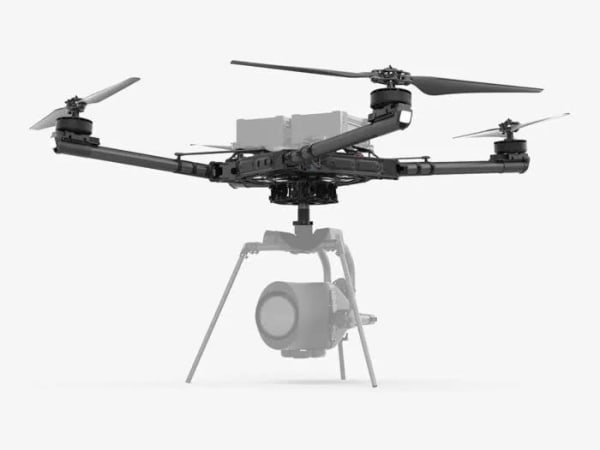

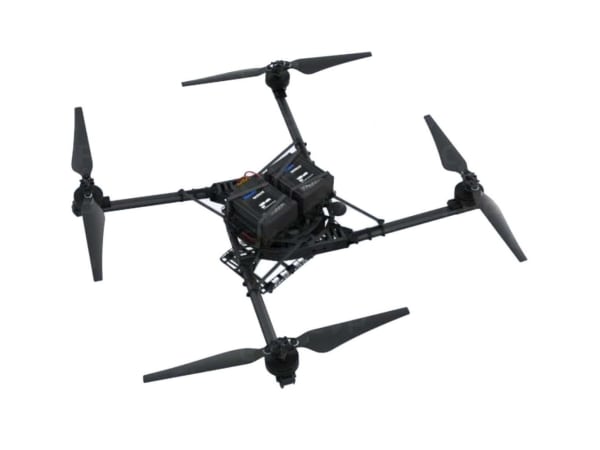

Image Gallery

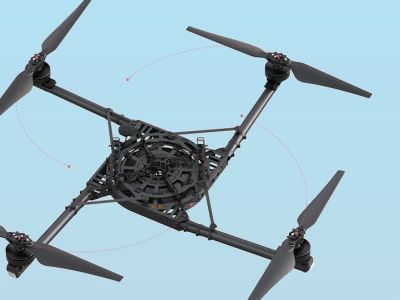

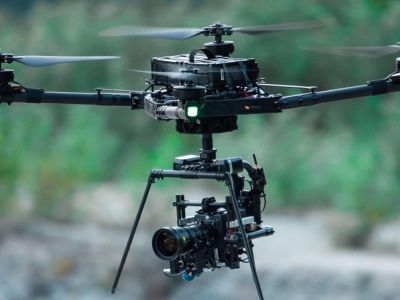

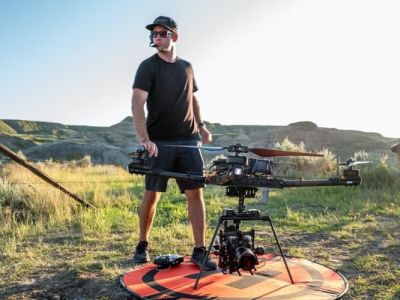

Below images are from FREEFLY's official sources
Review Videos
Watch expert reviews and demonstrations of this robot
More Robots from FREEFLY
Explore other robots from this manufacturer
More Drones
Discover more robots in the same category
Robots From Other Categories
Discover complementary robots from different categories that work well together
Frequently Asked Questions
Get answers to common questions about this robot
Q1. What is Alta X, and what problem is it designed to solve?
Alta X is a heavy-lift quadcopter drone manufactured by Freefly Systems. According to the manufacturer, it addresses needs for transporting payloads up to 35 lb in industrial applications requiring extended flight endurance and precise control.
Q2. What are the main capabilities and key features of Alta X?
Alta X features a folding frame for compact transport, ActiveBlade rotors for vibration reduction, and a custom PX4 flight control stack supporting modes like manual, position, and mission. It integrates quick-release payload systems and is RTK-ready with optional modules.
