Question 1

1. What is the humanoid robot hand The Pianists (RH56BFX), and what problem does it solve?

Accepted Answer

The Pianists (RH56BFX) is a dexterous robotic hand from Inspire Robotics, featuring 6 degrees of freedom and 12 joints. According to the manufacturer, it addresses needs for high-speed manipulation in tasks like gesture interaction and precise handling.

Question 2

2. What are the main capabilities and key features of The Pianists (RH56BFX)?

Accepted Answer

It offers high-speed finger motion, integrated force sensors, and sub-millimeter repeatability. The design uses linear servo actuators for simulating human-like grasping with hybrid force-position control, per Inspire Robotics documentation.

Question 3

3. Which industries and use cases is The Pianists (RH56BFX) built for?

Accepted Answer

Designed for humanoid robotics research, human-robot interaction, and lab-scale manipulation. According to the manufacturer, it suits gesture recognition, piano playing demos, and fine manipulation tasks.

Question 4

4. What is the grip strength and dexterity of The Pianists (RH56BFX)?

Accepted Answer

It provides thumb grip force around 6 N and four-finger combined force around 4 N, with 0.5 N force resolution. Dexterity includes 6 DOF, 12 joints, and repeat positioning accuracy of 0.2 mm, as stated by resellers.

Question 5

5. Is The Pianists (RH56BFX) compatible with standard robotic arms?

Accepted Answer

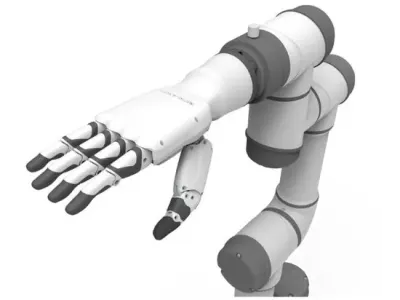

Yes, it integrates with robotic arms via RS485 interface and 24 V power. Inspire Robotics notes compatibility with humanoid platforms and ROS plug-ins for broader system use.

Question 6

6. Does The Pianists (RH56BFX) support tactile sensing or force feedback?

Accepted Answer

Yes, it includes 6 integrated force sensors for real-time tactile feedback and hybrid control. According to product specs, force resolution is 0.5 N, enabling precise grip adjustment.

Question 7

7. What programming interfaces or SDKs are available for The Pianists (RH56BFX)?

Accepted Answer

It supports RS485 communication and ROS with plug-ins. The manufacturer provides serial parameters like 115200 bps for integration in robotic systems.

Question 8

8. How does The Pianists (RH56BFX) compare to other robotic end-effectors?

Accepted Answer

Compared to RH56DFX series, it prioritizes speed over grip force, per Inspire Robotics. It emphasizes fast articulation for expressive tasks versus higher-force variants.

Question 9

9. What level of maintenance is required for The Pianists (RH56BFX)?

Accepted Answer

Features power-off self-locking to hold positions without recalibration. Routine checks on motors and sensors are typical, as with similar dexterous hands.

Question 10

10. Is The Pianists (RH56BFX) currently available for commercial purchase?

Accepted Answer

Yes, listed by resellers with delivery times of 5-6 months. Inspire Robotics offers it through their store and distributors.

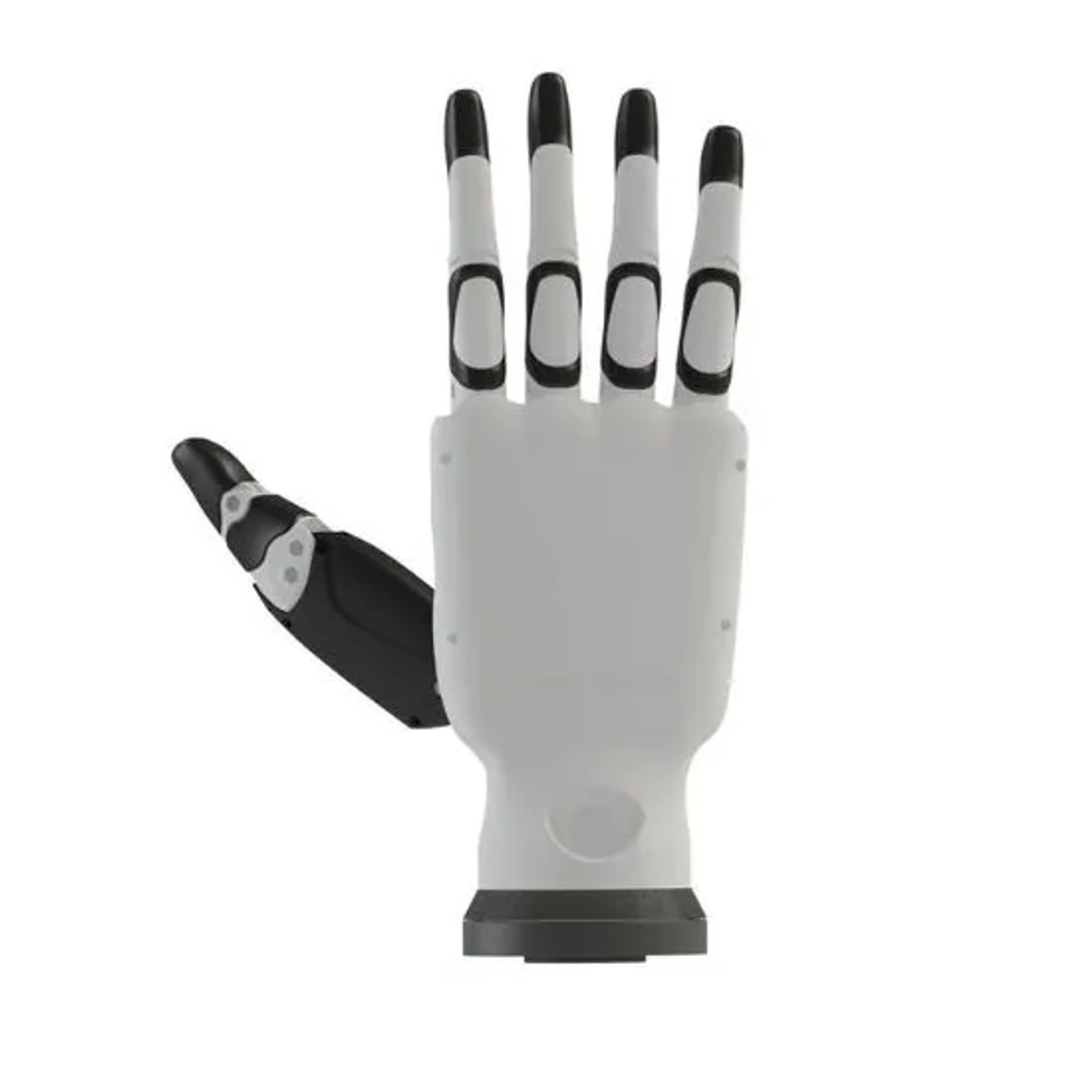

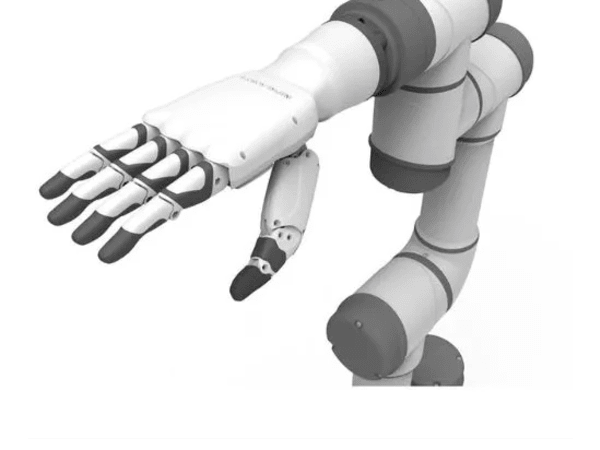

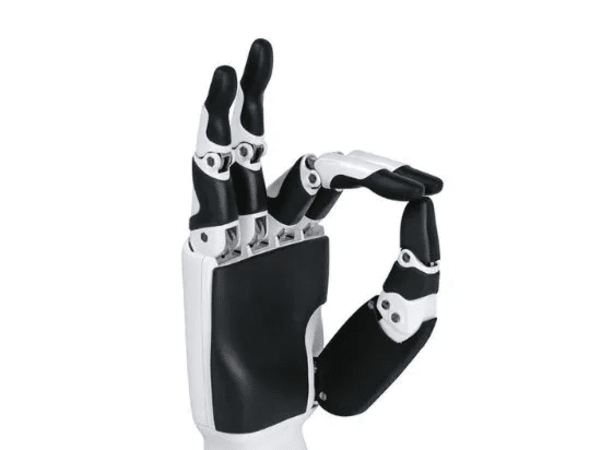

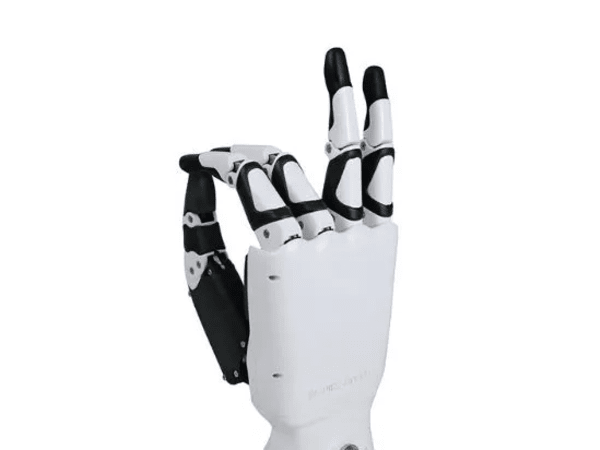

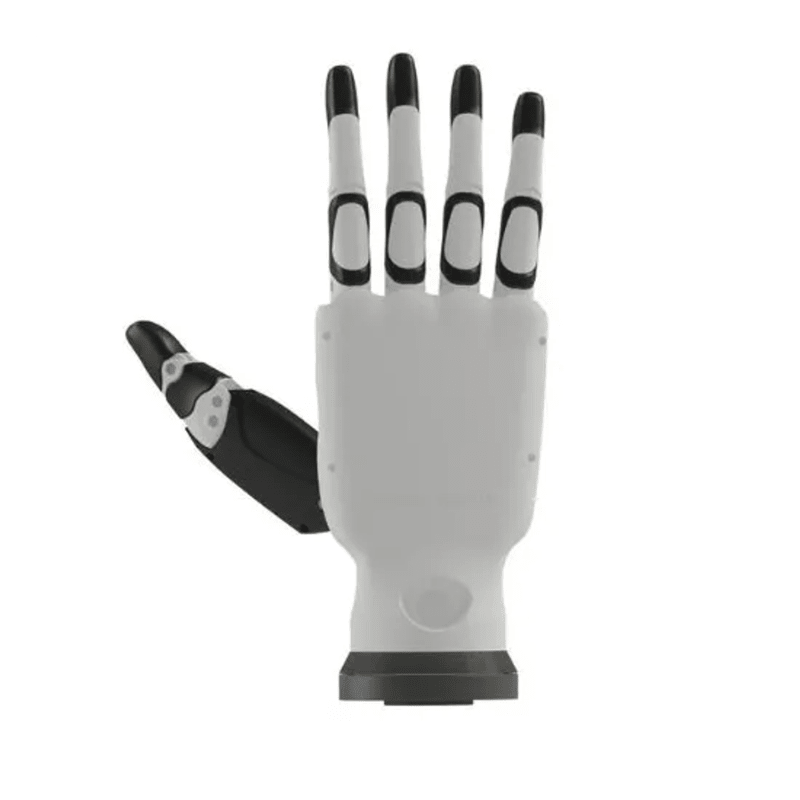

The Pianists (RH56BFX)

Robot Specifications

Hand Type

Intended Robot Type

Number of Fingers

Status

Thumb Config

Total DOF

DOF Per Finger

Independent Actuators

Underactuated Design

Palm Width (mm)

Hand Length (mm)

Hand Thickness (mm)

Weight (g)

Materials

Finger Link Segments

Finger Joint Types

Actuator Type

Actuator Location

Available Countries

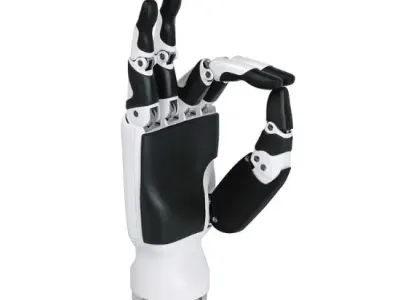

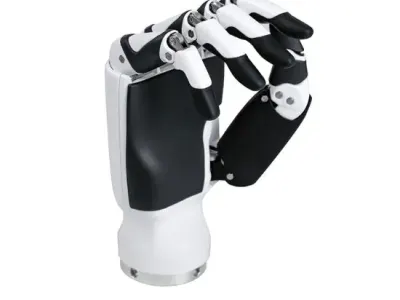

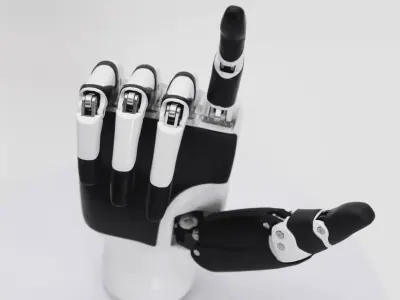

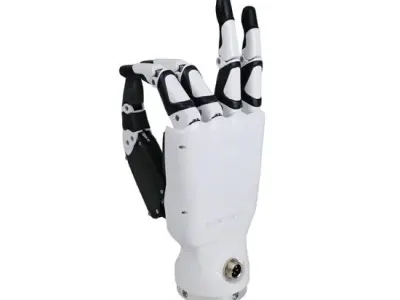

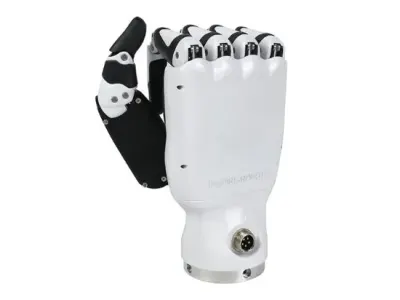

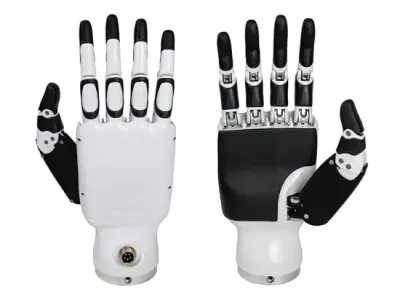

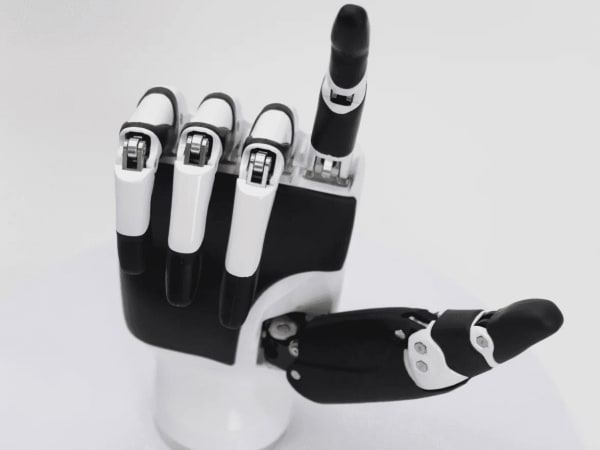

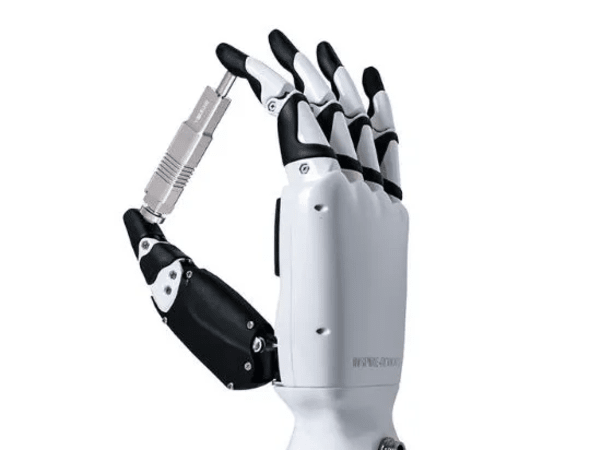

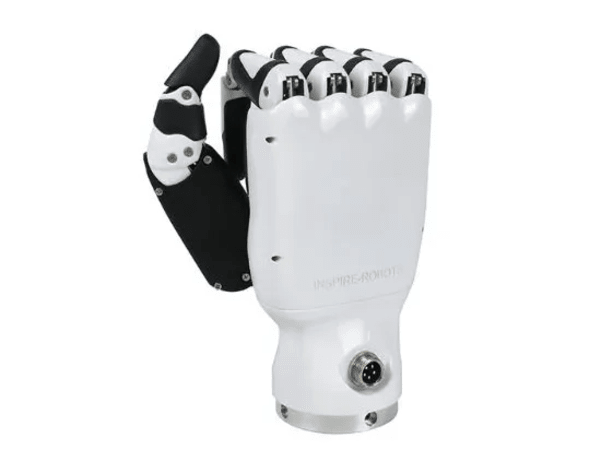

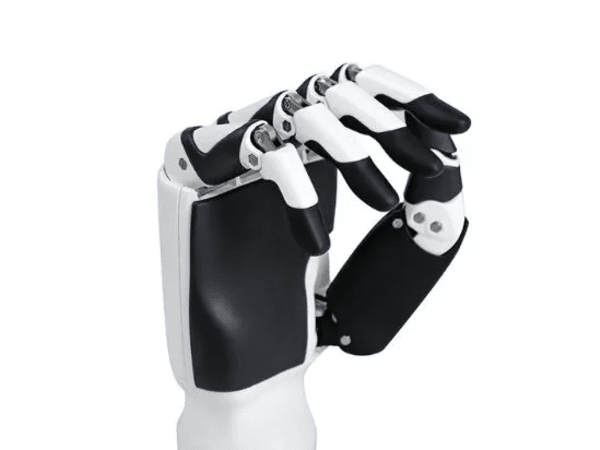

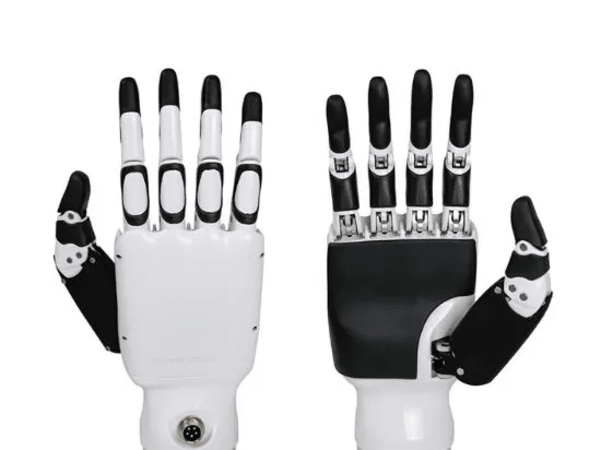

Image Gallery

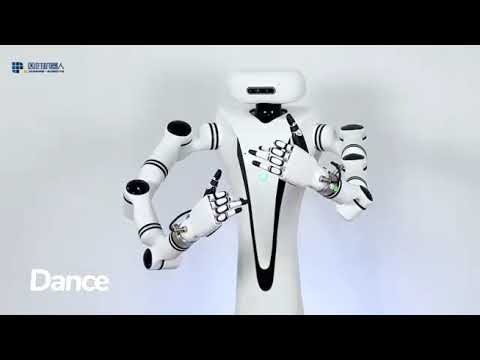

Review Videos

More Robots from Inspire Robotics

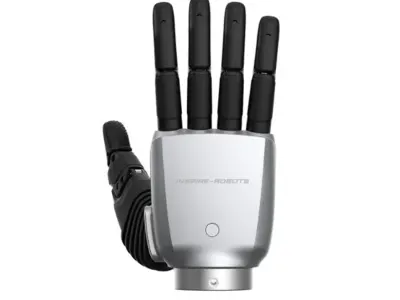

RH56F1
