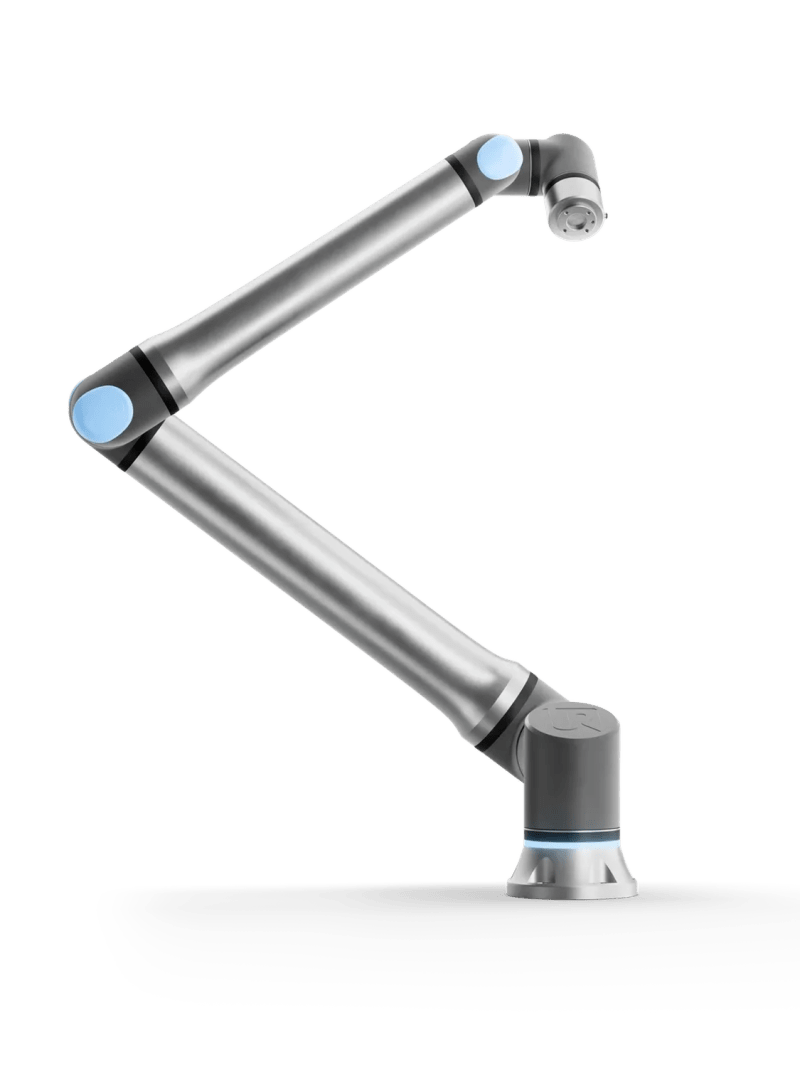

UR8 Long
The UR8 Long is a collaborative robot (cobot) from Universal Robots featuring a 1750 mm reach and 8 kg payload in a compact, lightweight design with 30% less mass than the UR20. It excels in space-constrained applications like welding complex weldments, pick & place, quality inspection, precision dunnage picking, and multi-point inspections. Advanced joint architecture (2-1-3), accurate torque control, and MotionPlus enable precise linear motion, high-speed acceleration, and smooth trajectories. It supports PolyScope 5 and PolyScope X software on a 12-inch touchscreen, with intuitive freedrive programming. Suitable for mounting on gantries, rails, or overhead, it offers 30% faster cycle times, IP65 rating, and cleanroom Class 4 certification for industries including automotive and fabricated metals.
Robot Specifications
- Key FeaturesKey Features
- Top Features
- Other Features
Dimensions
Control Box: 460 x 449 x 254 mm; Robot Footprint: Ø204 mm
Weight
44.7 kg
Speed
5 m/s TCP
Runtime
24 hours continuous
Modbus TCP, Ethernet/IP, PROFINET, USB
Built-in 6-axis Force/Torque sensor at the tool flange (±150 N, ±10 Nm)
Yes via UR Cloud
Available Countries
Global
Warranty Info
2 years standard
Industry
Automotive
Industrial Robot Category
Articulated Robots
Payload Capacity
8 kg (Up to 10 kg at reduced performance)

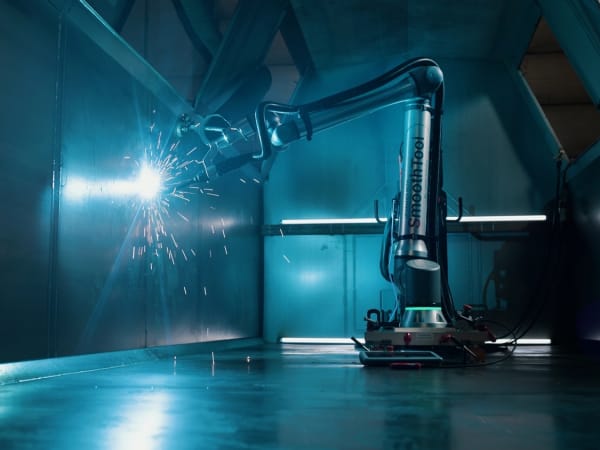

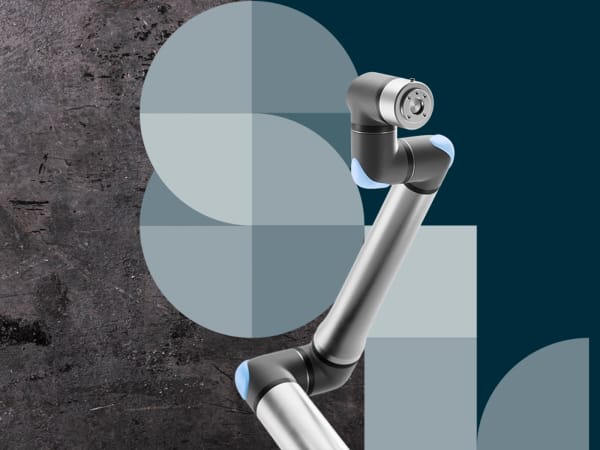

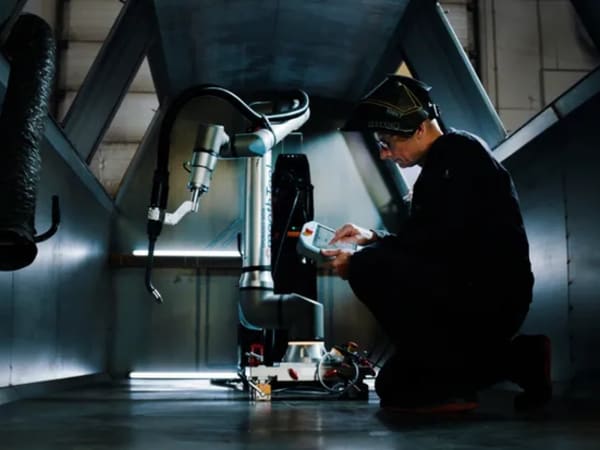

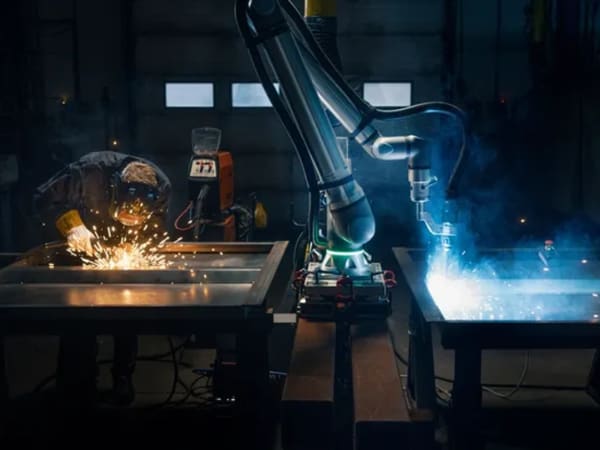

Image Gallery
Below images are from Universal Robots's official sources
Review Videos
Watch expert reviews and demonstrations of this robot
More Robots from Universal Robots
Explore other robots from this manufacturer
More Robots
Discover more robots in the same category
Robots From Other Categories
Discover complementary robots from different categories that work well together
Frequently Asked Questions
Get answers to common questions about this robot
Q1. What is UR8 Long, and what problem is it designed to solve?
UR8 Long is a collaborative robot arm developed by Universal Robots with extended reach for space-constrained industrial tasks. According to the manufacturer, it addresses challenges in setups requiring long reach, stability, and precision, such as welding and inspections in compact environments.
Q2. What are the main capabilities and key features of UR8 Long?
UR8 Long supports applications including welding, pick-and-place, and quality inspection. Key features per Universal Robots include compatibility with PolyScope 5 and X software, enhanced freedrive for manual guidance, and integration with MotionPlus for precise motion control.
