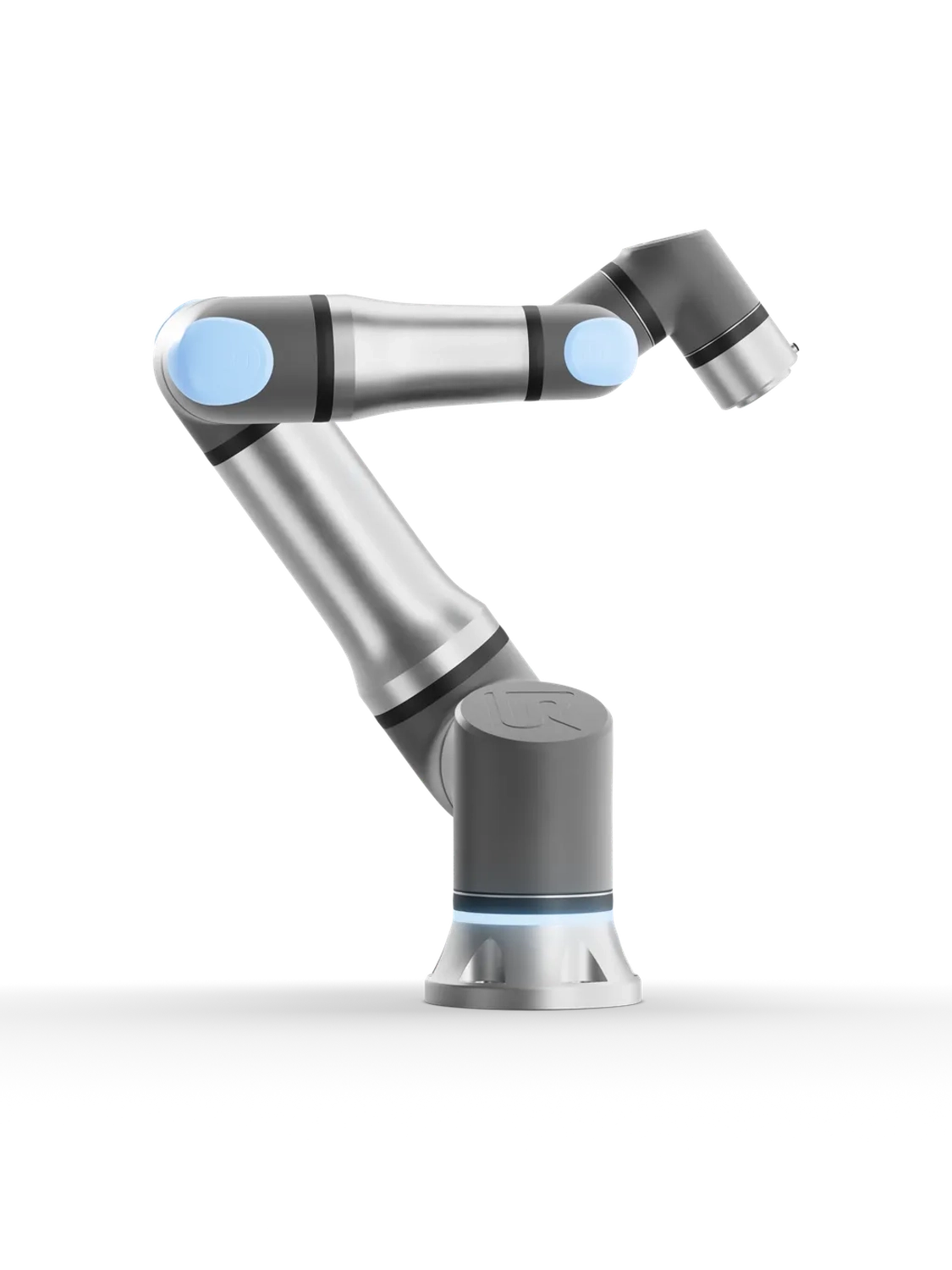

UR18
The UR18 is a compact heavy-duty collaborative robot (cobot) from Universal Robots, combining strength and agility with an 18 kg payload and 950 mm reach. It supports larger end effectors for heavier loads while remaining lightweight at 39.2 kg for easy mounting on standard gantry systems. With max TCP speed of 4 m/s, it's ideal for fast pick-and-place, assembly, and material handling in logistics, automotive, food & beverage. Features include built-in force/torque sensing (±150 N force, ±10 Nm torque), PolyScope GUI on 12" touchscreen, IP65 rating, and advanced motion like OptiMove. Six degrees of freedom with ±0.05 mm repeatability ensure precision. Safety certified to PLd Category 3 (EN ISO 13849-1), UL1740 for human-robot collaboration. Flexible programming, connectivity via Ethernet/IP, PROFINET, and modular I/O enable quick integration without safety fencing.
Robot Specifications
- Key FeaturesKey Features
- Top Features
- Other Features
Dimensions
Footprint: Ø 204 mm; Reach: 950 mm
Weight
39.2 kg
Speed
4 m/s
Runtime
24 hours continuous
MODBUS TCP, Ethernet/IP, PROFINET, USB
12" Touchscreen Teach Pendant with graphical UI
Integrated 6-axis force/torque sensor at the tool flange (±150 N / ±10 Nm)
UR Cloud
Available Countries
Global
Warranty Info
12 months
Industry
Automotive, Food & Beverage
Industrial Robot Category
Articulated Robots
Payload Capacity
18 kg

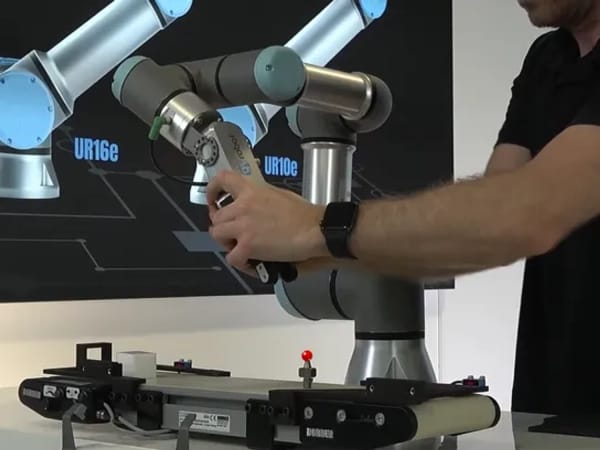

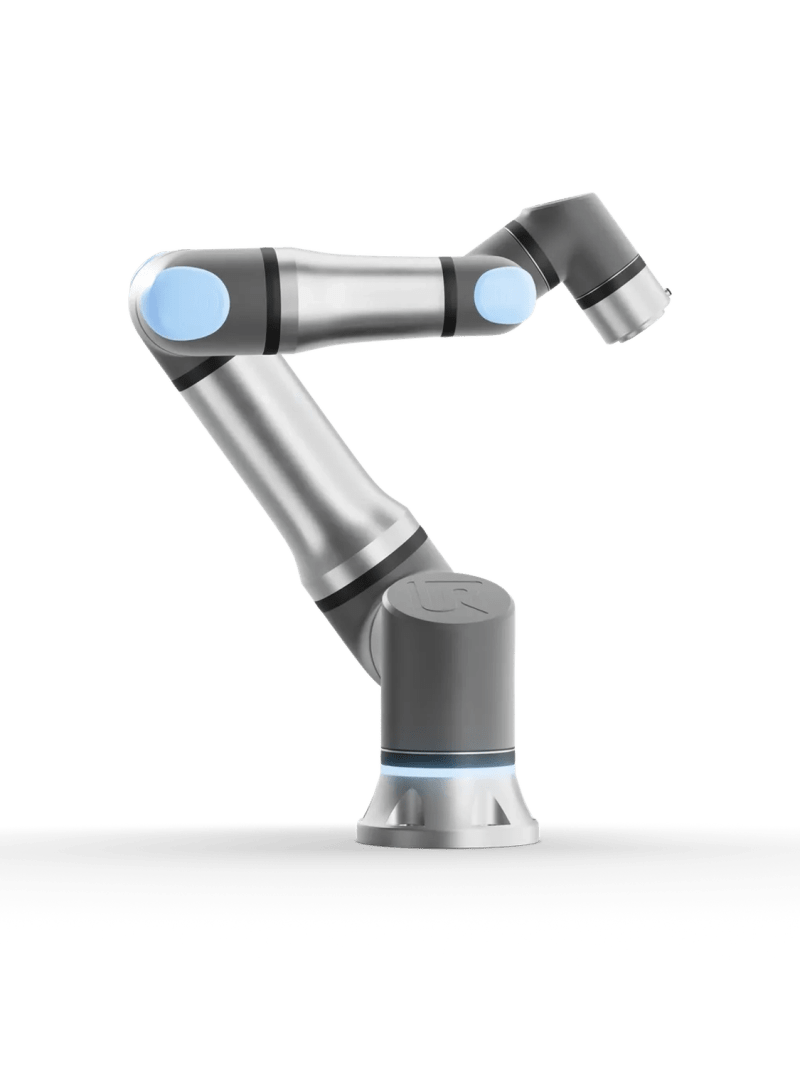

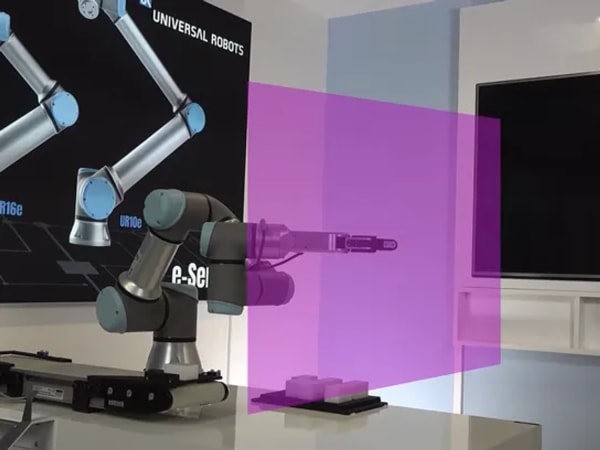

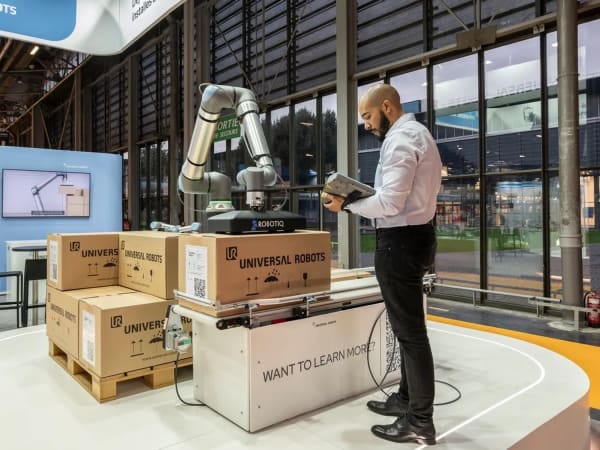

Image Gallery
Below images are from Universal Robots's official sources
Review Videos
Watch expert reviews and demonstrations of this robot
More Robots from Universal Robots
Explore other robots from this manufacturer
More Robots
Discover more robots in the same category
Robots From Other Categories
Discover complementary robots from different categories that work well together
Frequently Asked Questions
Get answers to common questions about this robot
Q1. What is UR18, and what problem is it designed to solve?
UR18 is a collaborative robot arm from Universal Robots with an 18 kg payload capacity. According to the manufacturer, it addresses needs for heavy lifting in compact spaces, such as pick-and-place tasks in constrained manufacturing environments.
Q2. What are the main capabilities and key features of UR18?
UR18 features a 950 mm reach, force sensing, and compliance with safety standards like EN ISO 13849-1. The manufacturer states it supports larger end effectors for heavy payloads while enabling collaborative operation without safety barriers.
