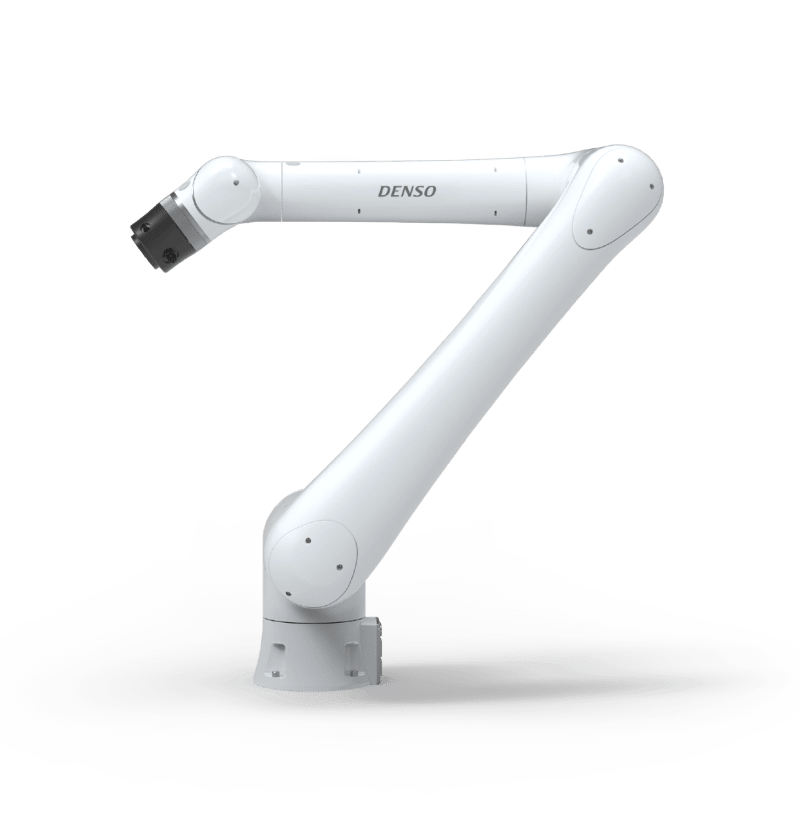

COBOTTA PRO/HSR Series
The COBOTTA PRO/HSR Series is a high-speed collaborative robot from Denso, blending industrial productivity with human-safe operation. Models 900 and 1300 offer payloads of 6kg and 12kg, reaches of 900mm and 1300mm, TCP speeds up to 2500mm/s, and repeatability of ±0.03mm/±0.04mm. Equipped with torque sensors on all axes, it enables safe collaboration via continuous monitoring of torques and speeds. Safety features include area scanners for speed reduction near humans and optional touch-sensitive soft covers. Powered by Beckhoff TwinCAT for real-time control via compact CRC9 controller, it supports AI-based imitative learning and Blockly for intuitive programming. Ideal for assembly, inspection, pick-and-place in electronics, medical, pharma, food sectors. HSR integration allows 24/7 high-speed tasks with vibration suppression and heat dissipation. Cleanroom compatible (Class 5), IP54 rated, mountable on floor, wall, ceiling
Robot Specifications
- Key FeaturesKey Features
- Top Features
- Other Features
Dimensions
Arm length 908 mm; Max Reach 1,066 mm
Weight
28.5-41kg
Speed
2,100 mm/s (900) / 2,500 mm/s (1300)
Runtime
24/7 continuous
Gigabit Ethernet, RS-485
Smart TP (Touch Pendant) or tablet-based interface for graphical programming
Yes via Ethernet
Available Countries
Global,Europe,Asia,Americas
Warranty Info
1-2 years standard
Industry
Electronics, Pharma
Payload Capacity
6/12kg
Proprietary high-rigidity torque sensors on all 6 axes; optional touch-sensing soft cover (capacitive/collision); absolute encoders.
Industrial Robot Category
6-Axis Articulated Collaborative Robot (The HSR designation refers to Denso's separate High-Speed SCARA series, though COBOTTA PRO leverages HSR-level motor technology).

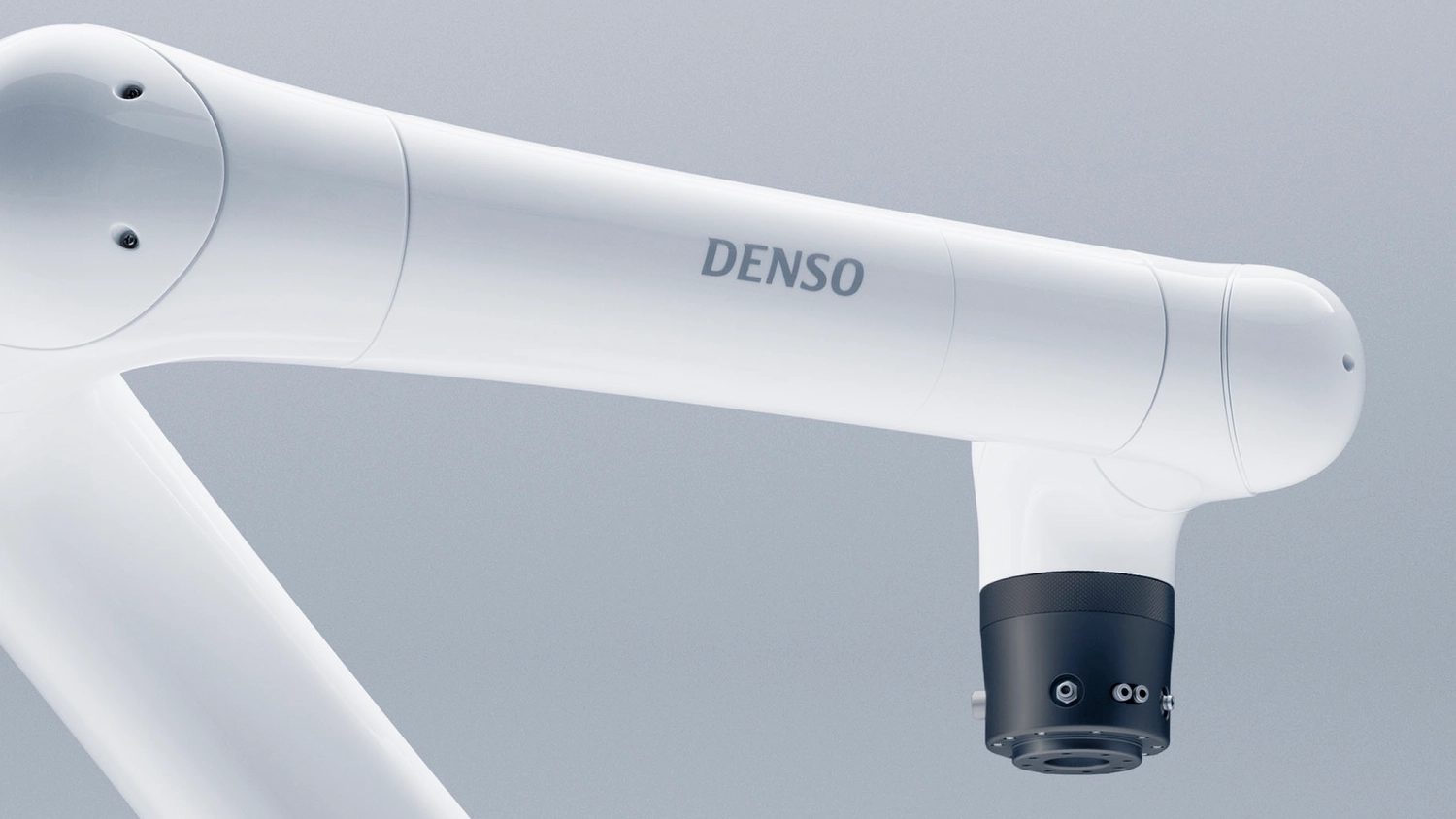

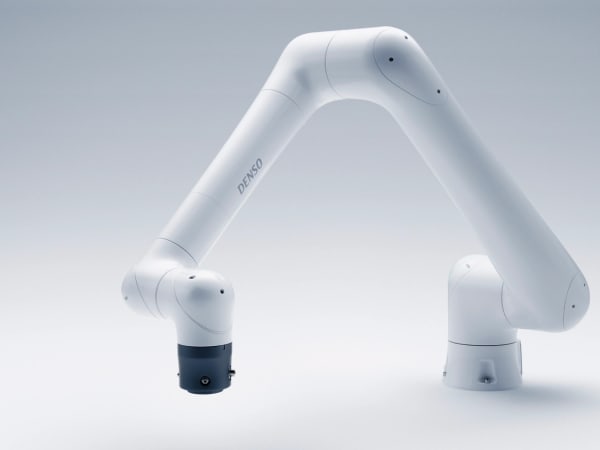

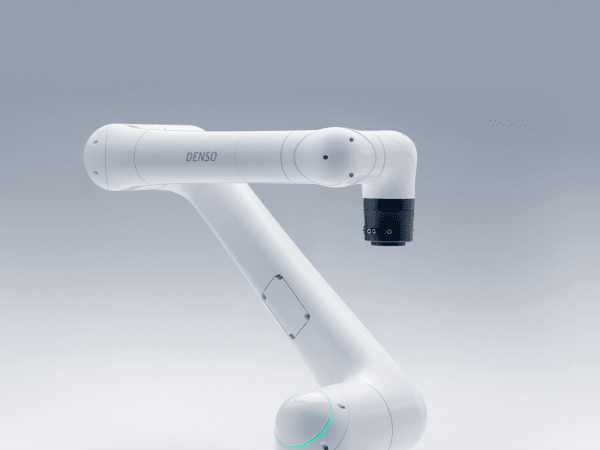

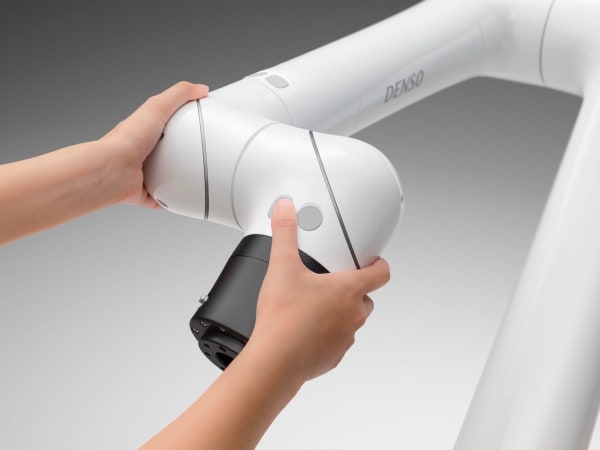

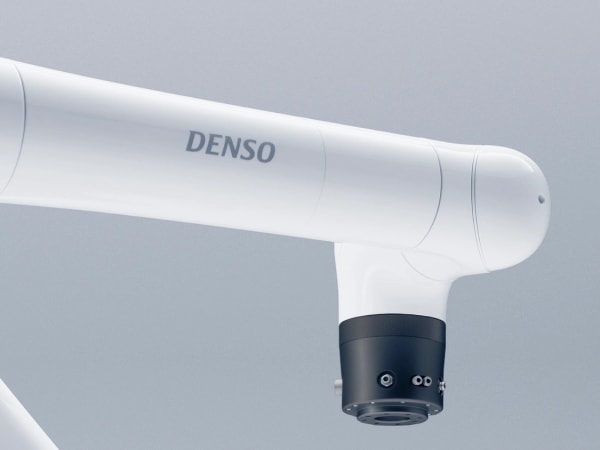

Image Gallery
Below images are from Denso's official sources

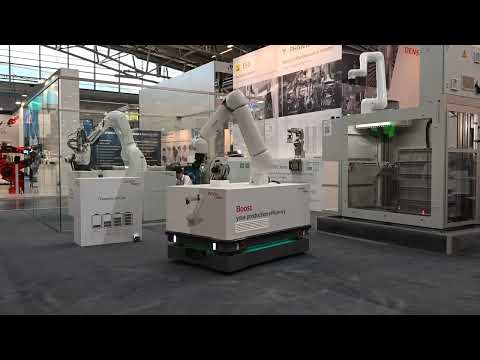

Review Videos
Watch expert reviews and demonstrations of this robot
More Robots
Discover more robots in the same category
Robots From Other Categories
Discover complementary robots from different categories that work well together
Frequently Asked Questions
Get answers to common questions about this robot
Q1. What is COBOTTA PRO/HSR Series, and what problem is it designed to solve?
The COBOTTA PRO series consists of collaborative robots from DENSO Robotics, with HSR referring to a related SCARA robot design. According to the manufacturer, it addresses the challenge of balancing high-speed productivity with human-robot safety in tasks like assembly and inspection.
Q2. What are the main capabilities and key features of COBOTTA PRO/HSR Series?
Key capabilities include high-speed operation up to industry-leading levels for cobots, torque monitoring on all axes, and optional touch-sensitive covers for collision detection. The HSR variant supports continuous operation in high-speed pick-and-place applications, per DENSO specifications.
