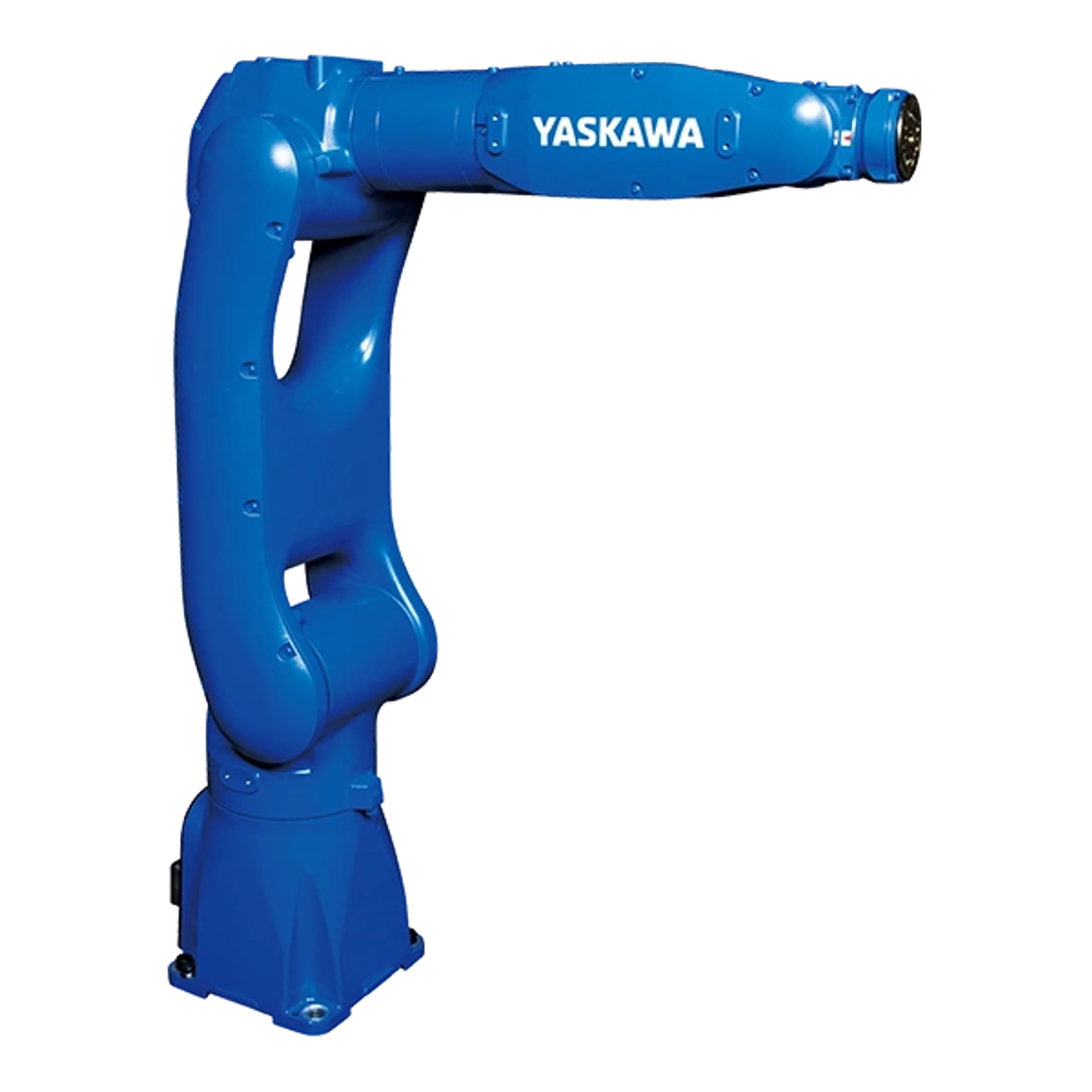

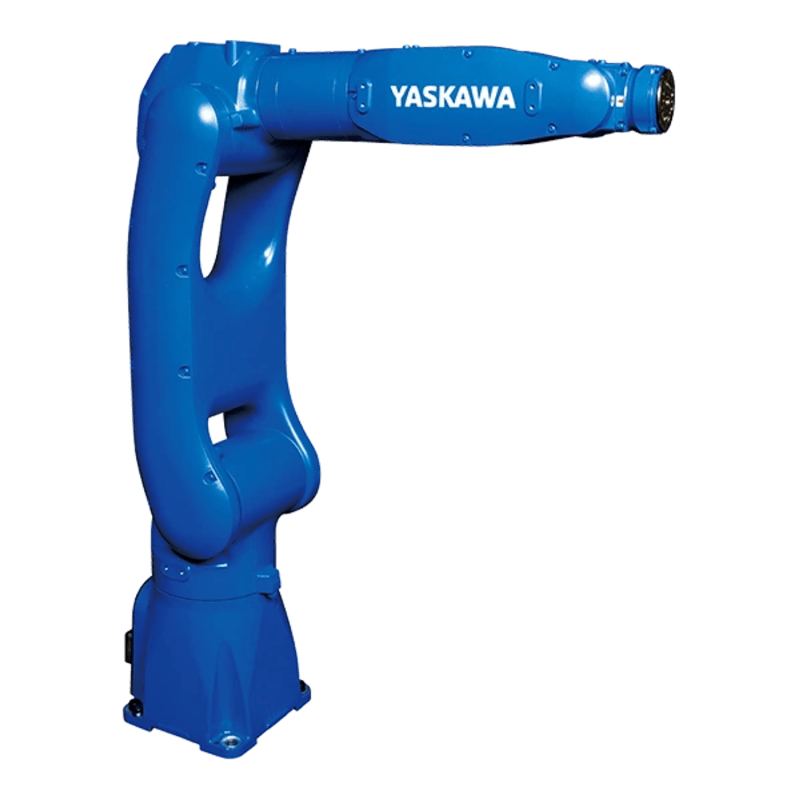

MOTOMAN-GP10
The MOTOMAN-GP10 is a compact, high-precision 6-axis industrial robot with 10 kg payload and 1101 mm reach, designed for space-saving automation. It features a slim arm, full-cover structure with built-in motors and cables to minimize interference, and IP67 protection on all axes for harsh environments. High rigidity from topology analysis, optimal motors, and absolute accuracy correction enable ±0.015 mm repeatability for delicate tasks like small parts assembly and precise loading/unloading. Suitable for mounting on floor, ceiling, wall, or AGVs/AMRs, it supports high-speed motion with new servo drives, easy maintenance, and versatile applications including handling, assembly, machine tending, and inspection in limited spaces
Robot Specifications
- Key FeaturesKey Features
- Top Features
- Other Features
Dimensions
Reach (Max): 1101 mm Footprint: Slim-arm design compatible with GP7/8 mounting spaces.
Weight
59 kg
Runtime
Industrial duty cycle (continuous 24/7 operation supported).
Ethernet, Fieldbus
No
Available Countries
Global (EU,Asia,Americas)
Warranty Info
12-24 months standard
Industry
Assembly, Material Handling, Machine Tending, Inspection, Packaging
Industrial Robot Category
Articulated Robots
Payload Capacity
10 kg
Speed
S-axis (Turning): 300°/s L-axis (Lower Arm): 250°/s U-axis (Upper Arm): 340°/s R-axis (Wrist Roll): 500°/s B-axis (Wrist Pitch/Yaw): 470°/s T-axis (Wrist Twist): 800°/s
Absolute encoders; built-in Ethernet (Cat6A) for seamless 2D/3D vision sensor and camera integration; optional built-in force sensor cable.

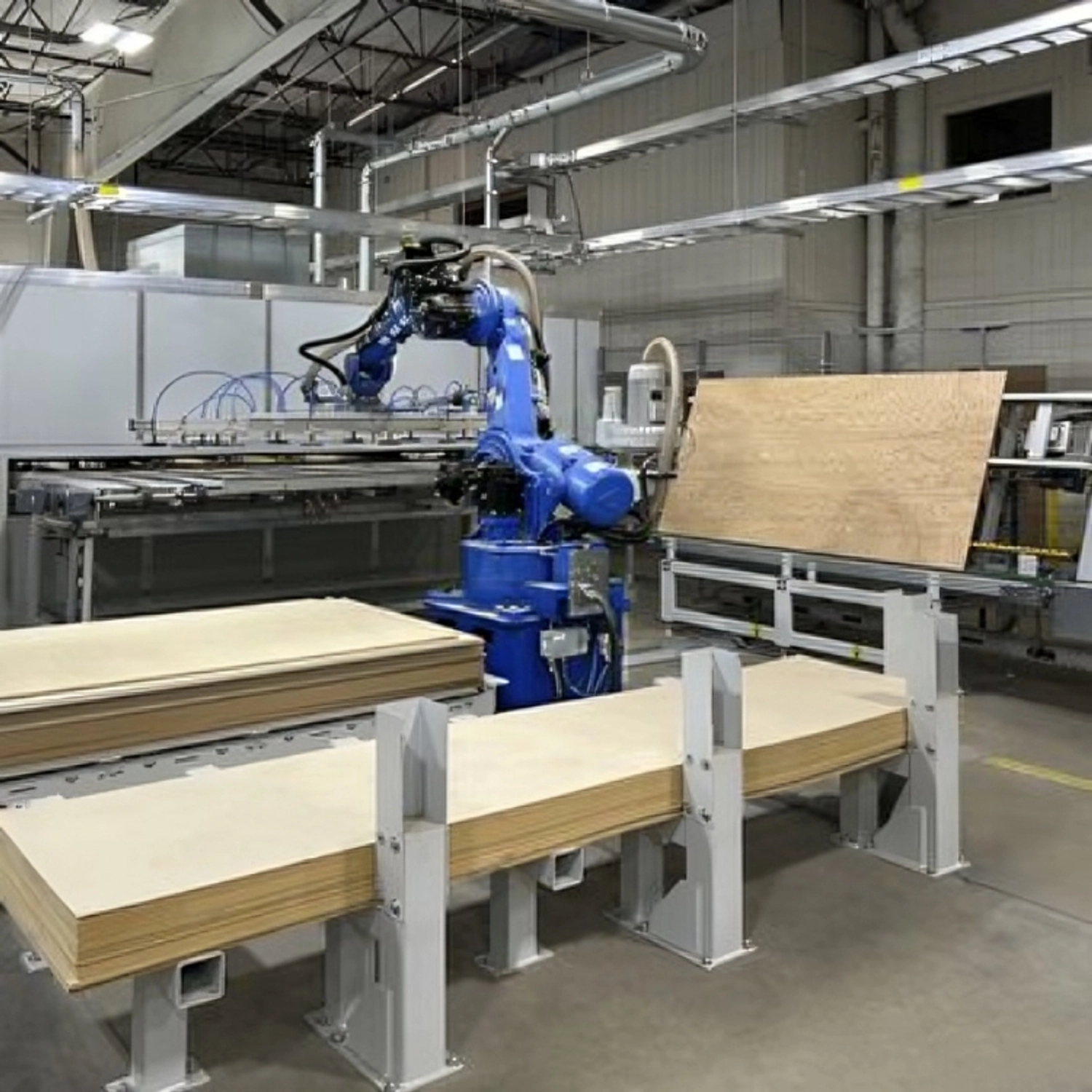

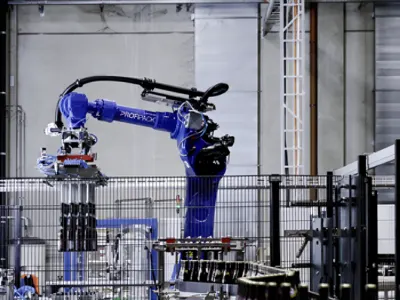

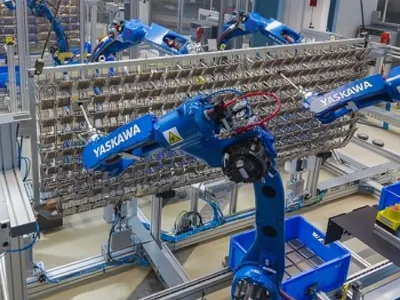

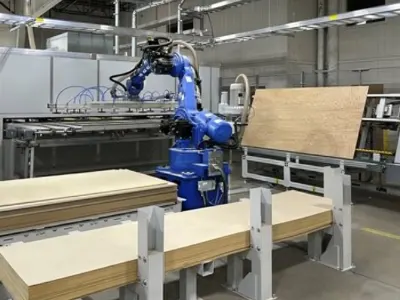

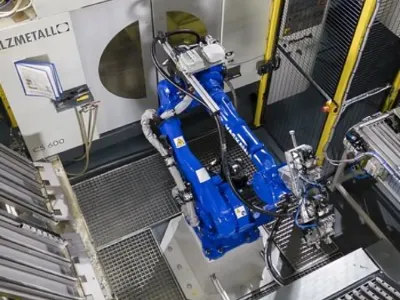

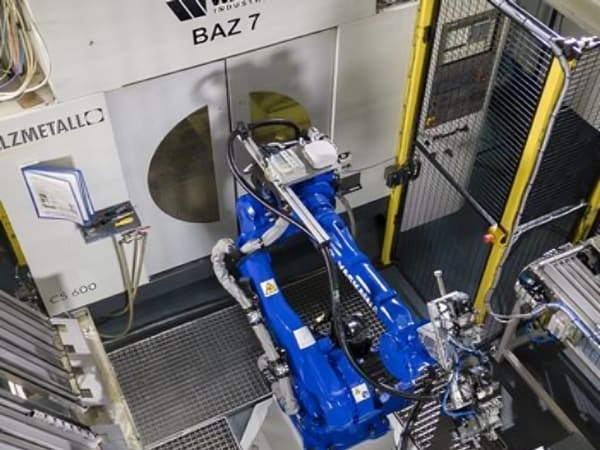

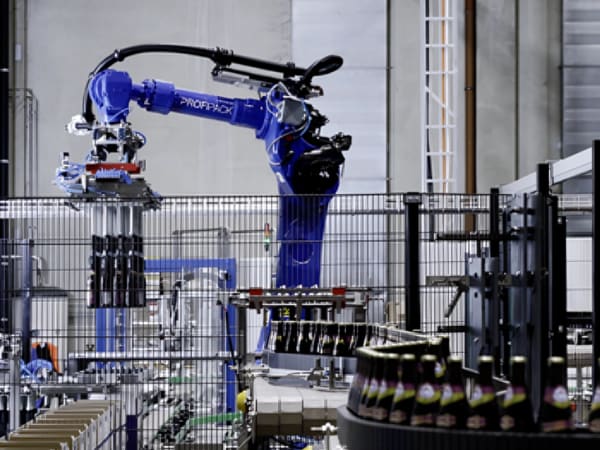

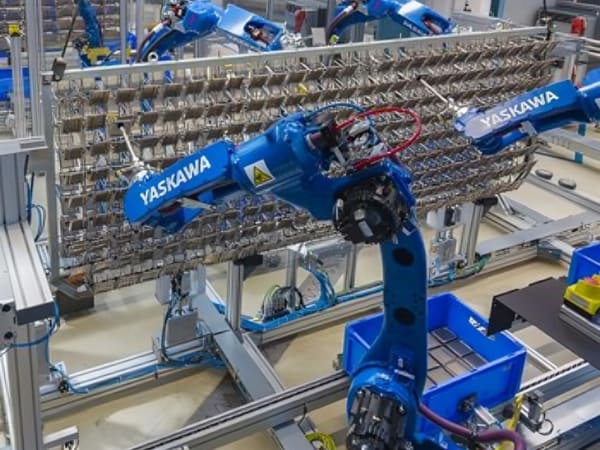

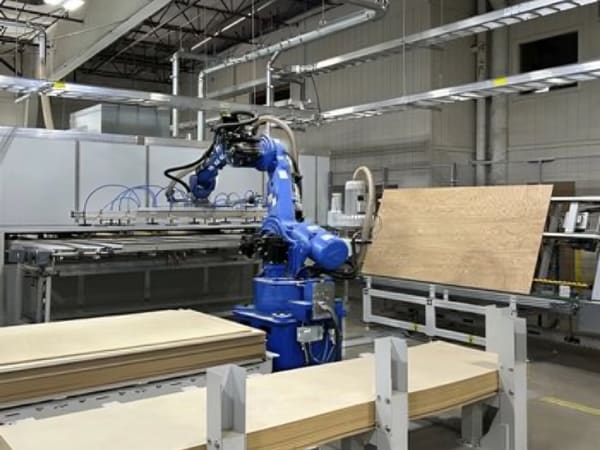

Image Gallery
Below images are from Yaskawa's official sources
Review Videos
Watch expert reviews and demonstrations of this robot
More Robots from Yaskawa
Explore other robots from this manufacturer
More Robots
Discover more robots in the same category
Robots From Other Categories
Discover complementary robots from different categories that work well together
Frequently Asked Questions
Get answers to common questions about this robot
Q1. What is MOTOMAN-GP10, and what problem is it designed to solve?
The MOTOMAN-GP10 is a 6-axis industrial robot from Yaskawa's GP series. According to the manufacturer, it addresses space constraints in automation by providing extended reach in a compact footprint for handling and assembly tasks.
Q2. What are the main capabilities and key features of MOTOMAN-GP10?
Key features include a slim arm design, built-in motors and cables for reduced interference, IP67 protection on all axes, and high-precision operation via absolute accuracy correction. It supports mounting on floor, wall, ceiling, or AGVs.
