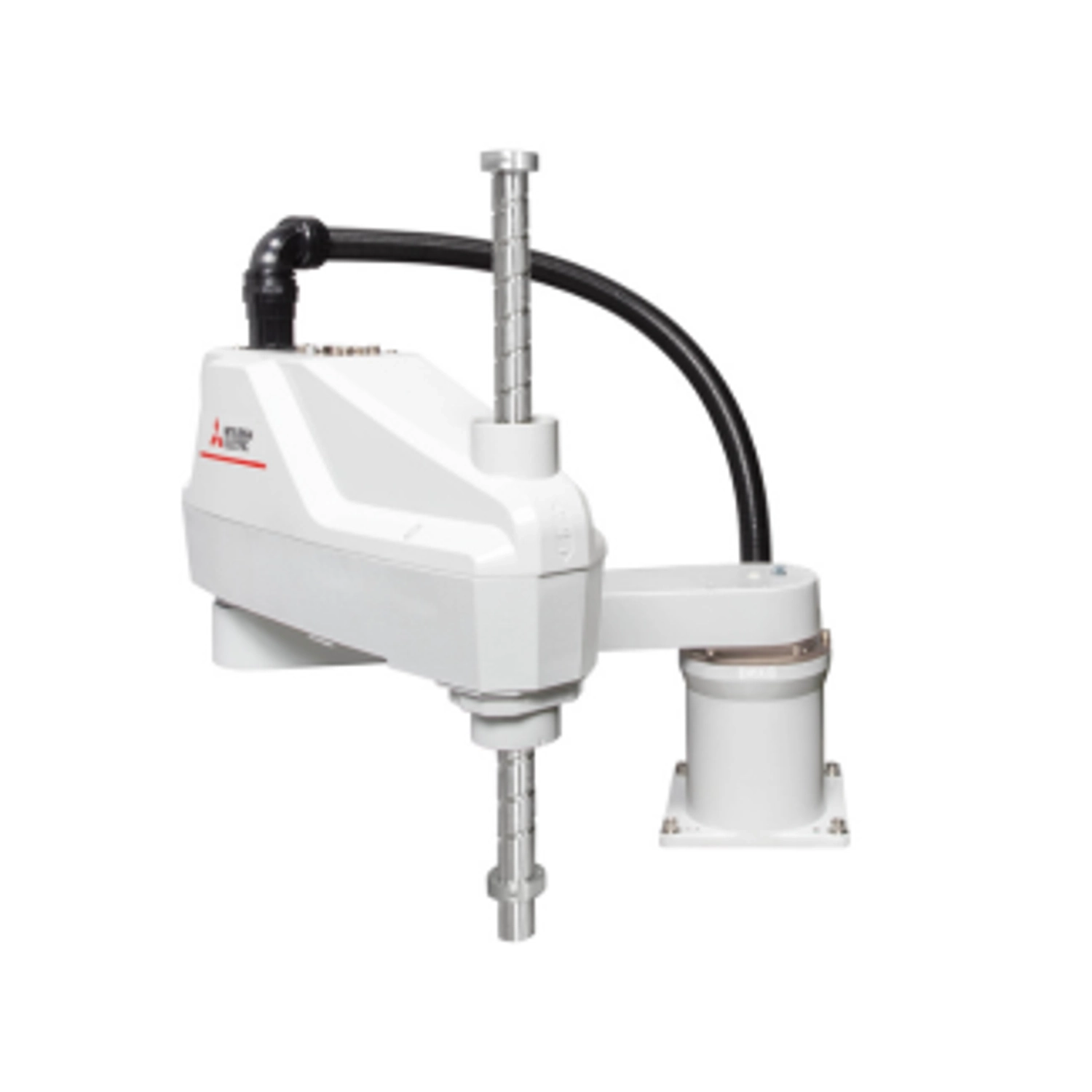

MELFA RH-10CRH
The MELFA RH-10CRH is a compact, lightweight horizontal articulated SCARA robot from Mitsubishi Electric's CRH series, designed for space-constrained environments. It features a maximum payload of 10kg and reach up to 800mm, enabling high-speed operations in assembly, coating, precision conveyance, handling, and inspection tasks. Key advantages include a low-profile design for easy integration, batteryless motors eliminating periodic battery replacements, and enhanced continuous operation for productivity. Equipped with CC-Link IE Field Basic connectivity, it supports intelligent functions like vision sensors and force sensing. The robot offers high repeatability, simple installation, and compatibility with CR800 controllers for versatile automation in manufacturing.
Robot Specifications
- Key FeaturesKey Features
- Top Features
- Other Features
Dimensions
Base Footprint: Approximately 169 mm width. Overall Height: 560 mm to 677 mm
Weight
20 kg to 21 kg (excluding machine cable)
Runtime
Designed for continuous industrial operation
Battery Pack
Batteryless system
CC-Link IE Field Basic, RS-422
R32TB or R86TB (10.1" Touch screen) Teaching Box.
Supports 2D/3D vision sensors, force sensors, and tracking sensors (via intelligent options)
Yes, via e-F@ctory Alliance and edge computing modules for telemetry
Available Countries
Global
Warranty Info
1 year standard
Industry
Automotive, Electronics, Pharma
Industrial Robot Category
Horizontal Articulated (SCARA).
Payload Capacity
10 kg
Speed
J1 Axis: 420°/sJ2 Axis: 720°/sJ3 (Z) Axis: 1100 mm/sJ4 ($\theta$) Axis: 2700°/sComposite Speed: 10,570 mm/s (Maximum)

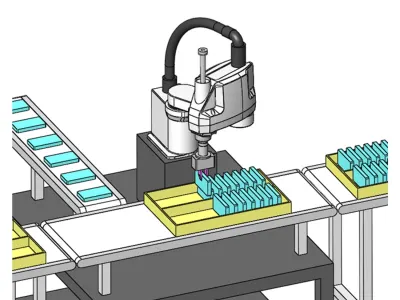

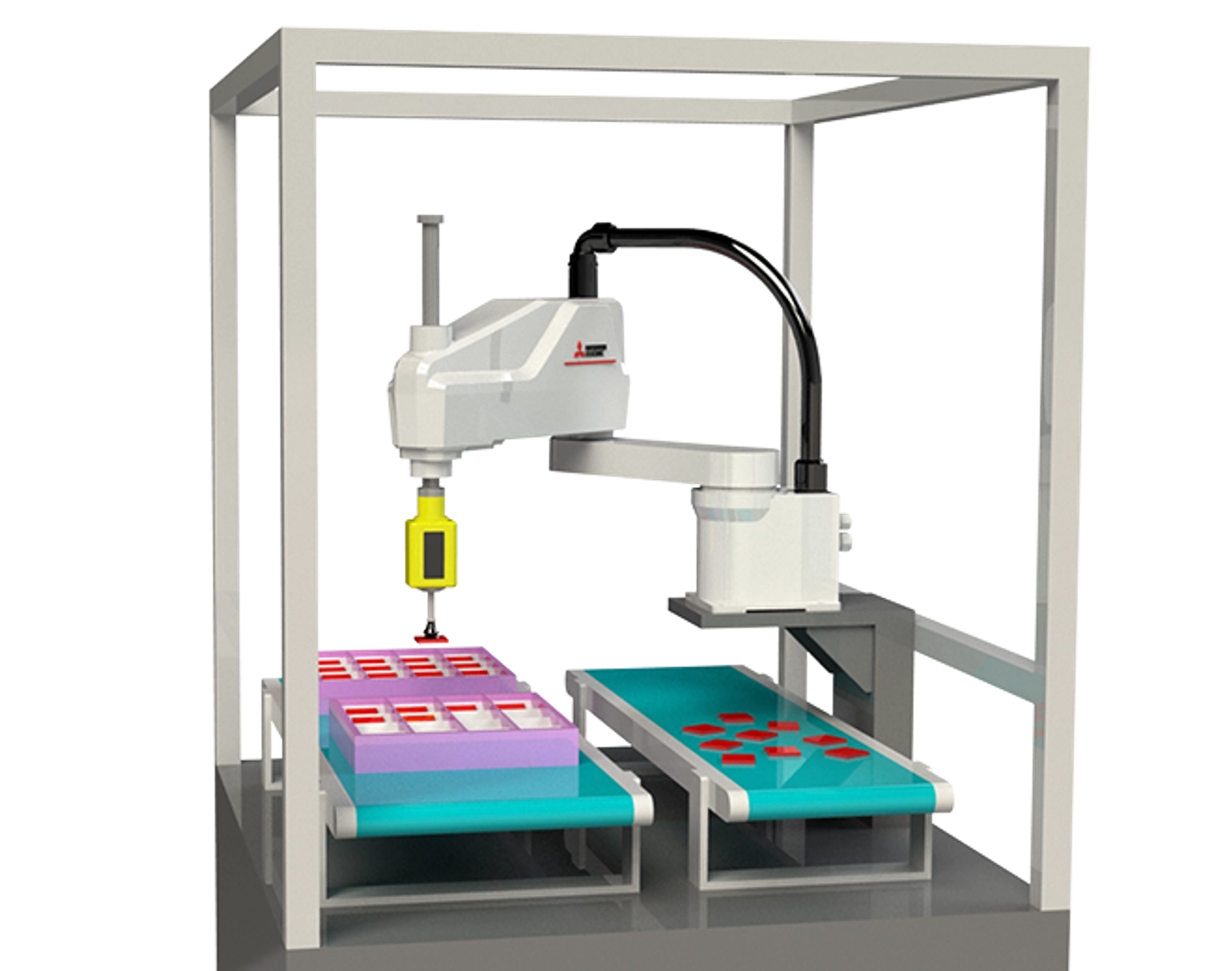

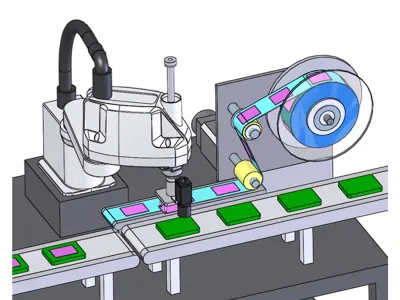

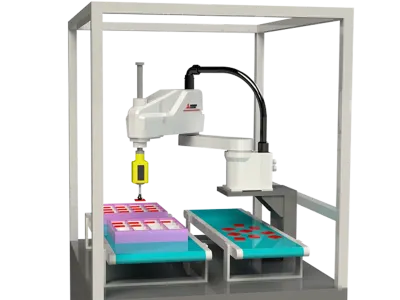

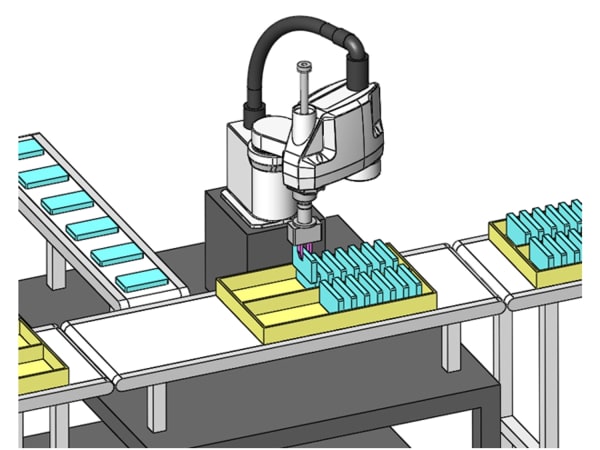

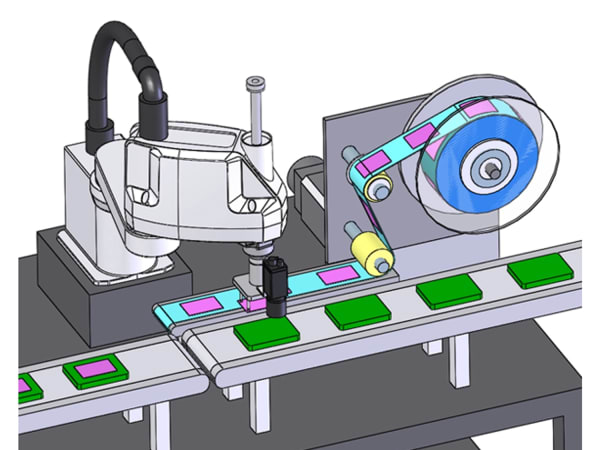

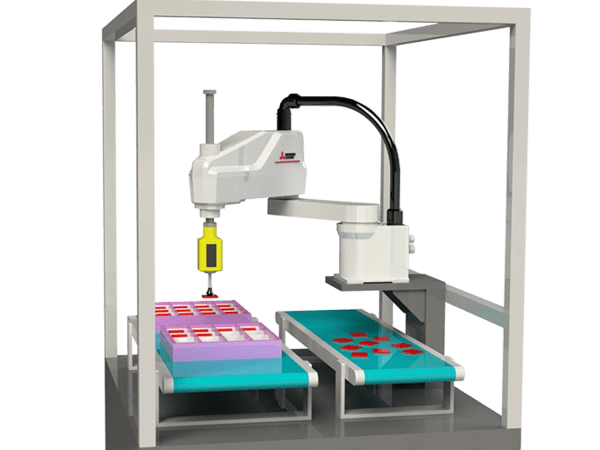

Image Gallery
Below images are from Mitsubishi Electric Corporation's official sources
Review Videos
Watch expert reviews and demonstrations of this robot
More Robots
Discover more robots in the same category
Robots From Other Categories
Discover complementary robots from different categories that work well together
Frequently Asked Questions
Get answers to common questions about this robot
Q1. What is MELFA RH-10CRH, and what problem is it designed to solve?
The MELFA RH-10CRH is a compact SCARA robot arm from Mitsubishi Electric's RH-CRH series, with a maximum payload of 10kg. According to the manufacturer, it addresses space constraints in industrial automation by enabling installation in limited areas.
Q2. What are the main capabilities and key features of MELFA RH-10CRH?
Key features include a batteryless motor that eliminates periodic battery replacements and a compact, lightweight design for easy integration. The manufacturer states it supports high-speed operation and compatibility with CC-Link IE Field Basic for productivity in assembly tasks.
