NHC-30

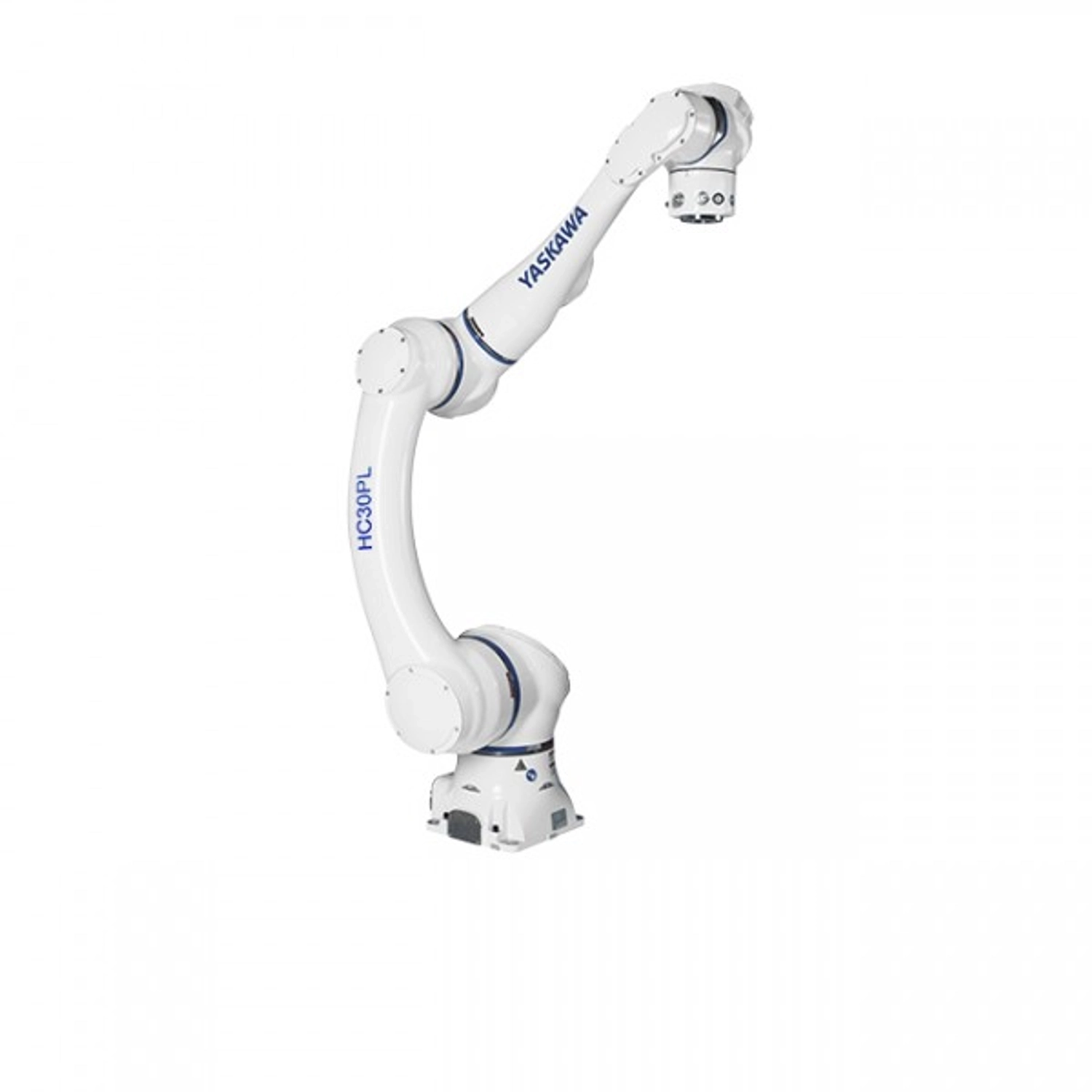

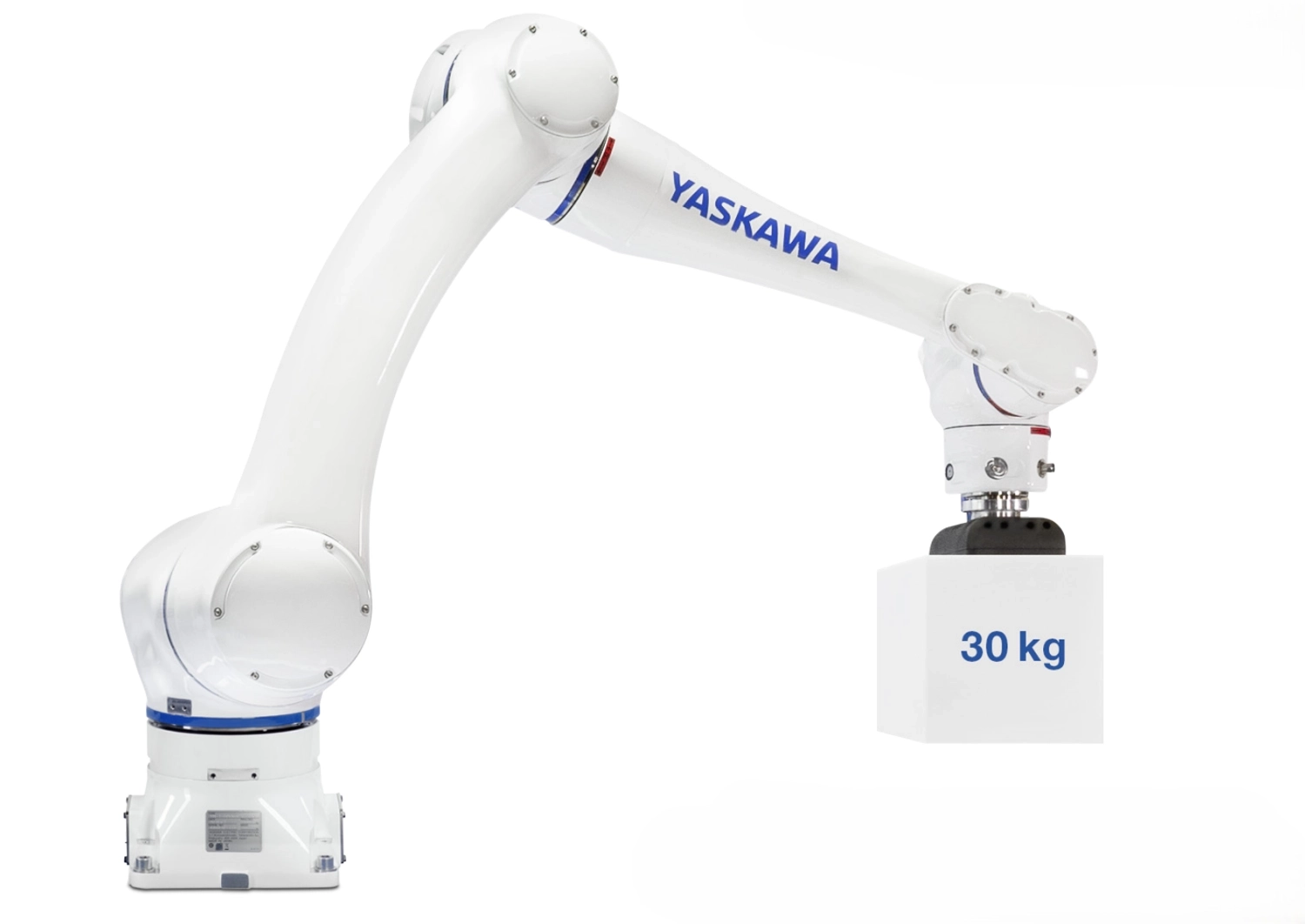

The Yaskawa MOTOMAN NHC-30 is a high-payload collaborative robot from the NHC-Series, part of the MOTOMAN NEXT platform for AI-driven adaptive automation. With a 30 kg payload and 1700 mm reach, it excels in heavy-duty collaborative tasks like palletizing, handling, and assembly. Integrated torque sensors in each of its 6 axes enable safe human-robot interaction via Power and Force Limiting, allowing operation without fencing. Built-in RGB-D bodycam supports vision-based applications, monitoring workspaces and reacting to changes. NVIDIA Jetson Orin NX-powered ACU runs Linux with Docker, ROS2 bridge, HALCON library for AI image processing, and collision-free path planning. Ideal for food, pharma, packaging due to food-grade grease and IP67 rating. User-friendly Smart Pendant simplifies programming; robust aluminum construction ensures durability in harsh environments.
Robot Specifications
- Key FeaturesKey Features
- Top Features
- Other Features
Dimensions
Footprint: Approximately Ø 245 mm; Absolute Reach: 1,700 mm
Weight
140 kg
Speed
Maximum TCP speed up to 2 m/s; individual axis speeds vary between 120°/s and 250°/s
Runtime
24 hours continuous
ROS2, gRPC, Ethernet, I/O
ISO standard cobot flange (ISO 9409-1-50-25M), plug-and-play actuators, and Yaskawa Robot EcoSystem
Yes via ROS2 and IT/OT integration
Available Countries
Global (Europe,USA,Asia,Africa)
Warranty Info
2 years standard
Industry
Food & Beverage, Pharma
Industrial Robot Category
Articulated Robots
Payload Capacity
30 kg
6 high-resolution torque sensors (one per axis), integrated RGB-D "bodycam" for situational awareness, and force sensors.

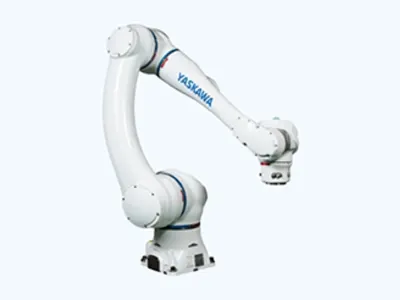

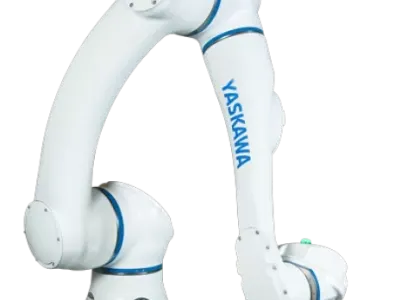

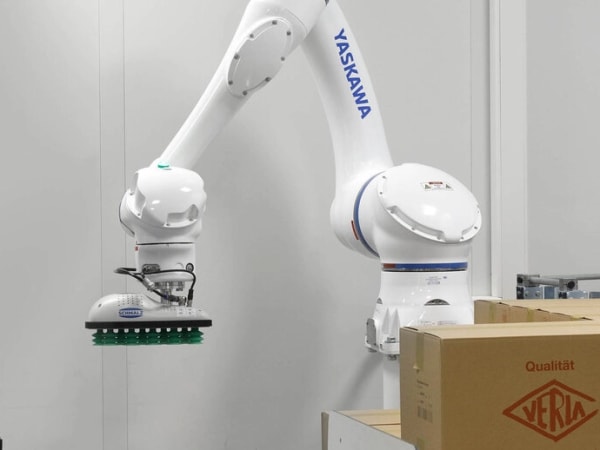

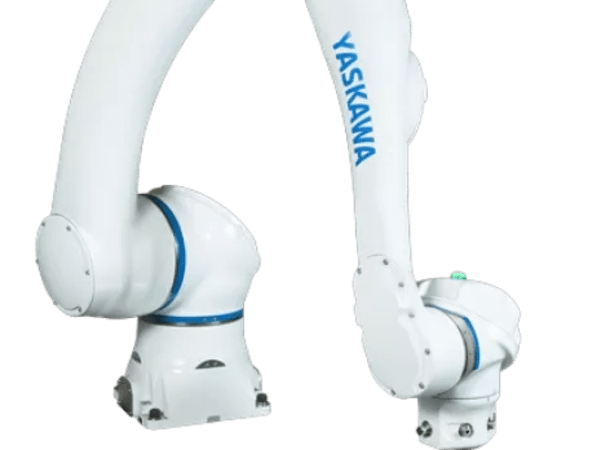

Image Gallery
Below images are from Yaskawa's official sources

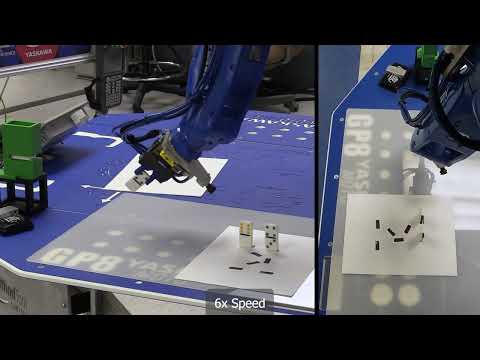

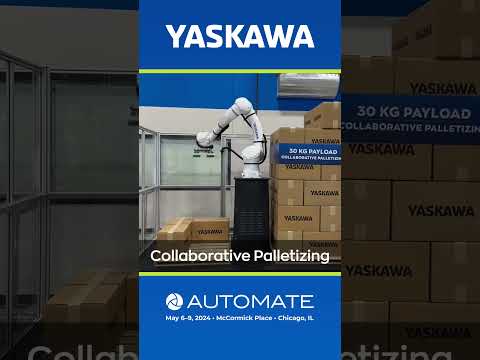

Review Videos
Watch expert reviews and demonstrations of this robot

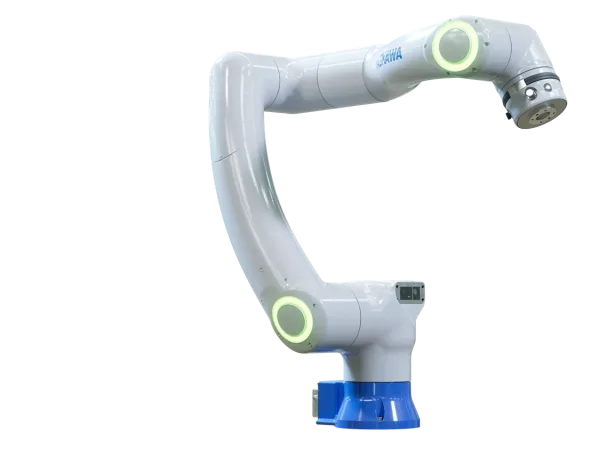

More Robots from Yaskawa
Explore other robots from this manufacturer
More Robots
Discover more robots in the same category
Robots From Other Categories
Discover complementary robots from different categories that work well together
Frequently Asked Questions
Get answers to common questions about this robot
Q1. What is NHC-30, and what problem is it designed to solve?
The NHC-30 is a collaborative robot model in Yaskawa's Motoman Next platform. According to the manufacturer, it addresses challenges in adaptive automation by enabling robots to autonomously respond to unstructured environments using AI processing.
Q2. What are the main capabilities and key features of NHC-30?
NHC-30 features integrated AI via Nvidia Jetson Orin for decision-making, force control with torque sensors in each axis, and compatibility with sensors for handling variable tasks. It supports collaborative operation with power and force limiting for safe human interaction.
