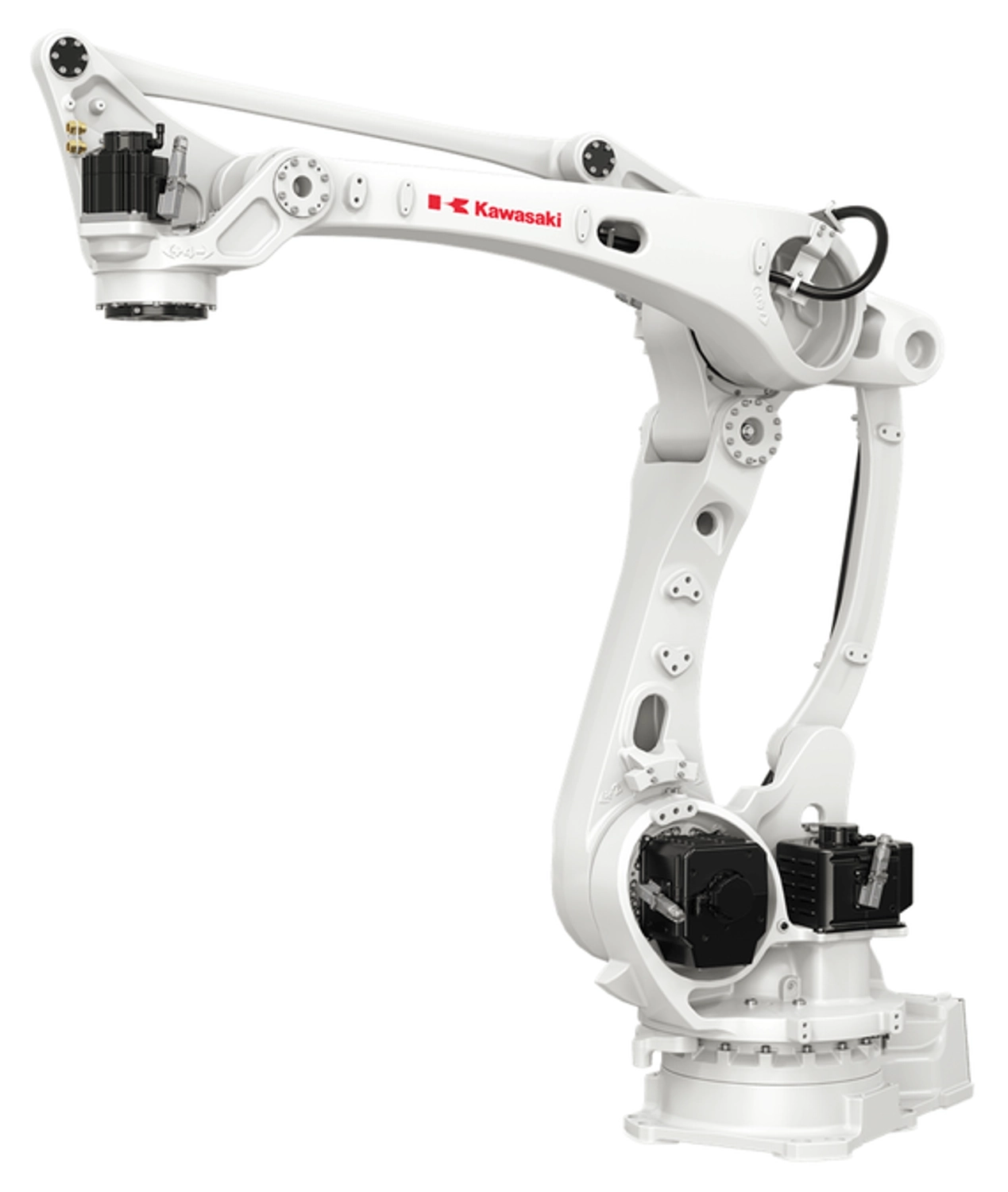

CP110L
The CP110L is a high-speed palletizing robot from Kawasaki's CP series, featuring a 110kg payload capacity and maximum reach of 2505mm. It achieves industry-leading handling capacity with up to 2200 cases per hour (60kg load including hand, 400mm up/down, 2000mm horizontal). Compact design includes the smallest ceiling height requirement (2242mm max reach point) and turning axis interference radius (453mm) in its class, enabling installation in space-constrained sites. First 110kg-class palletizing robot with hollow wrist structure for internal cabling, reducing interference and installation time. Offers wide motion range (vertical 2433mm), standard power regeneration for energy efficiency, and floor mounting. Ideal for logistics palletizing, supporting higher stacks and larger pallets with 4-axis freedom and ±0.05mm repeatability
Robot Specifications
- Key FeaturesKey Features
- Top Features
- Other Features
Dimensions
Base Footprint: 550 x 550 mm ; Max Reach Point Height: 2,242 mm
Weight
820kg
Speed
JT1 (Base): 160°/s JT2 (Arm Out-In): 140°/s JT3 (Arm Up-Down): 160°/s JT4 (Wrist Twist): 340°/s
Runtime
Designed for 24/7 continuous industrial operation.
Multiple protocols
Color LCD Touch Panel Teach Pendant (English/Japanese/Chinese selectable).
No
Available Countries
Global,Asia-Oceania,Europe
Warranty Info
1-2 years standard
Industry
Logistics / Warehouse, Manufacturing (General)
Industrial Robot Category
Palletizing Robots (4-axis specialist)
Payload Capacity
110 kg
Supports Kawasaki Cubic-S (Safety Monitoring Function) for safe human-robot collaboration in small spaces; compatible with 2D/3D vision systems for depalletizing.
Image Gallery
Below images are from Kawasaki's official sources
Review Videos
Watch expert reviews and demonstrations of this robot
More Robots from Kawasaki
Explore other robots from this manufacturer
More Robots
Discover more robots in the same category
Robots From Other Categories
Discover complementary robots from different categories that work well together
Frequently Asked Questions
Get answers to common questions about this robot
Q1. What is CP110L, and what problem is it designed to solve?
The CP110L is a palletizing robot from Kawasaki Heavy Industries with a 110 kg payload capacity. According to the manufacturer, it addresses installation challenges in space-constrained environments, such as limited ceiling height in logistics facilities.
Q2. What are the main capabilities and key features of CP110L?
The CP110L features a hollow wrist structure, the first in its 110 kg payload class for palletizing robots. Kawasaki states it offers high handling capacity, compact design, and extended range of motion for palletizing applications in logistics.
