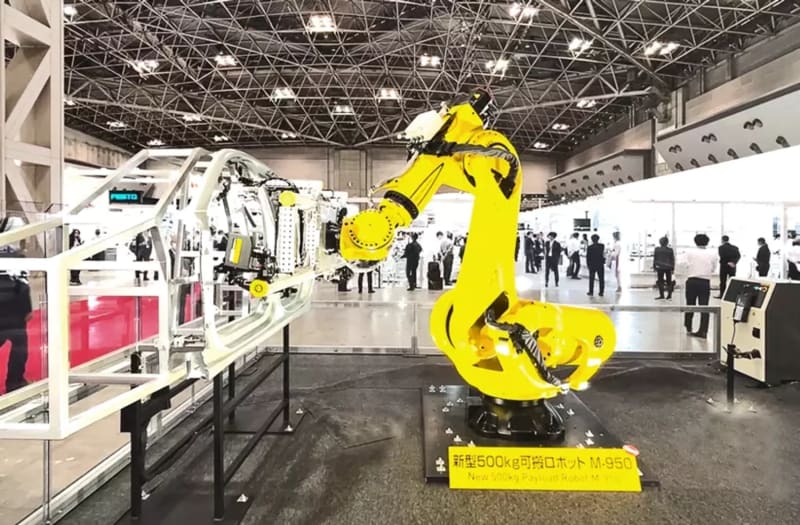

M-950iA/500
The FANUC M-950iA/500 is a heavyweight industrial robot with 500 kg payload capacity and 2830 mm reach, designed for handling large, heavy workpieces like automotive components, EV battery packs, and construction materials. Featuring a serial-link structure with wide J3 axis motion range allowing backward flip-over, it excels in tight workspaces. High-rigidity wrist supports precision tasks including friction stir welding, drilling, and riveting. Equipped with 6 axes, ±0.08 mm repeatability, and R-30iB Plus controller, it offers versatility across heavy material handling, palletizing, and assembly. IP54/IP67 protection ensures reliability in demanding environments, with options for accuracy enhancement under external forces.
Robot Specifications
- Key FeaturesKey Features
- Top Features
- Other Features
Dimensions
3230 x 1533 x 2830 mm
Weight
2500 kg
Speed
J1/J2/J3 Axis: 100°/s, 80°/s, 80°/s J4/J5/J6 Axis: 110°/s, 110°/s, 170°/s
Runtime
8760 hours/year
Ethernet/IP, Profinet, DeviceNet
FANUC iPC Box, Servo Positioners, and iRVision 3DV sensors.
Supports iRVision (2D/3D), Force Sensors (at the wrist), and absolute pulse encoders.
Yes via FANUC ZERO
Available Countries
Global
Warranty Info
2 years standard
Industry
Automotive (EV/Giga-casting), Construction, Aerospace, and Logistics.
Industrial Robot Category
Articulated Robots
Payload Capacity
500 kg

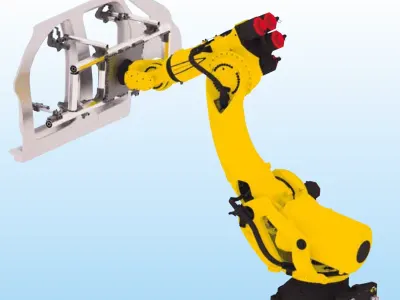

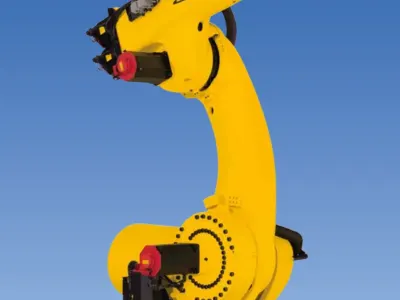

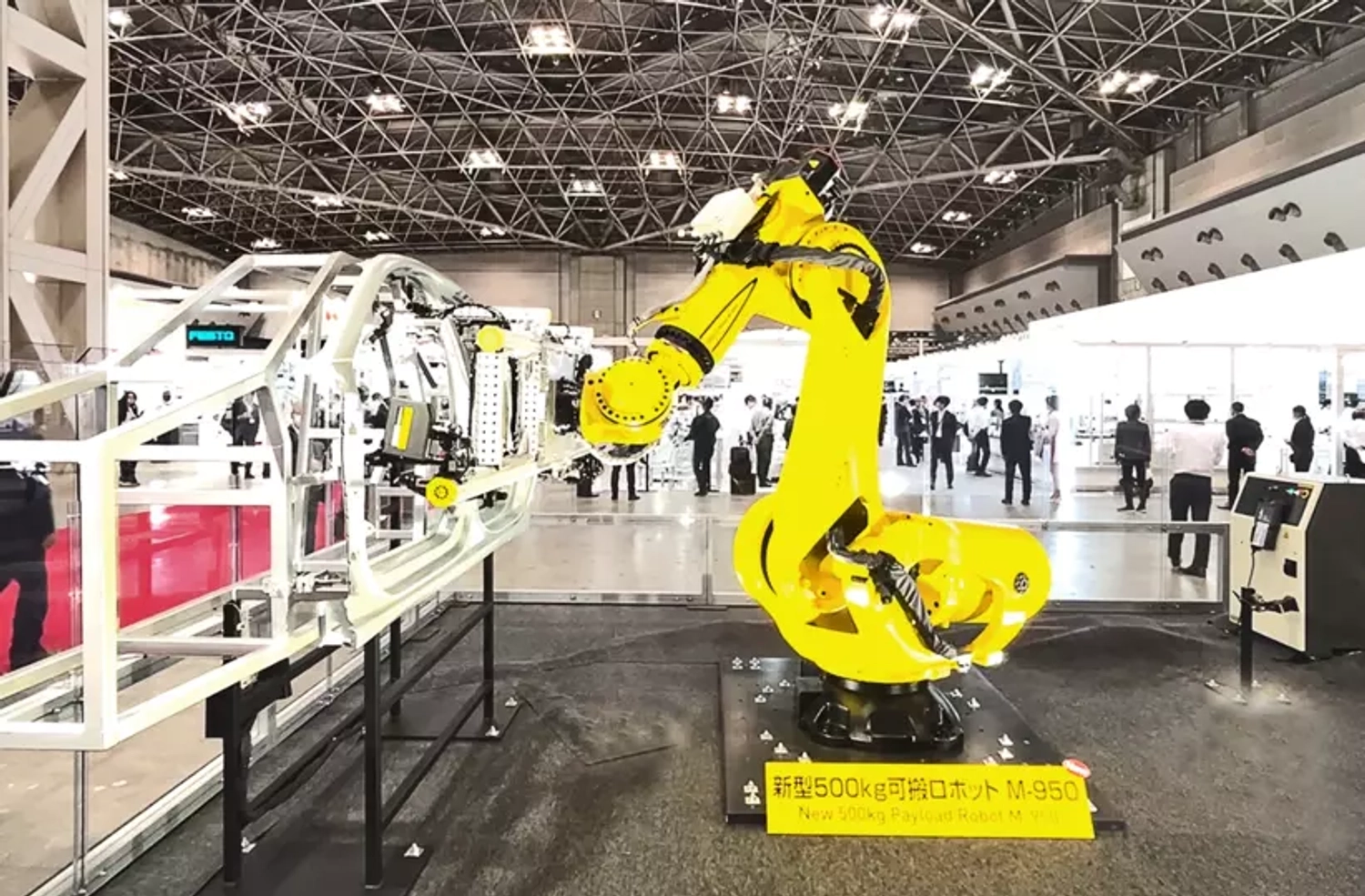

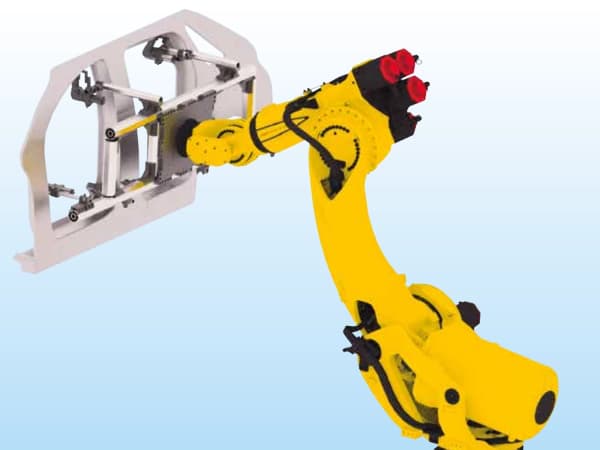

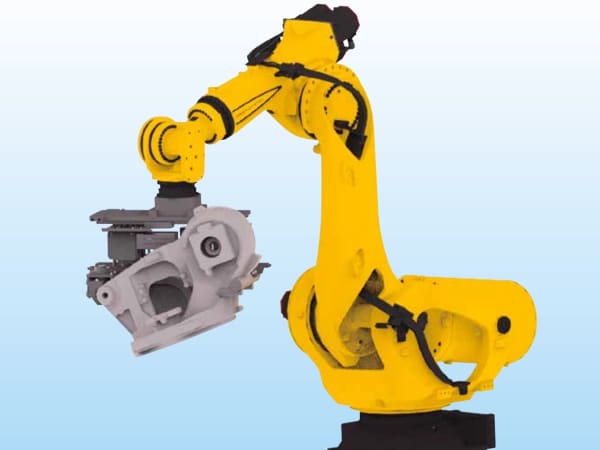

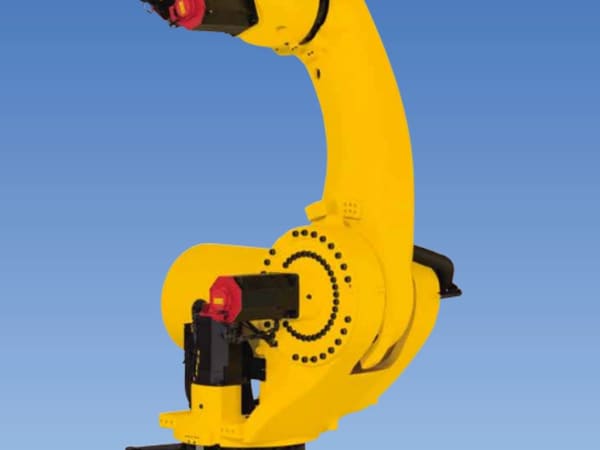

Image Gallery
Below images are from Fanuc's official sources

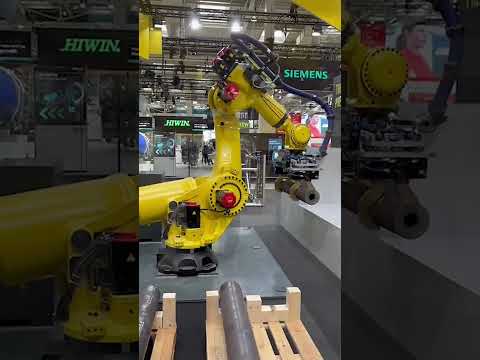

Review Videos
Watch expert reviews and demonstrations of this robot
More Robots from Fanuc
Explore other robots from this manufacturer
More Robots
Discover more robots in the same category
Robots From Other Categories
Discover complementary robots from different categories that work well together
Frequently Asked Questions
Get answers to common questions about this robot
Q1. What is M-950iA/500, and what problem is it designed to solve?
The M-950iA/500 is a 6-axis industrial robot from FANUC designed for heavy payload handling up to 500 kg in manufacturing, addressing challenges in lifting large components like automotive parts and EV batteries in constrained spaces.
Q2. What are the main capabilities and key features of M-950iA/500?
It offers a 2830 mm reach, serial-link design with wide J3 axis motion allowing backward flip, and positioning repeatability of ±0.08 mm, supporting tasks such as material handling and palletizing.
