ANYmal C
AI Chatby ANYbotics
SwitzerlandReleased: 2019
Last updated:
ANYmal C is the 2019 industrial generation of the ANYmal quadruped from ANYbotics, the ETH Zurich spin-off. It was redesigned from the research-grade ANYmal B for ruggedness and reliability, with a streamlined sealed body, new drives, more computing power and depth cameras on all sides. It walks and climbs stairs on its own, maps its surroundings with a 3D LiDAR, and carries a pan-tilt inspection unit with zoom, thermal and gas sensors to read gauges, spot hot equipment and detect leaks. A docking station lets it recharge by itself. It has since been succeeded by ANYmal D.
What Can ANYmal C Do?
Core operational tasks and activities demonstrated or performed by ANYmal C.
Real-World Applications of ANYmal C
Industries, working environments, and deployment suitability for ANYmal C.
ANYmal C Capabilities
Inherent physical, perceptual, and cognitive abilities built into ANYmal C.

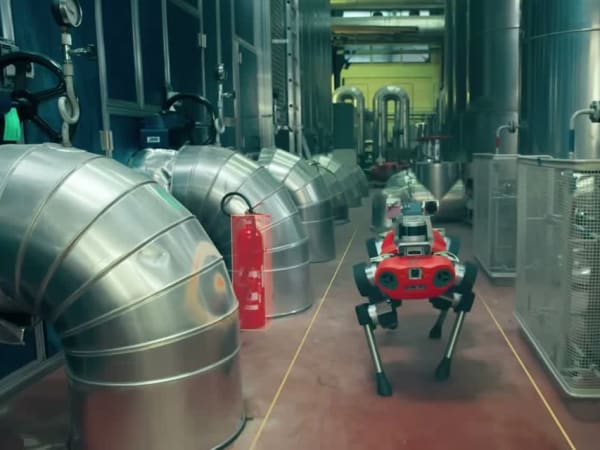

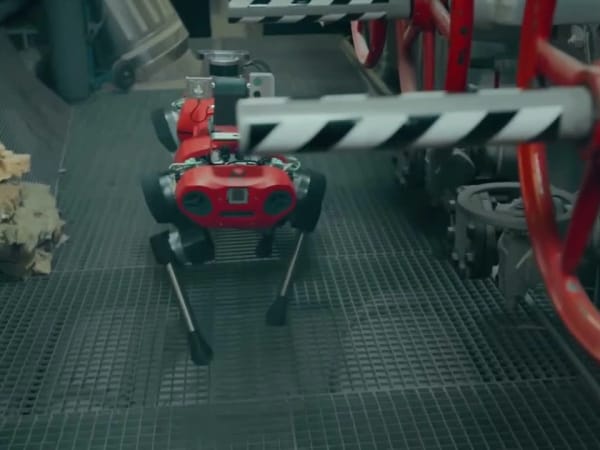

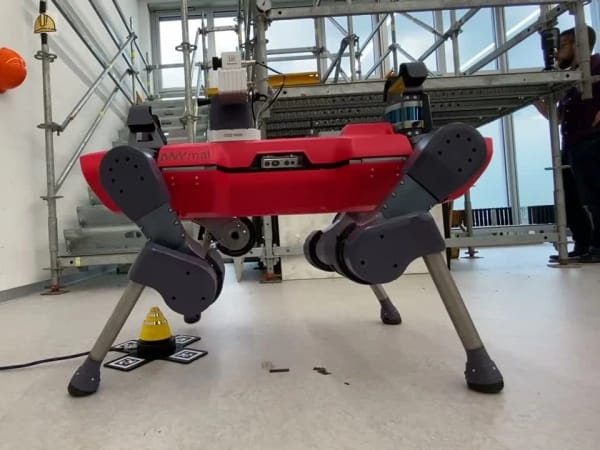

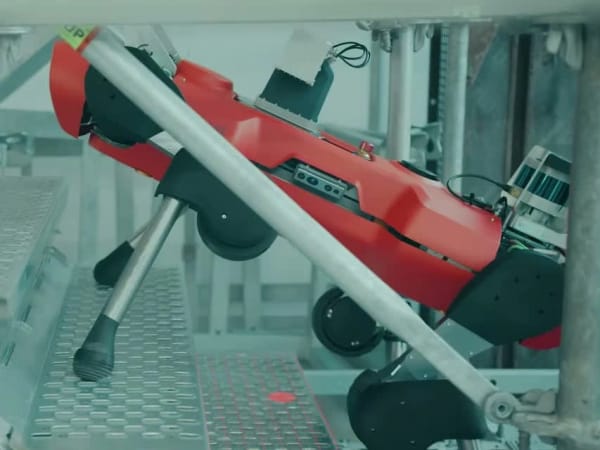

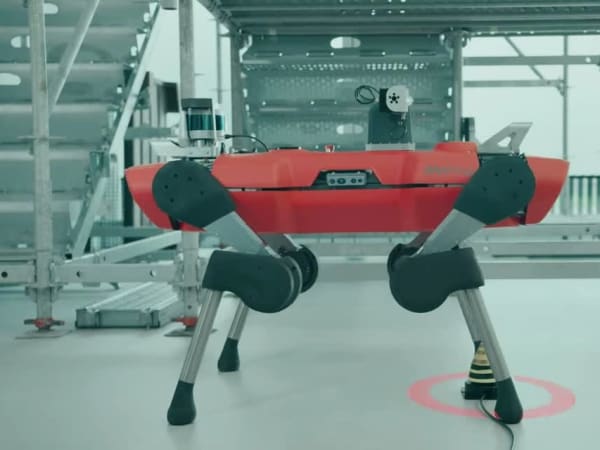

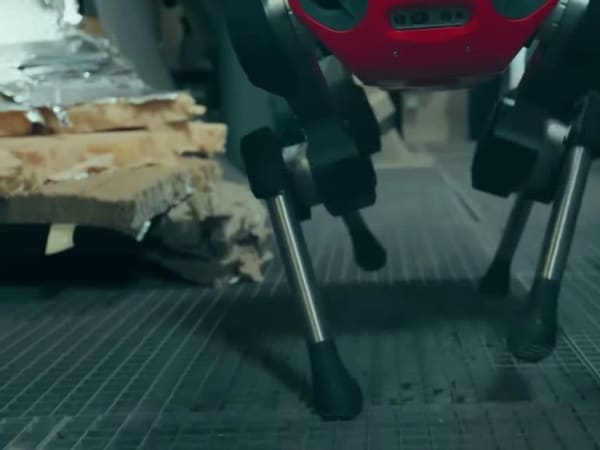

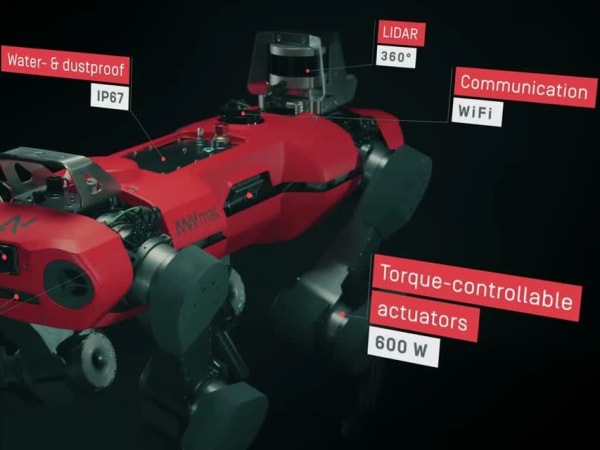

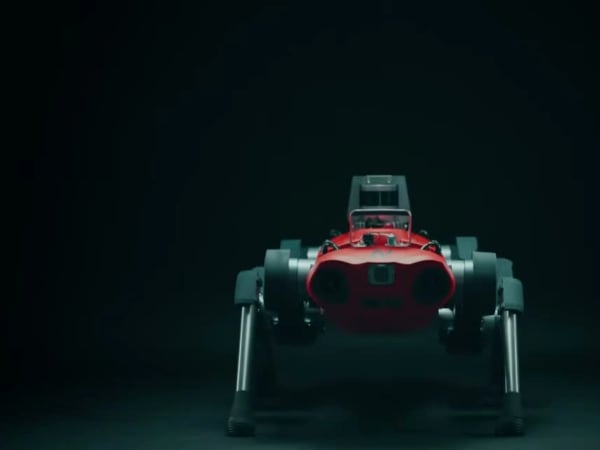

Image Gallery
Below images are from ANYbotics's official sources

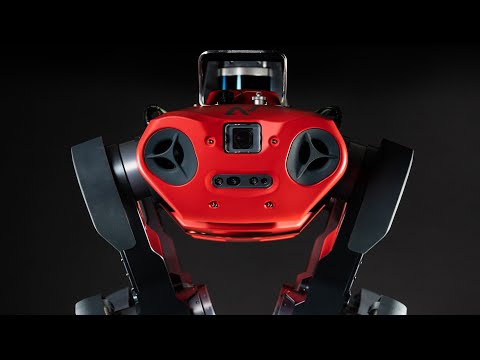

Review Videos
Watch expert reviews and demonstrations of this robot dog
Full Specifications
Other Notable Features
Autonomous docking station; inspection payload option with optical zoom, thermal and gas sensors and ultrasonic microphone; real-time motion planning; teach-in mode; ruggedized sealed body
ANYmal C vs Unitree Laikago, X20 and Lynx
ANYmal C overlaps with these alternatives on Hazardous environments and Inspection and quality control; only ANYmal C is tagged for Energy and utilities and Search and rescue. ANYmal C trails the closest alternatives on max speed, max payload and weight.
Industries and capabilities are tags, not scores: a tick means the robot is listed for it. Green marks the best figure in a row (highest max speed and max payload; lowest weight). Ranges are not ranked.
| Spec | ANYmal CANYbotics | Unitree LaikagoUnitree Robotics | X20Deep Robotics | LynxDeep Robotics |
|---|---|---|---|---|
| Industries | ||||
| Hazardous environments | Yes | No | Yes | Yes |
| Inspection and quality control | Yes | No | Yes | Yes |
| Energy and utilities | Yes | No | No | No |
| Search and rescue | Yes | No | No | No |
| Capabilities | ||||
| Autonomous task execution | Yes | No | Yes | Yes |
| Navigation | Yes | No | Yes | Yes |
| Obstacle avoidance | Yes | No | Yes | Yes |
| Perception | Yes | No | Yes | Yes |
| Max Speed | 1 m/s | 0.8 m/s | 4 m/s | 5 m/s |
| Max Payload | 10 kg | 7 kg | 20 kg | 15 kg |
| Runtime | 120+ min | 3–4 h | 2–4 h | 3 h |
| Weight | 50 kg | 22 kg | 53–59 kg | 33 kg |
| Size Class | medium | medium | large | medium |
Notes such as conditions or alternate figures are left out and values are shown in common units; open each page for the full specs. Browse all robot dogs
