X30
AI Chatby Deep Robotics
ChinaReleased: 2023
Last updated:

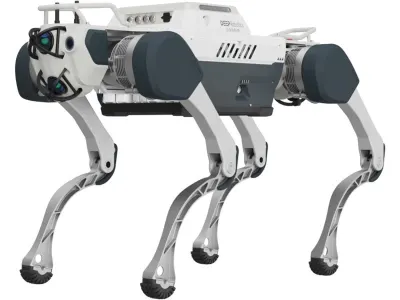

The X30 is a flagship industry-grade quadruped robot from Deep Robotics, engineered for demanding applications in inspection, security, surveying, mapping, emergency rescue, fire investigation, power stations, factories, and pipeline corridors. It excels in extreme environments with IP67 protection and operation from -20°C to 55°C. Key capabilities include fusion perception with LiDAR, depth cameras, infrared, and visual sensors for navigation in darkness, glare, or flickering light; rapid obstacle surmounting with 45° stair climbing and ≥20cm step clearance; maximum speed ≥4 m/s; and extended endurance of 2.5-4 hours with quick-swap batteries enabling ≥10km patrol range. The 56kg robot supports autonomous navigation, auto-charging, and reliable performance in complex terrains like industrial stairs and slopes, making it ideal for 24/7 industrial operations and research.
What Can X30 Do?
Core operational tasks and activities demonstrated or performed by X30.
Real-World Applications of X30
Industries, working environments, and deployment suitability for X30.
X30 Capabilities
Inherent physical, perceptual, and cognitive abilities built into X30.

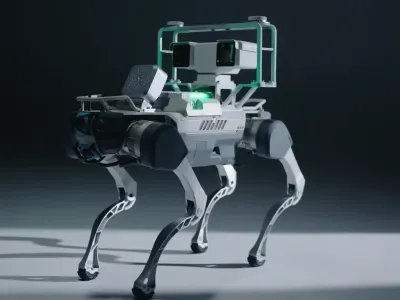

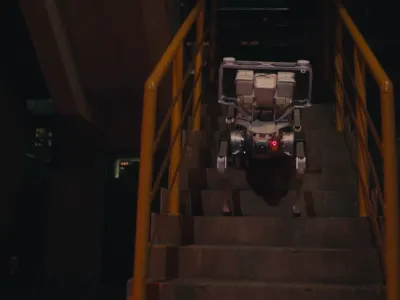

Image Gallery
Below images are from Deep Robotics's official sources
Review Videos
Watch expert reviews and demonstrations of this robot dog
Full Specifications
Other Notable Features
quick battery swaps, auto-charging, fusion perception for any lighting, RTK module
X30 vs Unitree A2, X20 and LYNX M20
X30 overlaps with these alternatives on Manufacturing and Security guard. X30 trails the closest alternatives on max speed, max payload and runtime.
Industries and capabilities are tags, not scores: a tick means the robot is listed for it. Green marks the best figure in a row (highest max speed, max payload and runtime; lowest weight). Ranges are not ranked.
| Spec | X30Deep Robotics | Unitree A2Unitree Robotics | X20Deep Robotics | LYNX M20Deep Robotics |
|---|---|---|---|---|
| Industries | ||||
| Manufacturing | Yes | Yes | Yes | No |
| Security guard | Yes | No | Yes | Yes |
| Construction | Yes | Yes | Yes | Yes |
| Dangerous or high-risk work | Yes | Yes | Yes | Yes |
| Capabilities | ||||
| Adaptation | Yes | Yes | Yes | Yes |
| Autonomous task execution | Yes | Yes | Yes | Yes |
| Balance and stability | Yes | Yes | Yes | Yes |
| Learning | Yes | Yes | Yes | Yes |
| Max Speed | 4 m/s | 5 m/s | 4 m/s | 5 m/s |
| Max Payload | 20 kg | 100 kg | 20 kg | 15 kg |
| Runtime | 2.5 h | 5 h | 2–4 h | 3 h |
| Weight | 56 kg | 37 kg | 53–59 kg | 33 kg |
| Size Class | large | large | large | medium |
Notes such as conditions or alternate figures are left out and values are shown in common units; open each page for the full specs. Browse all robot dogs
More Robots from Deep Robotics
Explore other robots and developments from this manufacturer
LYNX M20S
By: Deep Robotics
Launched: 2026
LYNX M20S is the next-generation wheeled-legged robot from DEEP Robotics, upgrading the LYNX M20 for tougher industrial and emergency work. Each leg ends in a driven wheel, so it can race along roads, then lift and step its legs to climb stairs, platforms and rough forest ground. Without getting any heavier, it carries more than twice the M20’s working load and runs much faster, and its fully sealed body lets it cross rivers and work in deep cold or blast-furnace heat. Dual hot-swappable batteries keep it running through long substation inspections, firefighting support and rescue missions.
Jueying Mini
By: Deep Robotics
Launched: 2020
Jueying Mini, listed simply as Mini on the Deep Robotics English site, is a mid-sized robot dog from the Hangzhou maker of the X20, X30 and Lite3. It is built as a smart, perception-heavy platform: laser sensing and cameras let it map its surroundings, navigate on its own, avoid obstacles and follow a person, while onboard deep-learning software recognizes objects and understands spoken commands. It handles indoor and outdoor ground, slopes and stairs and can carry a useful load, which makes it a capable base for research, education and visual perception projects.
X20
By: Deep Robotics
Launched: 2021
The Deep Robotics X20 is an industrial-grade quadruped robot dog designed for autonomous patrol inspection in extreme conditions, such as underground cable tunnels, toxic environments, and disaster zones. It features strong environmental adaptability with IP66 dust and water resistance, enabling operation in heavy rain, sand, dust storms, low temperatures, and hail. Key capabilities include navigating complex terrains like 30° slopes, 20cm obstacles, stairs, grass, sand, snow, gravel, and standing water; maximum speed of 4 m/s; payload capacity up to 20kg (with some sources noting 85kg for rescue variants); 2-4 hours endurance and 15km mileage; precise perception for navigation, dynamic obstacle avoidance, terrain recognition, and human-robot interaction. Targeted markets include electric power inspection for intelligent data acquisition and danger warning, post-disaster rescue for scouting, gas sensing, and material transport, as well as industrial applications requiring unmanned operations in hazardous areas to enhance safety and efficiency.
Lynx
By: Deep Robotics
Launched: 2024 (Global rollout 2025)
The Lynx is a compact wheel-leg hybrid quadruped robot designed for exceptional terrain adaptability and embodied AI capabilities, targeting industrial, research, defense, and field operations. It features ultra-wide joint movement ranges, enabling seamless switching between configurations like front-elbow rear-knee for tight spaces and full-elbow for stair climbing, navigating corridors as narrow as 50 cm. Key capabilities include omnidirectional obstacle avoidance, 360° point-cloud mapping via dual 96-line LiDARs, high-speed mobility up to 5 m/s (lab-tested, 2 m/s operational), slope handling up to 45°, continuous stair climbing to 25 cm, and single-step overcoming up to 80 cm. With IP66 protection, operation from -20°C to 55°C, hot-swappable batteries for 3 hours unloaded endurance (15 km range) or 2.5 hours loaded (12 km), and modular expansion ports, it supports payloads up to 15 kg (max load 50 kg). Powered by dual octa-core processors, wide-angle cameras, and OTA updates, Lynx excels in challenging environments like tunnels, pipelines, and off-road terrains, replacing humans in high-risk tasks while ensuring efficiency, safety, and scalability.
