MARVEL
AI Chatby KAIST
South KoreaReleased: 2022
Last updated:

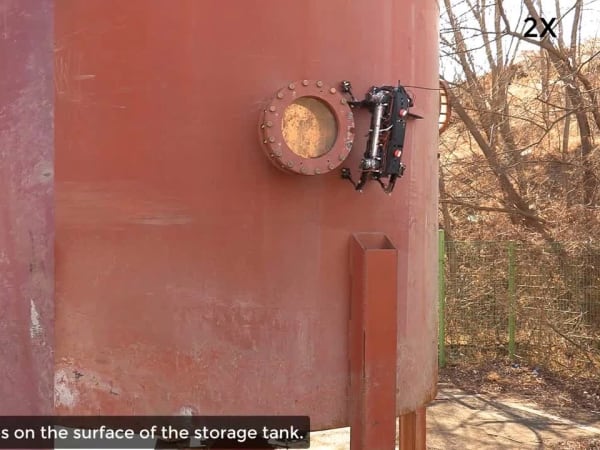

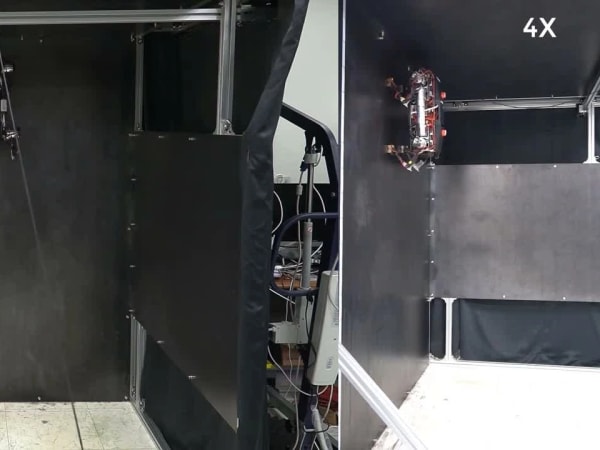

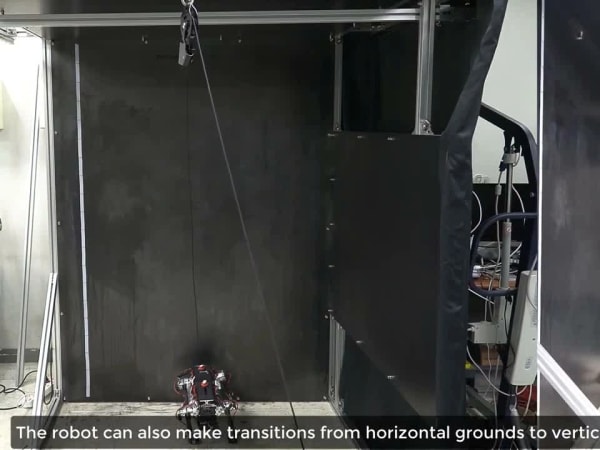

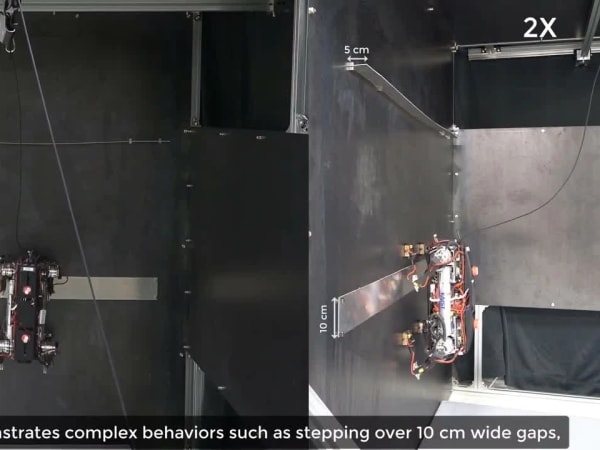

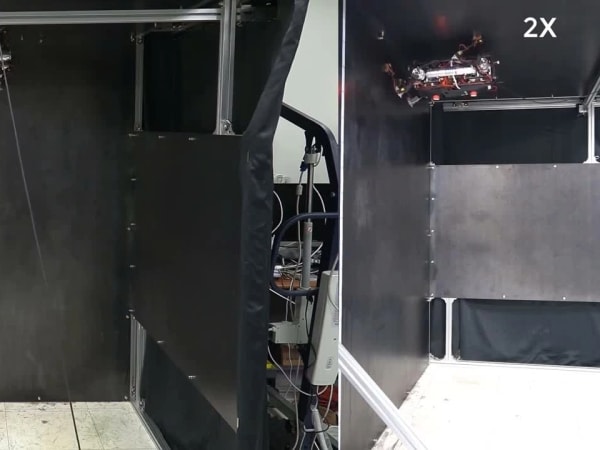

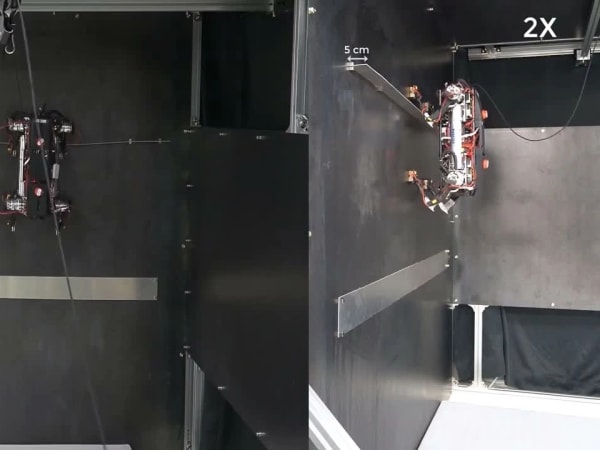

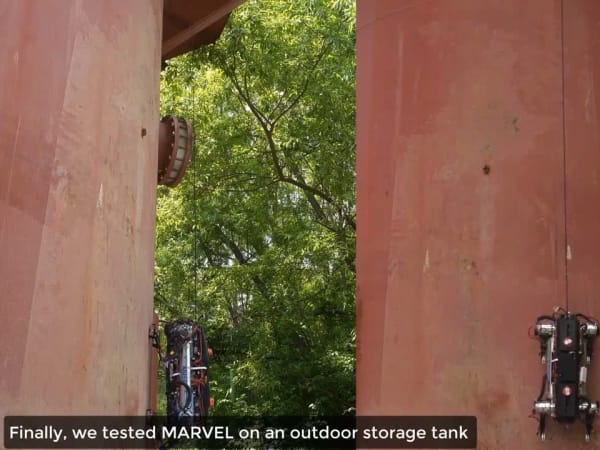

MARVEL is an untethered climbing quadruped from KAIST that walks on floors, vertical steel walls and even ceilings. Each foot holds a switchable electro-permanent magnet with a rubber-like magnetic sole, so the robot can grip steel firmly, release in a fraction of a second and take its next step. It climbs tanks, hulls and bridges that people would otherwise inspect by rope or scaffolding, steps over gaps and obstacles on the surface and moves from floor to wall to ceiling in one run. It is a leading example of a legged robot built for steel-structure inspection.
What Can MARVEL Do?
Core operational tasks and activities demonstrated or performed by MARVEL.
Real-World Applications of MARVEL
Industries, working environments, and deployment suitability for MARVEL.
MARVEL Capabilities
Inherent physical, perceptual, and cognitive abilities built into MARVEL.
Image Gallery
Below images are from KAIST's official sources

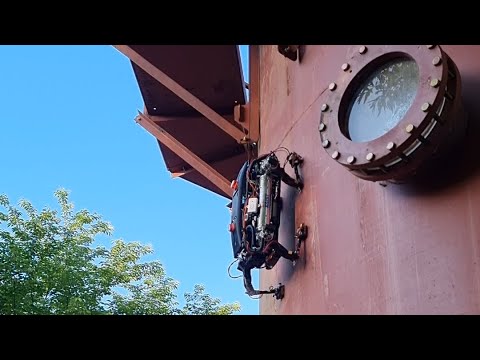

Review Videos
Watch expert reviews and demonstrations of this robot dog
Full Specifications
Other Notable Features

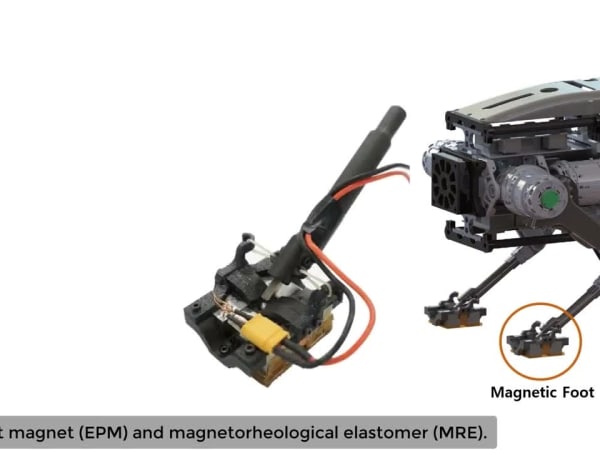

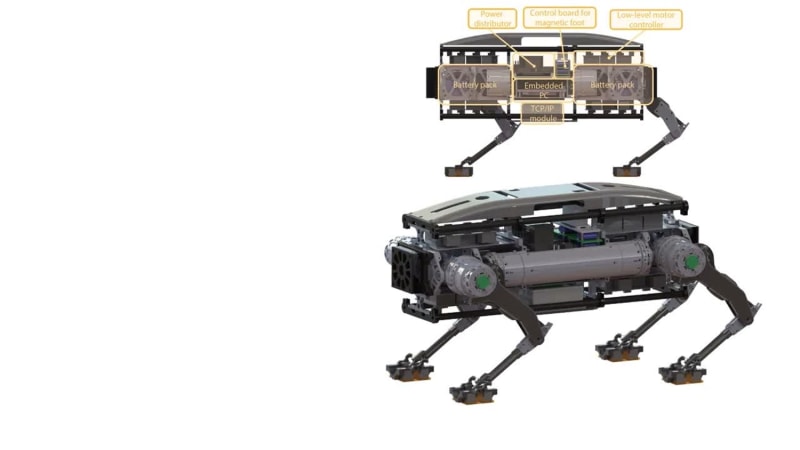

Electro-permanent magnet feet (about 0.2 kg each) with 530 N adhesion and 440 N shear force and a 0.44 s switching time; magnetorheological elastomer soles; untethered operation; published URDF; model predictive controller
MARVEL vs Mini Cheetah, GENISOM L1 W and Black Panther II
MARVEL overlaps with these alternatives on Inspection and quality control and Construction; only MARVEL is tagged for Energy and utilities. MARVEL leads this group on weight but trails on max payload.
Industries and capabilities are tags, not scores: a tick means the robot is listed for it. Green marks the best figure in a row (highest max payload; lowest weight). Ranges are not ranked.
| Spec | MARVELKAIST | Mini CheetahMIT | GENISOM L1 WGenisom AI | Black Panther IIMirrorMe Technology |
|---|---|---|---|---|
| Industries | ||||
| Inspection and quality control | Yes | No | Yes | No |
| Construction | Yes | Yes | No | No |
| Hazardous environments | Yes | Yes | No | No |
| Energy and utilities | Yes | No | No | No |
| Capabilities | ||||
| Terrain traversal | Yes | Yes | Yes | No |
| Walking | Yes | Yes | No | No |
| Adaptation | Yes | Yes | Yes | No |
| Whole-body control | Yes | Yes | No | No |
| Max Speed | 0.7 m/s | 3.84 m/s | 5.5 m/s | 13.4 m/s |
| Max Payload | 3 kg | 2 kg | 10 kg | — |
| Weight | 8 kg | 9 kg | 20 kg | 40 kg |
| Size Class | mini | mini | mini | medium |
Notes such as conditions or alternate figures are left out and values are shown in common units; open each page for the full specs. Browse all robot dogs
