🐕 Robot Dog• commercial• medium
RBQ-10
by Rainbow Robotics
Released: 2024
💰 USD65,000 - 80,000
The RBQ-10 is a quadruped robot from Rainbow Robotics' RBQ series, optimized for surveillance, reconnaissance, search missions, and field operations. It navigates rough and uneven terrain with capabilities for walking at 3 km/h and running at 12 km/h. Equipped with front RGB camera x1 and depth (stereo) camera x1, it supports various sensors like LiDAR. Dimensions are 500 x 1000 x 500 mm, weighing 30 kg with a 15 kg payload capacity. It offers 120 minutes of continuous walking, step clearance up to 15 cm, and climbing abilities including longitudinal slope 30% and transverse slope 15%. Communication via WiFi and ROS2 support enable autonomous missions, remote control, and custom payloads. Target markets include military, crime prevention patrols, safety inspection, logistics, research, patrol, and search & rescue.
3.33 m/s (12 km/h Running) / 1.11 m/s (4 km/h Walking) m/s
Max Speed
12
Total DOF
180 minutes (Mixed use); 90 minutes (Continuous high-speed walking) min
Runtime
10 Kg kg
Max Payload
Full Specifications
Physical Design
Body Length945 mm mm
Standing Height565 mm mm
Body Width440 mm mm
Weight37 kg kg
Number of Legs4
Total DOF12
DOF Per Leg3
MaterialsHigh-strength Aluminum, Steel, and Engineering Plastics (Full-metal rugged casing)
Locomotion & Gait
Supported GaitsWalk, Run, Trot, Stair-climbing, Handstands, Dancing (AI-based motions)
Max Speed3.33 m/s (12 km/h Running) / 1.11 m/s (4 km/h Walking) m/s
Max Climb Angle22° (40% Longitudinal Slope); 15% Transverse Slope°
Max Step Height12 cm (Stairs) to 20 cm (Dynamic steps) cm
Terrain Capabilitiesrough terrain, field areas, slopes, steps
Actuation System
Actuator TypeIntegrated fanless brushless DC (BLDC) motors (In-house developed)
TransmissionHigh-precision Gearbox (Internal integrated unit)
Compliancecompliant
Payload & Manipulation
Max Payload10 Kg kg
Manipulator Armno
Arm DetailsModular expansion interface for PTZ cameras or cargo modules
Sensing & Perception
LiDARLiDAR support
Depth CamerasFront x1, Rear x1, Bottom x1 (stereo)
IMUIntegrated high-precision IMU for balance
GPSyes
Obstacle Detection360° awareness via LiDAR and vision fusion
Tactile SensorsIndirect force sensing via actuator current feedback
Autonomy & Navigation
Autonomous Navyes
SLAMSupports 3D SLAM-based mapping and path planning
Remote Controlyes, WiFi
TeleoperationUDP channel for walk commands
Control & Software
CommunicationWiFi, CAN, USB, LAN, ROS2
ROS Supportyes (ROS2)
SDK/APISDK available
SimulationGazebo, MuJoCo, Isaac Sim
Control ModesManual, Autonomous, AI-Blind, Reinforcement Learning
Power & Battery
Battery CapacityApproximately 800–1000 Wh (Standard high-capacity Li-ion) Wh
Runtime180 minutes (Mixed use); 90 minutes (Continuous high-speed walking) min
Charging Time120 minutes min
Power Sourcebattery
Reliability & Safety
IP RatingIP54
Operating Temp0°C to 45°C
CertificationsCE (Compliant), ISO standards pending
Emergency StopSoftware-based kill switch and physical E-stop on remote
Applications
Use Casessurveillance, reconnaissance, search missions, patrols, safety inspection, logistics, research
Industriesmilitary, security, logistics

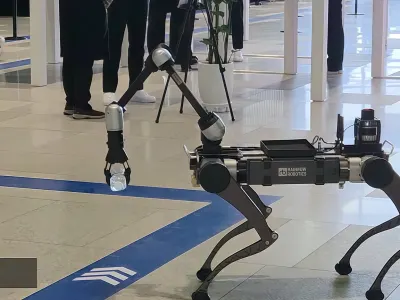

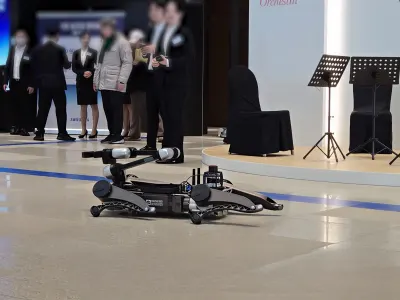

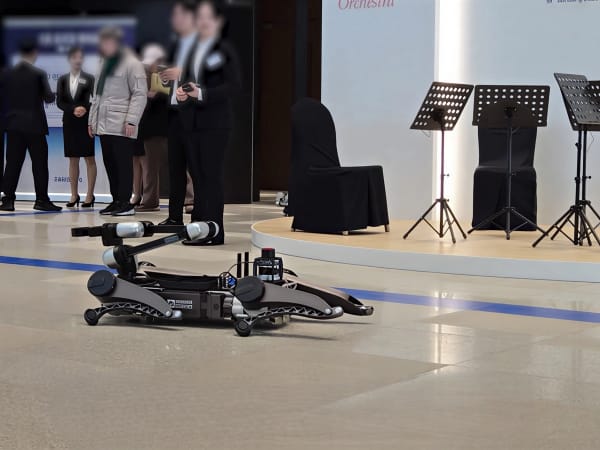

Notable DeploymentsSamsung Electronics Annual General Meeting (2025), Everland Smile Pumpkin Parade (Performance testing)
Commercial
PriceUSD65,000 - 80,000
Order Lead Time8–12 weeks
Warranty1-Year Standard Parts and Labor
SupportDeveloper Technical Support and Rainbow Robotics GitHub Documentation
CountriesSouth Korea
Other Notable Features
AI-enabled navigation, custom payload support, blind locomotion capabilities

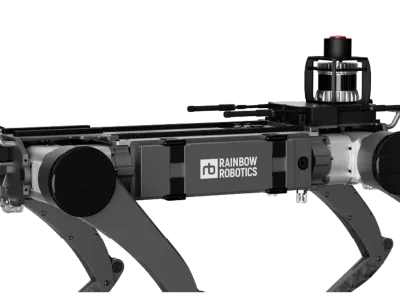

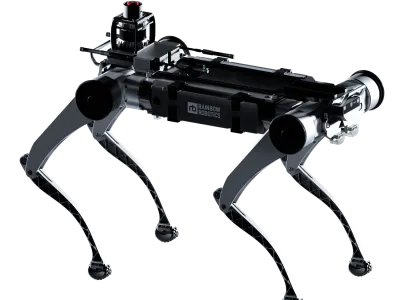

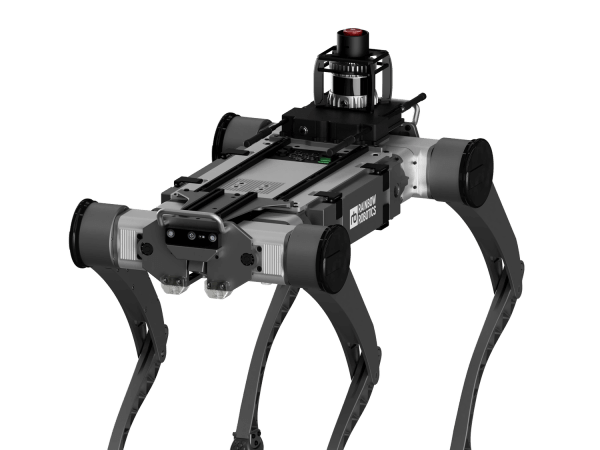

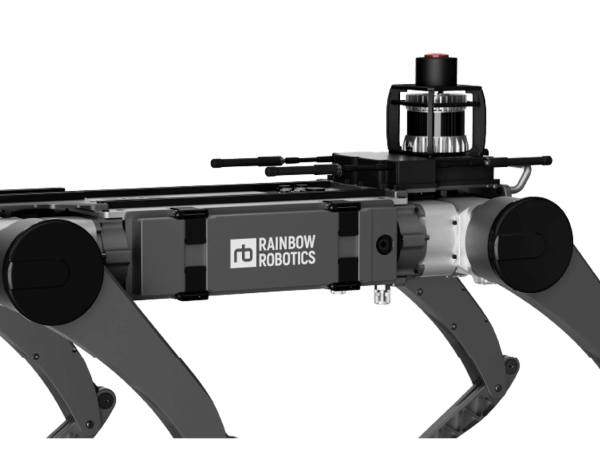

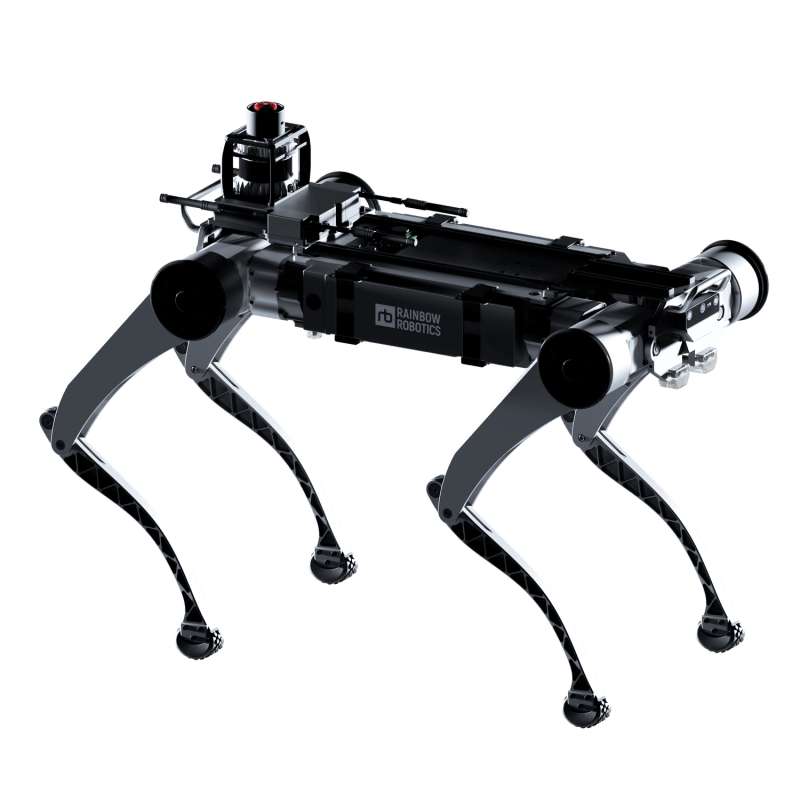

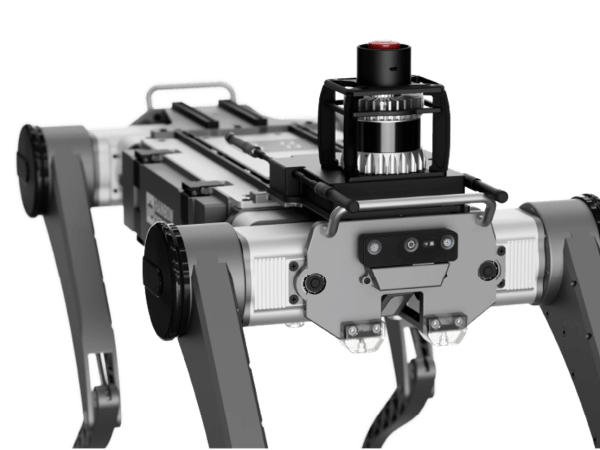

Image Gallery

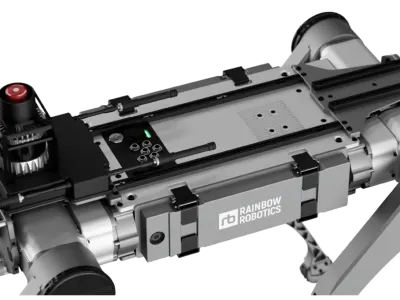

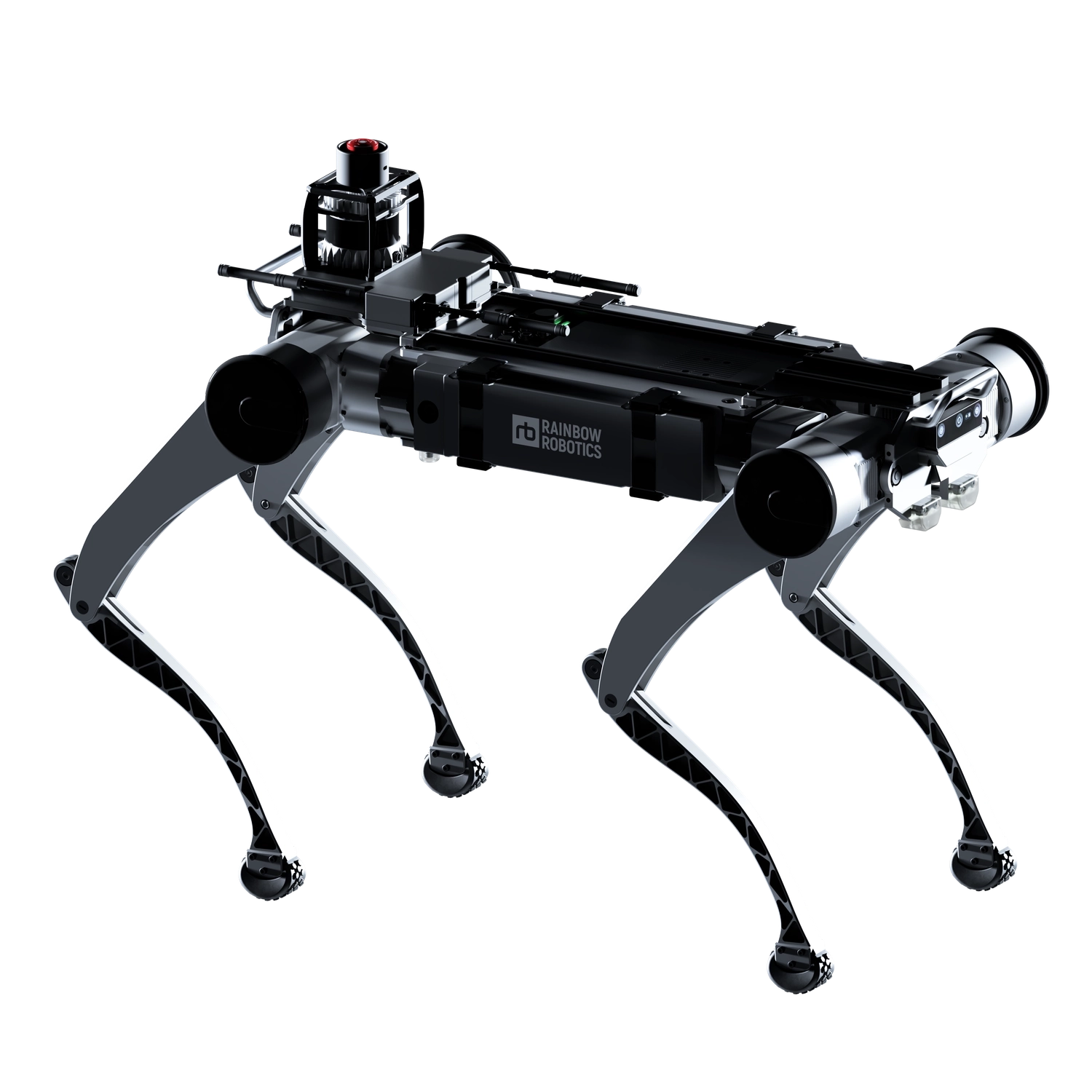

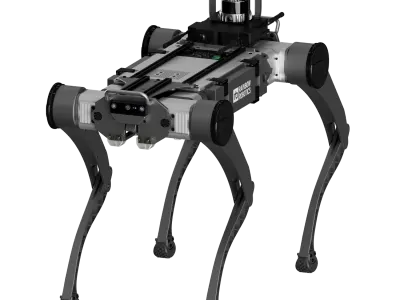

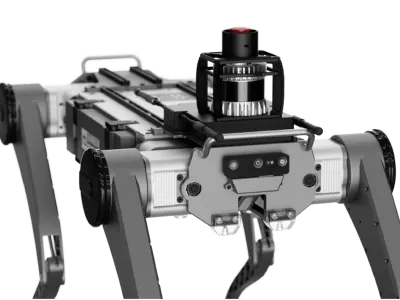

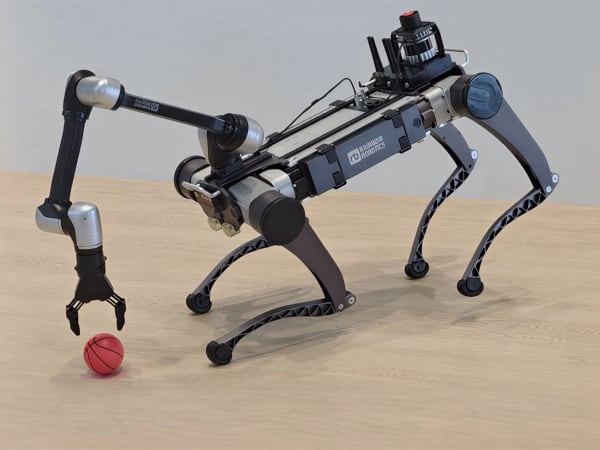

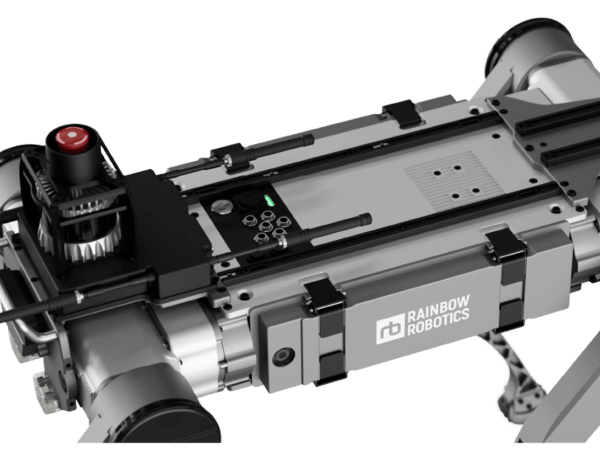

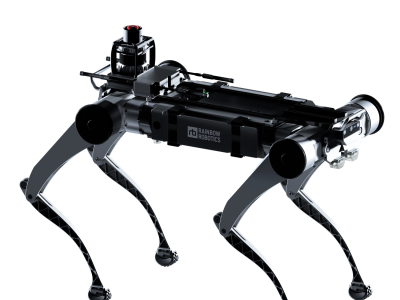

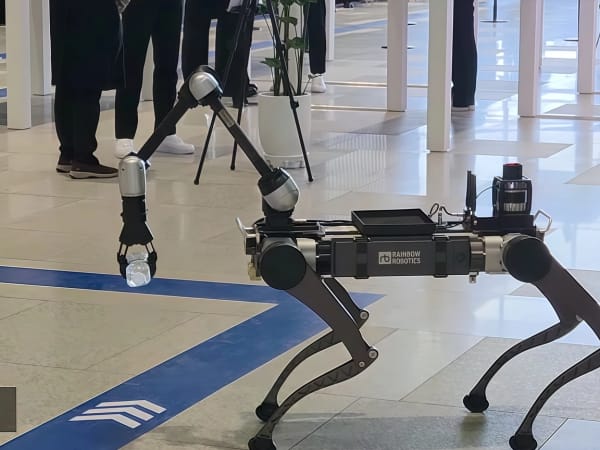

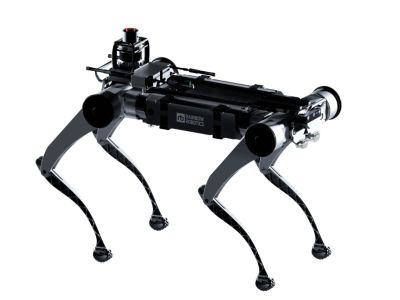

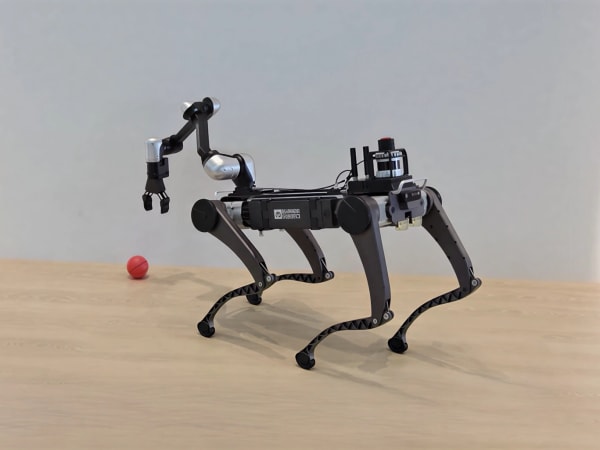

Below images are from Rainbow Robotics's official sources
Review Videos

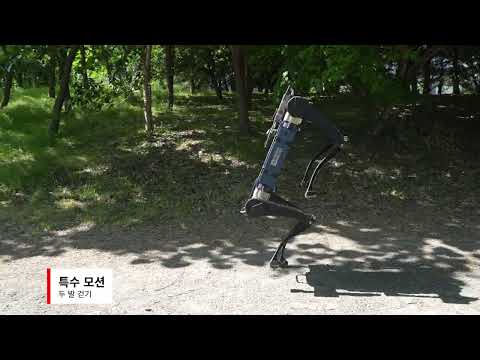

RBQ-10 Review Video ...
Click to play
RBQ-10 Review Video ...
Click to play
RBQ-10 Review Video ...
Click to play
RBQ-10 Review Video ...
Click to play
Frequently Asked Questions
1. What is RBQ-10, and what problem is it designed to solve?▼
RBQ-10 is a quadruped robot developed by Rainbow Robotics as part of the RBQ series. According to the manufacturer, it is optimized for surveillance, reconnaissance, and search missions in rough and field areas.
2. What are the main capabilities and key features of RBQ-10?▼
The robot features AI-enabled navigation for complex terrain, cameras, LiDAR, and wireless connectivity. It supports custom payloads, sensor integration, and ROS2 for autonomous missions and remote control.
3. Who is RBQ-10 built for, and which industries can benefit from it?▼
RBQ-10 targets researchers, military, and security sectors. According to Rainbow Robotics, it applies to crime prevention patrols, safety inspections, logistics, and search operations.
4. Is RBQ-10 a commercial product or still a research prototype?▼
RBQ-10 serves as a development platform for research and field deployment. The manufacturer positions the RBQ series for practical missions like patrol and reconnaissance.
5. Is RBQ-10 currently available for purchase?▼
Availability details for RBQ-10 are provided upon request from Rainbow Robotics. The company offers quotes for RBQ series robots through official channels.
6. How does RBQ-10 perform in real-world environments and rough terrain?▼
According to demonstrations, RBQ-10 navigates uneven terrain using blind locomotion controllers. It is equipped to handle challenging environments with AI-enabled mobility.
7. When was RBQ-10 announced or officially launched?▼
RBQ-10 appeared in technical demonstrations around 2025. The RBQ series catalog was released by Rainbow Robotics prior to that period.
8. How is RBQ-10 different from other robot dogs in the same category?▼
RBQ-10 emphasizes field operations readiness with integrated LiDAR, cameras, and SDK support. According to the manufacturer, it prioritizes surveillance and rough-terrain walking over general industrial tasks.
9. Does RBQ-10 support third-party software development or SDKs?▼
Yes, RBQ-10 provides a flexible SDK-based environment with ROS2 support. It enables custom development, AI frameworks, and sensor integration per manufacturer documentation.
10. What is the future roadmap or planned upgrades for RBQ-10?▼
Rainbow Robotics has announced plans to enhance performance, with specifications subject to updates. The company aims to expand applications in autonomous missions and terrain navigation.
