🐕 Robot Dog• commercial• large

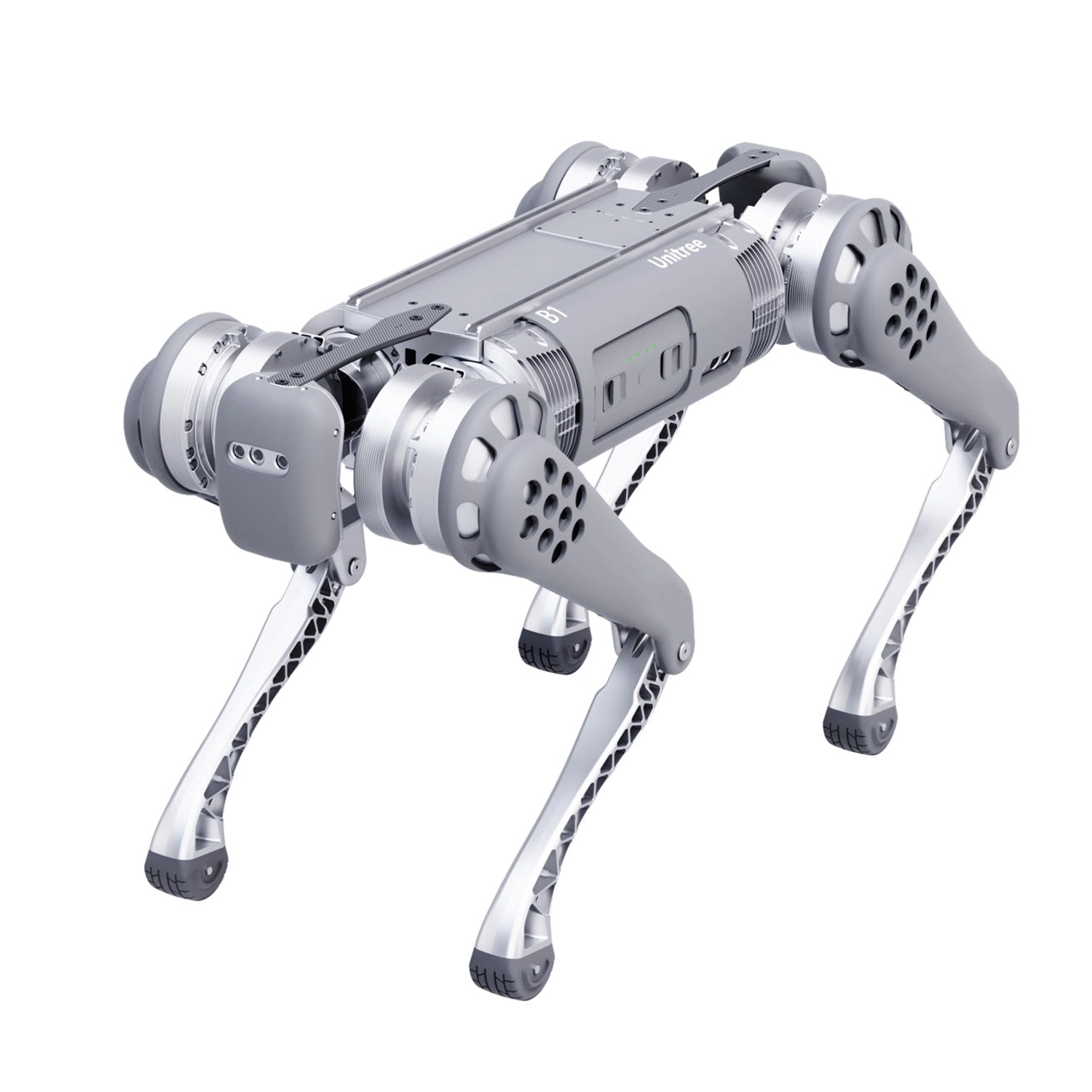

Unitree B1

by Unitree Robotics

Released: 2022

💰 USD 100,000

The Unitree B1 is an industrial-grade quadruped robot designed for demanding applications in agriculture, industrial operations, security patrols, surveys, exploration, and public rescue. With its IP67/IP68 waterproof rating, the B1 operates reliably in all-weather conditions including heavy rain and water immersion up to 1.2 meters. The robot features exceptional load capacity with a maximum standing payload of 80 kg and continuous walking load of 20 kg, making it suitable for cargo delivery and logistics in challenging terrain. Equipped with 12 degrees of freedom (3 per leg), advanced force control technology, and five Intel RealSense D430 depth cameras, the B1 demonstrates superior obstacle-crossing abilities, can climb stairs with 20 cm step heights, traverse slopes up to 35 degrees, and achieve speeds of 1.2-1.8 m/s. Its industrial-grade servo motors deliver 210 Nm maximum torque at the knee joints, enabling complex movements including jumps and backflips. The B1 combines durability, mobility, and computational power through its Intel i5-1135G7 processor and three Jetson Xavier NX platforms, making it a versatile solution for industrial automation and emergency response scenarios.

1.8 m/s

Max Speed

Total DOF

120 min

Runtime

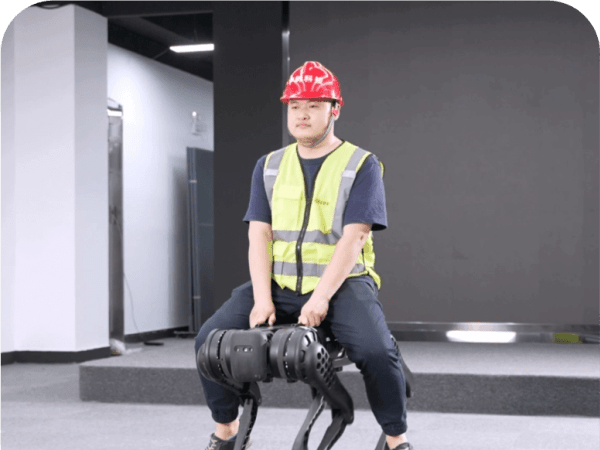

80 kg

Max Payload

Full Specifications

Physical Design

Body Length1126 mm

Standing Height636 mm

Body Width467 mm

Weight50 kg

Number of Legs4

Total DOF12

DOF Per Leg3

MaterialsHigh-strength aluminum alloy, carbon fiber, and wear-resistant composite metals

Locomotion & Gait

Supported Gaitswalk, trot, jump, backflip, stair-climbing, slope-climbing

Max Speed1.8 m/s

Max Climb Angle35°

Vertical Leap0.5 m (Impact-safe drop height) m

Max Step Height20 cm

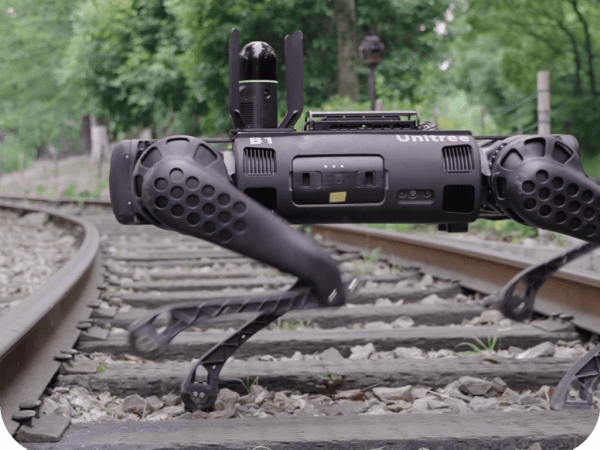

Terrain Capabilitiesstairs, slopes, rough terrain, ruins, railway tracks, wet surfaces, underwater

Actuation System

Actuator Typeindustrial-grade servo motors

TransmissionIntegrated planetary gearbox.

Compliancecompliant

Payload & Manipulation

Max Payload80 kg

Manipulator Armno

Arm DetailsSensing & Perception

Sensing & Perception

LiDAROptional (Supports 16/32-line 3D LiDAR expansion).

Depth Cameras5× Intel RealSense D430 depth cameras

IMUIntegrated high-precision IMU.

GPSyes

Obstacle Detectionmachine vision using depth cameras for autonomous navigation and obstacle avoidance

Tactile Sensorsfoot end force sensors

Autonomy & Navigation

Autonomous Navyes

SLAMVisual-LiDAR SLAM (supporting 3D environment mapping).

Remote Controlyes, approximately 100 m in open space

TeleoperationBluetooth controller with joysticks and button combinations for movement control

Control & Software

CommunicationBluetooth, 4G, 5G, Gigabit Ethernet, RS485, USB, CAN

ROS SupportYes (Full ROS1/ROS2 support)

SDK/APIUnitree SDK (C++/Python).

SimulationGazebo, MuJoCo, and NVIDIA Isaac Sim.

Control Modesstatic standing, ordinary walking mode, obstacle walking mode with 3-axis attitude and 3-axis position control

Onboard ComputeIntel i5-1135G7 main CPU, 3× Jetson Xavier NX sensing/calculation platforms

Power & Battery

Battery Capacity932.4 Wh

Runtime120 min

Charging Time60 min

Power Sourcebattery

Reliability & Safety

IP RatingIP67 standard, IP68 optional

Operating Temp-5 to 45

CertificationsCE, FCC, and RoHS compliant.

Emergency StopRemote hardware E-Stop and software fall-protection triggers.

Applications

Use Casescargo delivery, agriculture, industrial operations, security patrols, surveys, exploration, public rescue, emergency response

Industriesagriculture, industry, security, rescue operations

Commercial

PriceUSD 100,000

Order Lead Time4 – 8 weeks

Warranty1-year limited warranty; excludes damage from "unauthorized modification."

SupportGlobal technical support via email/distributors.

CountriesChina, USA, EU, Japan, and Australia.

Other Notable Features

Autonomous charging capability, wireless vector positioning technology, security and police mounting platforms available, maximum step height of 20 cm for stair climbing, fording depth up to 1.2 m, 12 joints with 210 Nm maximum torque at knee joints, can perform complex movements including jumps and backflips, force control technology enables excellent dynamic characteristics and perfect balancing

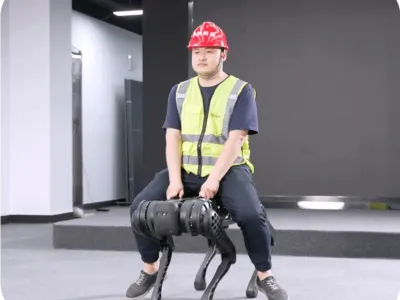

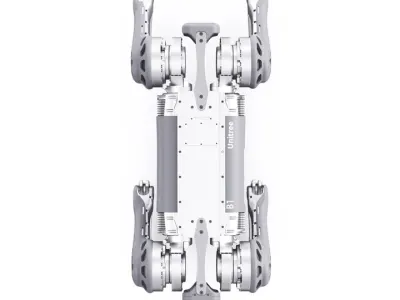

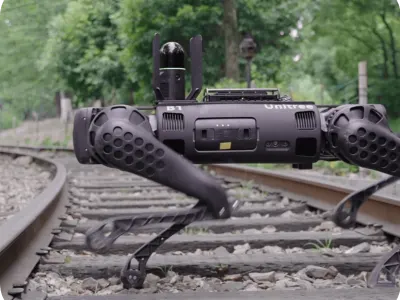

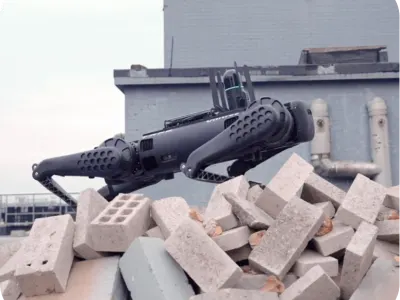

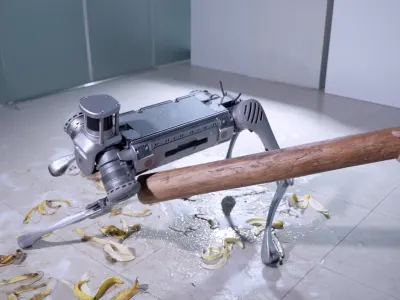

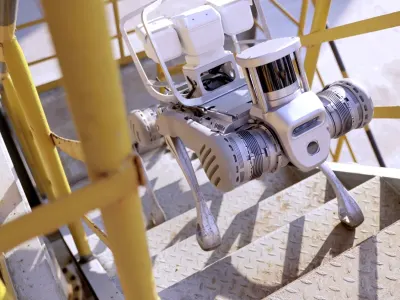

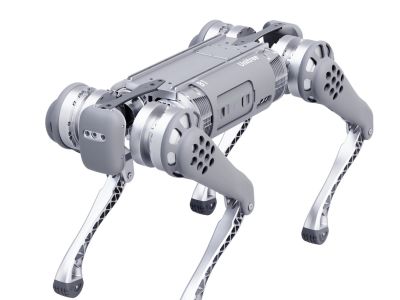

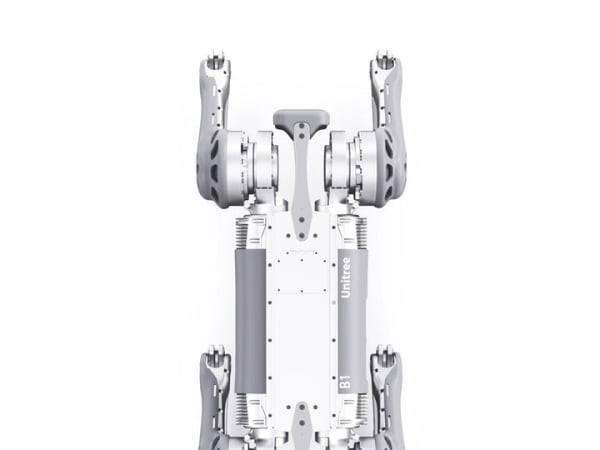

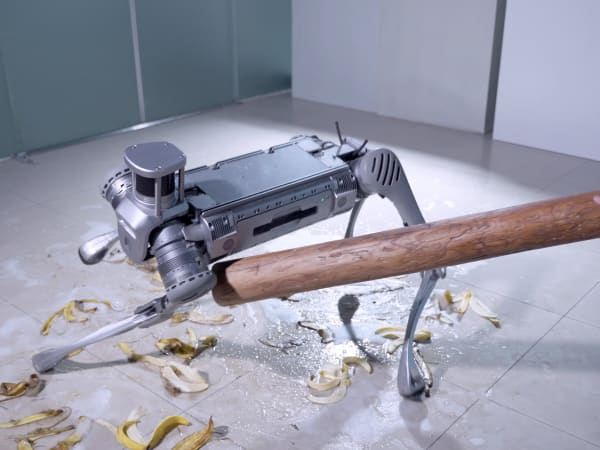

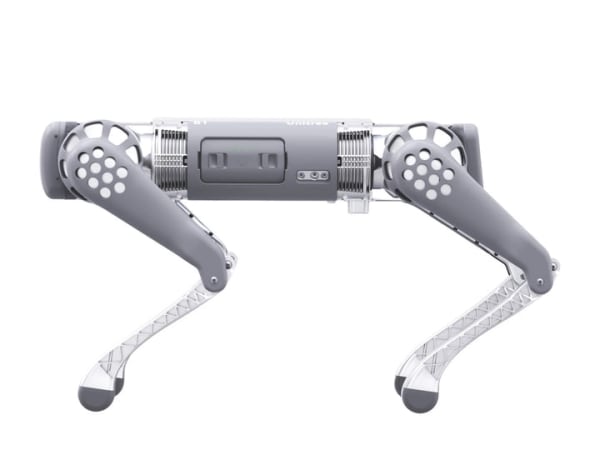

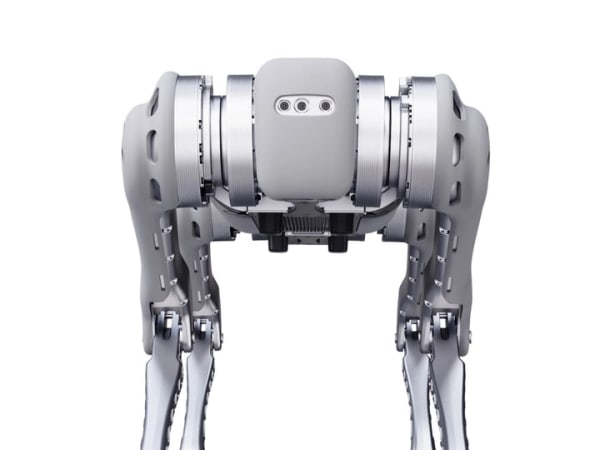

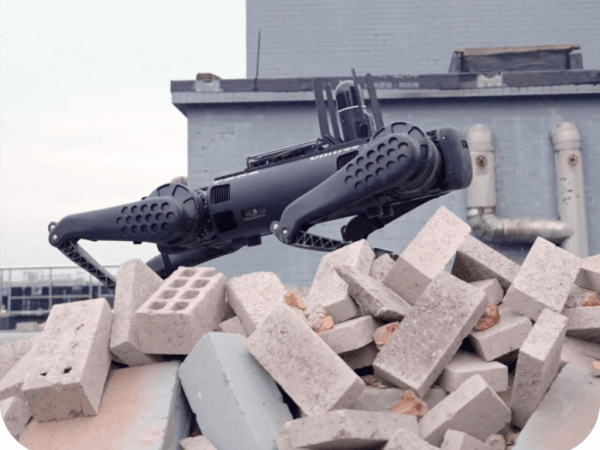

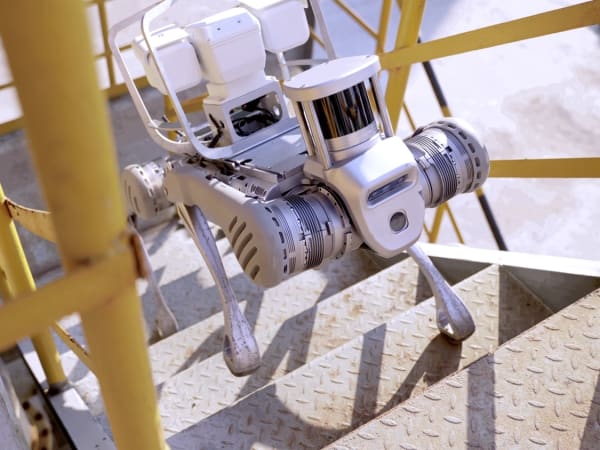

Image Gallery

Below images are from Unitree Robotics's official sources

Review Videos

Unitree B1 Review Vi...

Click to play

Unitree B1 Review Vi...

Click to play

Frequently Asked Questions

1. What is Unitree B1, and what problem is it designed to solve?▼

Unitree B1 is an industrial-grade quadruped robot developed by Unitree Robotics. It is designed to address challenges in accessing difficult terrains for tasks like inspection, delivery, and rescue in complex environments.

2. What are the main capabilities and key features of Unitree B1?▼

Unitree B1 features multi-dimensional sensing with depth cameras, all-weather operation via IP67/IP68 protection, and load-carrying ability. According to Unitree Robotics, it supports obstacle navigation, stair climbing, and expansion interfaces for industrial applications.

3. Who is Unitree B1 built for, and which industries can benefit from it?▼

Unitree B1 targets industrial users requiring robust mobility. Industries such as agriculture, security patrols, surveys, exploration, and public rescue can benefit from its terrain adaptability and payload capacity.

4. Is Unitree B1 a commercial product or still a research prototype?▼

Unitree B1 is a commercial product offered by Unitree Robotics for industrial applications. It includes standard accessories like a battery, charging station, and remote controller.

5. Is Unitree B1 currently available for purchase?▼

Yes, Unitree B1 is listed for sale through Unitree Robotics and authorized distributors. Pricing and availability are managed via official channels.

6. How does Unitree B1 perform in real-world environments and rough terrain?▼

Unitree B1 handles rough terrain, stairs, and slopes in various weather conditions due to its force control and sensing. According to the manufacturer, it adapts to ruins, tracks, and water submersion up to specified depths.

7. When was Unitree B1 announced or officially launched?▼

Unitree Robotics has presented Unitree B1 as part of its industrial quadruped lineup in product documentation and sales listings. Specific announcement dates are detailed in company releases.

8. How is Unitree B1 different from other robot dogs in the same category?▼

Unitree B1 emphasizes industrial protection, high payload in standing and walking modes, and multiple computing units. According to Unitree Robotics, it prioritizes all-weather reliability and expansion for heavy-duty tasks over consumer models.

9. Does Unitree B1 support third-party software development or SDKs?▼

Unitree B1 provides external interfaces including Ethernet, USB, and CAN ports for integration. It supports development via its computing platform, as noted in manufacturer documentation.

10. What is the future roadmap or planned upgrades for Unitree B1?▼

Unitree Robotics has announced plans for enhancements in perception, networking, and protection levels. The company aims to expand applications through optional upgrades like higher IP ratings.
