🐕 Robot Dog• commercial• medium
PUDU D5
by Pudu Robotics
Released: 2025
💰 USD 38,000 – 45,000

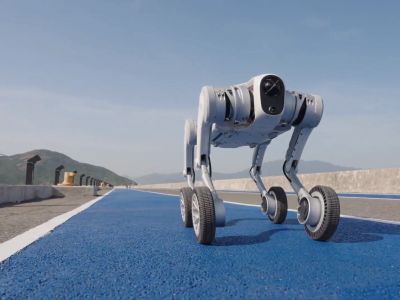

The PUDU D5 is an industry-grade autonomous quadruped robot designed for demanding industrial and outdoor environments, including warehouses, construction sites, inspection areas, and rough terrains. It features hybrid leg-wheel locomotion for agile mobility, reaching speeds up to 5 m/s on flat ground, climbing 30° slopes, and handling continuous 25 cm steps or stairs. Equipped with dual 192-line LiDARs and four fisheye cameras for 360° perception, it enables real-time SLAM, 3D reconstruction, dynamic obstacle avoidance, and centimeter-level localization. Powered by NVIDIA Orin and RK3588 processors delivering up to 275 TOPS, the D5 supports autonomous navigation, intelligent following, voice/gesture interaction, and payload transport up to 30 kg. Its robust aluminum frame with IP67 rating and wide temperature tolerance ensures reliability in harsh conditions, targeting inspection, delivery, security, and research applications across energy, manufacturing, and logistics sectors.
5 m/s (11.2 mph) m/s
Max Speed
12+
Total DOF
150 min
Runtime
30 kg
Max Payload
Full Specifications
Physical Design
Body Length900 mm
Standing Height572 mm
Body Width543 mm
Weight61 kg
Number of Legs4
Total DOF12+
DOF Per Leg3
MaterialsHigh-strength aluminum and industrial-grade composites
Locomotion & Gait
Supported Gaitstrot, walk, stair-climbing, slope traversal
Max Speed5 m/s (11.2 mph) m/s
Max Climb Angle30° (Ascent); 45° (Descent)°
Vertical LeapFocus on stable traversal m
Max Step Height25 cm (Stairs) to 30 cm (Single obstacles) cm
Terrain Capabilitiesstairs, slopes, gravel, grass, mixed terrain
Actuation System
Actuator TypeHigh-torque brushless DC motors with closed-loop torque control
TransmissionDirect-drive and high-precision gearboxes
Compliancecompliant
Payload & Manipulation
Max Payload30 kg
Manipulator Armno
Arm DetailsModular interface for inspection payloads, thermal cameras, and cargo crates
Sensing & Perception
LiDARdual 192-line LiDAR
Depth CamerasFour 120° wide-angle fisheye cameras (360° FOV)
IMUIntegrated IMU-driven stabilization
GPSyes
Obstacle DetectionLiDAR + cameras, real-time dynamic avoidance
Tactile SensorsClosed-loop torque feedback for ground interaction
Autonomy & Navigation
Autonomous Navyes
SLAMSLAM-based mapping and path planning
Remote Controlyes, with remote control system
Teleoperationremote control with live panoramic views
Control & Software
CommunicationWiFi (2.4 GHz and 5 GHz), Bluetooth
ROS SupportYes (ROS 1 / ROS 2 compatible for research/development)
SDK/APIPUDU Open SDK for secondary development
SimulationGazebo, MuJoCo, Isaac Sim
Control ModesAutonomous, Intelligent Follow, Manual/Remote, Voice/Gesture
Onboard ComputeNVIDIA Jetson Orin AGX (64GB) + RK3588 (Dual-processor; 275 TOPS)
Power & Battery
Battery Capacity1000 Wh
Runtime150 min
Charging Time120 min
Power Sourcebattery
Reliability & Safety
IP RatingIP67
Operating Temp-20°C to 55°C (Cold-start supported at -10°C)
CertificationsCE, ISO standards (Industrial compliant)
Emergency StopIntegrated physical and software-based E-stops
Applications
Use Casesinspection, security, delivery, payload transport, search and rescue
Industriesenergy, manufacturing, logistics, construction, research
Notable DeploymentsMetro systems and industrial campuses (Pilot sites)
Commercial
PriceUSD 38,000 – 45,000
Order Lead Time4–8 weeks
Warranty1-Year standard (Extended 3-Yr/5-Yr options available)
SupportLifetime local technical support; dealer-based maintenance
CountriesChina
Other Notable Features
hybrid leg-wheel mobility, voice and gesture commands, intelligent follow mode

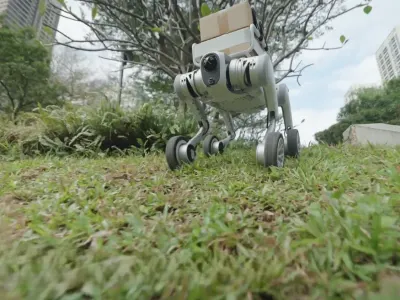

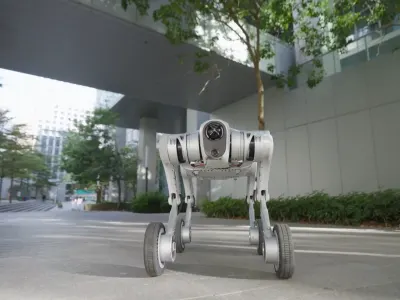

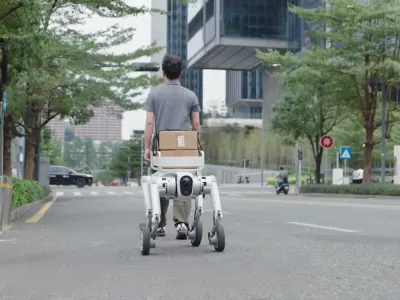

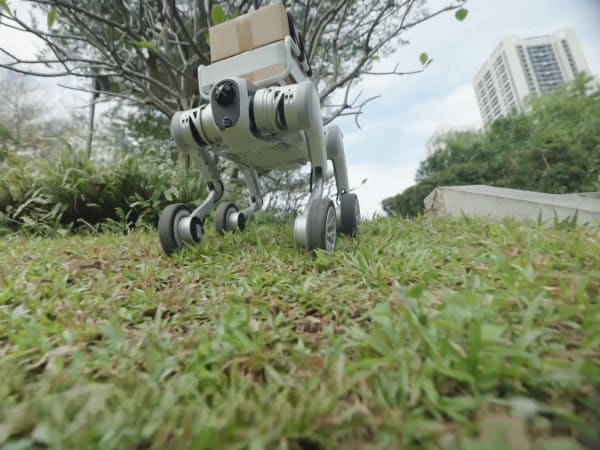

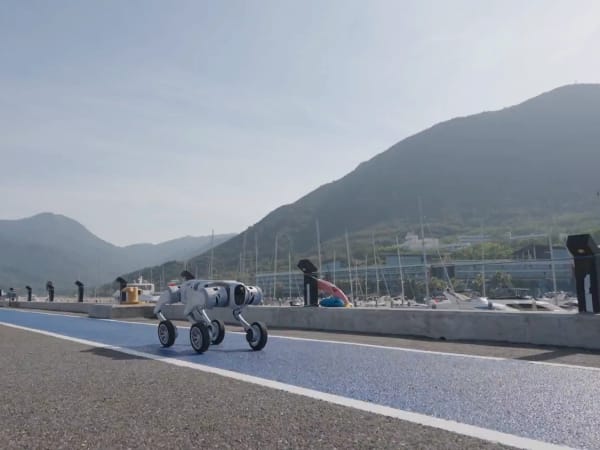

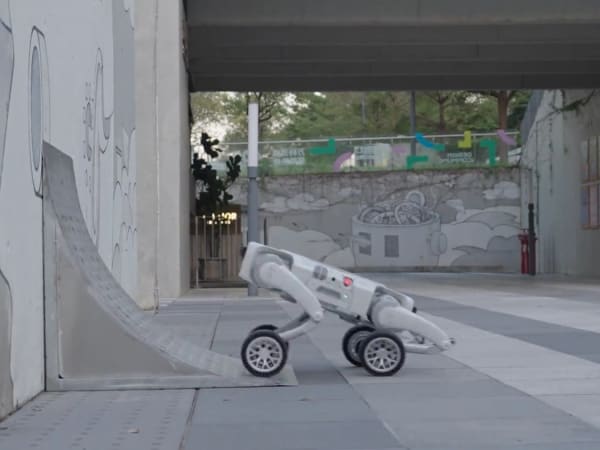

Image Gallery

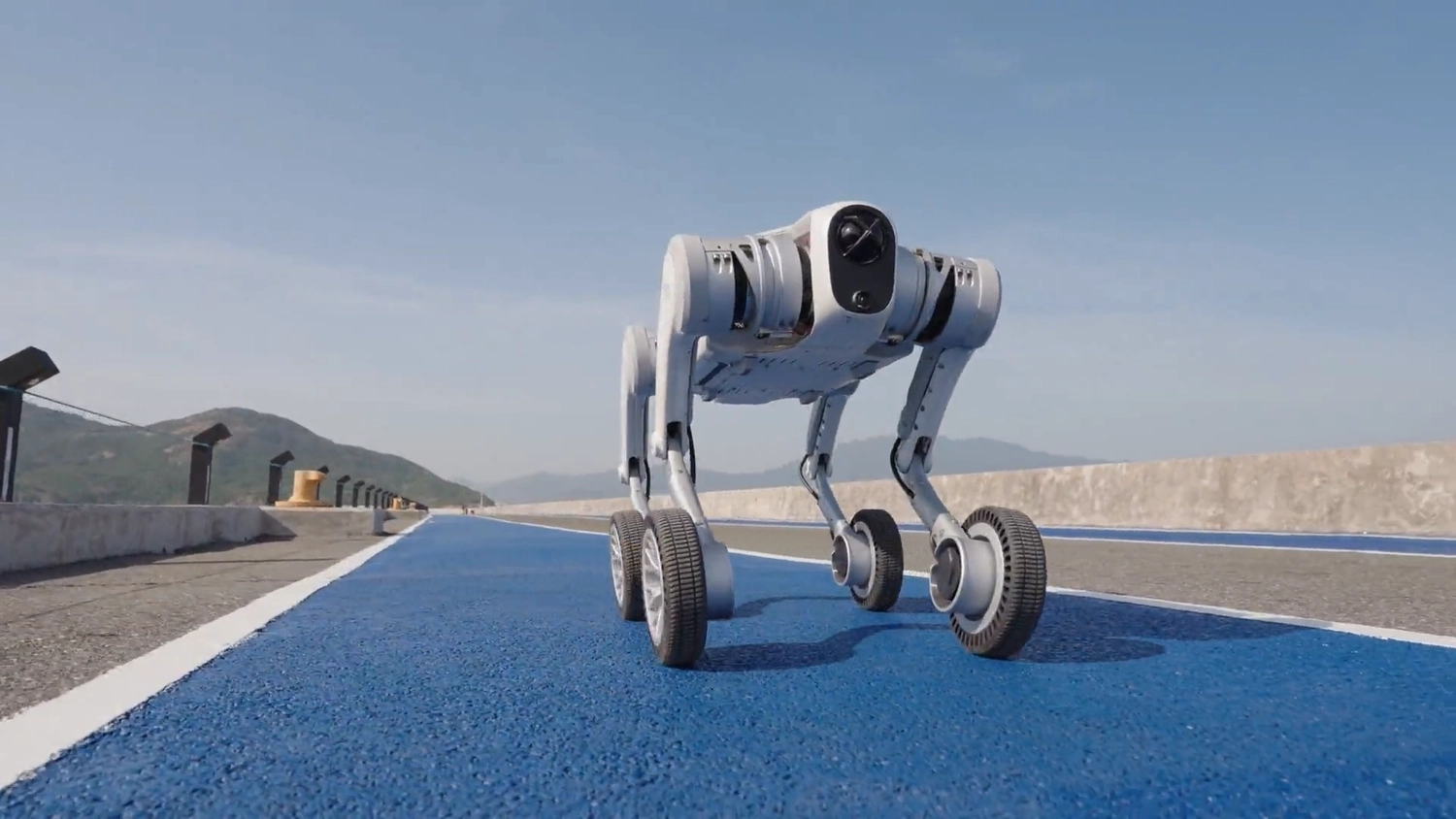

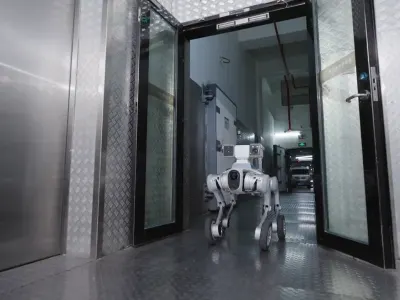

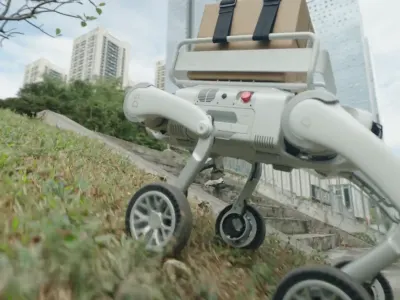

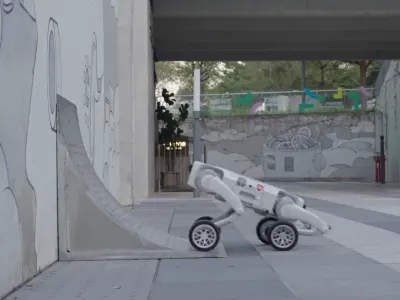

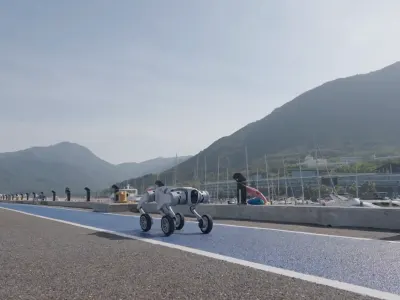

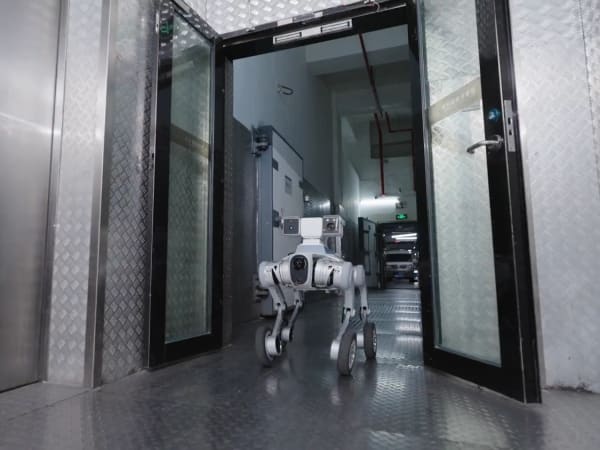

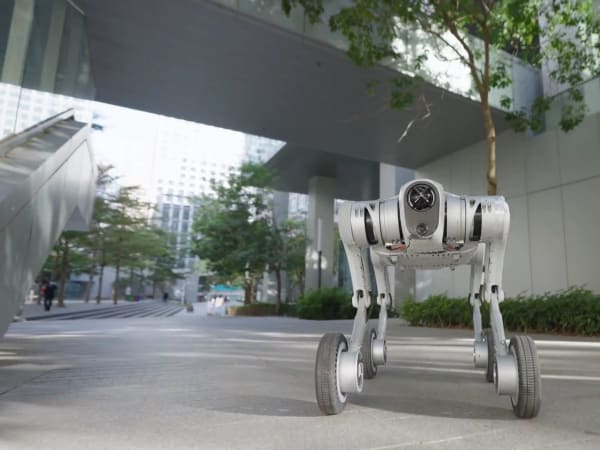

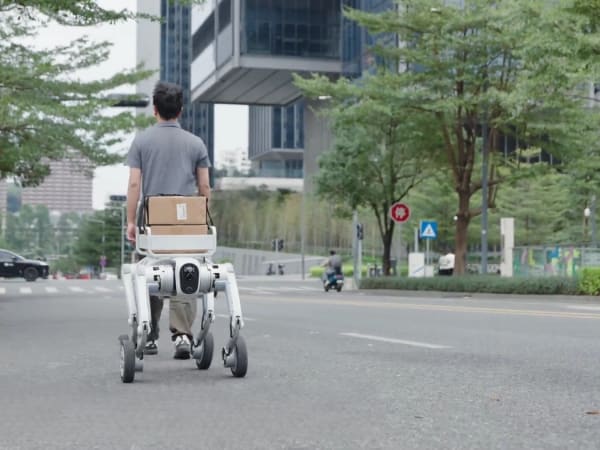

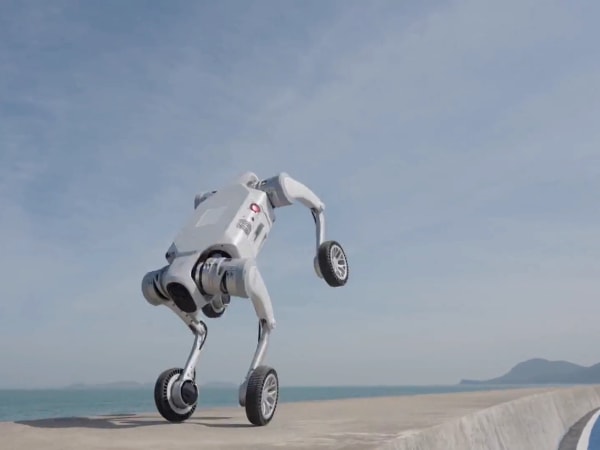

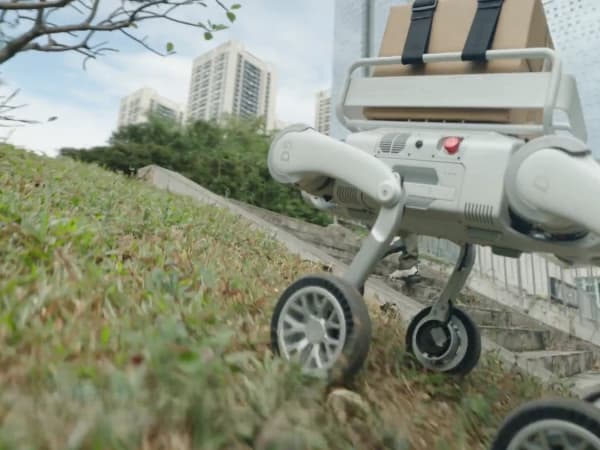

Below images are from Pudu Robotics's official sources
Review Videos
PUDU D5 Review Video...
Click to play
PUDU D5 Review Video...
Click to play

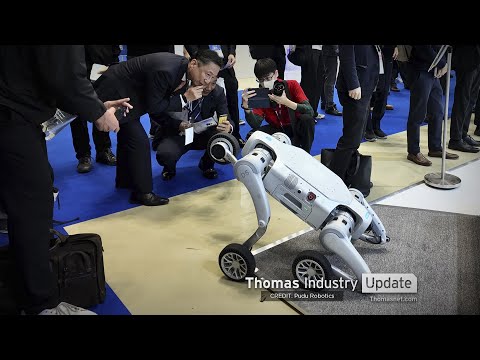

PUDU D5 Review Video...
Click to play
Frequently Asked Questions
1. What is PUDU D5, and what problem is it designed to solve?▼
PUDU D5 is an autonomous quadruped robot developed by Pudu Robotics. According to the manufacturer, it addresses navigation challenges in uneven terrain for tasks like inspection and delivery in industrial settings.
2. What are the main capabilities and key features of PUDU D5?▼
The robot features legged mobility, 360-degree perception with LiDAR and cameras, and modular payloads. Pudu Robotics states it supports real-time mapping, obstacle avoidance, and operations in diverse environments.
3. Who is PUDU D5 built for, and which industries can benefit from it?▼
It targets users in warehouses, industrial sites, campuses, and remote facilities. According to Pudu Robotics, sectors like security, logistics, and inspection can utilize it for autonomous patrols and transport.
4. Is PUDU D5 a commercial product or still a research prototype?▼
PUDU D5 is an industry-grade commercial product. The manufacturer positions it as a production-ready autonomous quadruped for real-world applications, distinct from research prototypes.
5. Is PUDU D5 currently available for purchase?▼
Yes, PUDU D5 is listed as available through distributors. Pudu Robotics debuted the series at iREX 2025, indicating commercial rollout for industrial users.
6. How does PUDU D5 perform in real-world environments and rough terrain?▼
According to Pudu Robotics, it handles mixed terrain, slopes, and obstacles where wheeled robots falter, using legged design for reliable progress in warehouses and outdoor sites.
7. When was PUDU D5 announced or officially launched?▼
Pudu Robotics announced and debuted the D5 Series at iREX 2025 in Tokyo on December 3, 2025. It marks the company's second quadruped robot line.
8. How is PUDU D5 different from other robot dogs in the same category?▼
Pudu Robotics describes it as integrating high compute with all-terrain legged mobility, offering enhancements in motion control over its prior model. It emphasizes modular payloads for varied missions.
9. Does PUDU D5 support third-party software development or SDKs?▼
The manufacturer highlights its high-performance compute platform, which enables real-time processing. It supports intuitive controls like hand gestures, suggesting openness to custom integrations.
10. What is the future roadmap or planned upgrades for PUDU D5?▼
Pudu Robotics has announced the D5 Series as a next-generation line with ongoing advancements in intelligence and components. The company plans expansions in both legged and wheeled variants.
